215-1288 Rev. R; ECM 11-11-008
© 2011 Bradley Corporation
Page 1 of 10
3/30/11

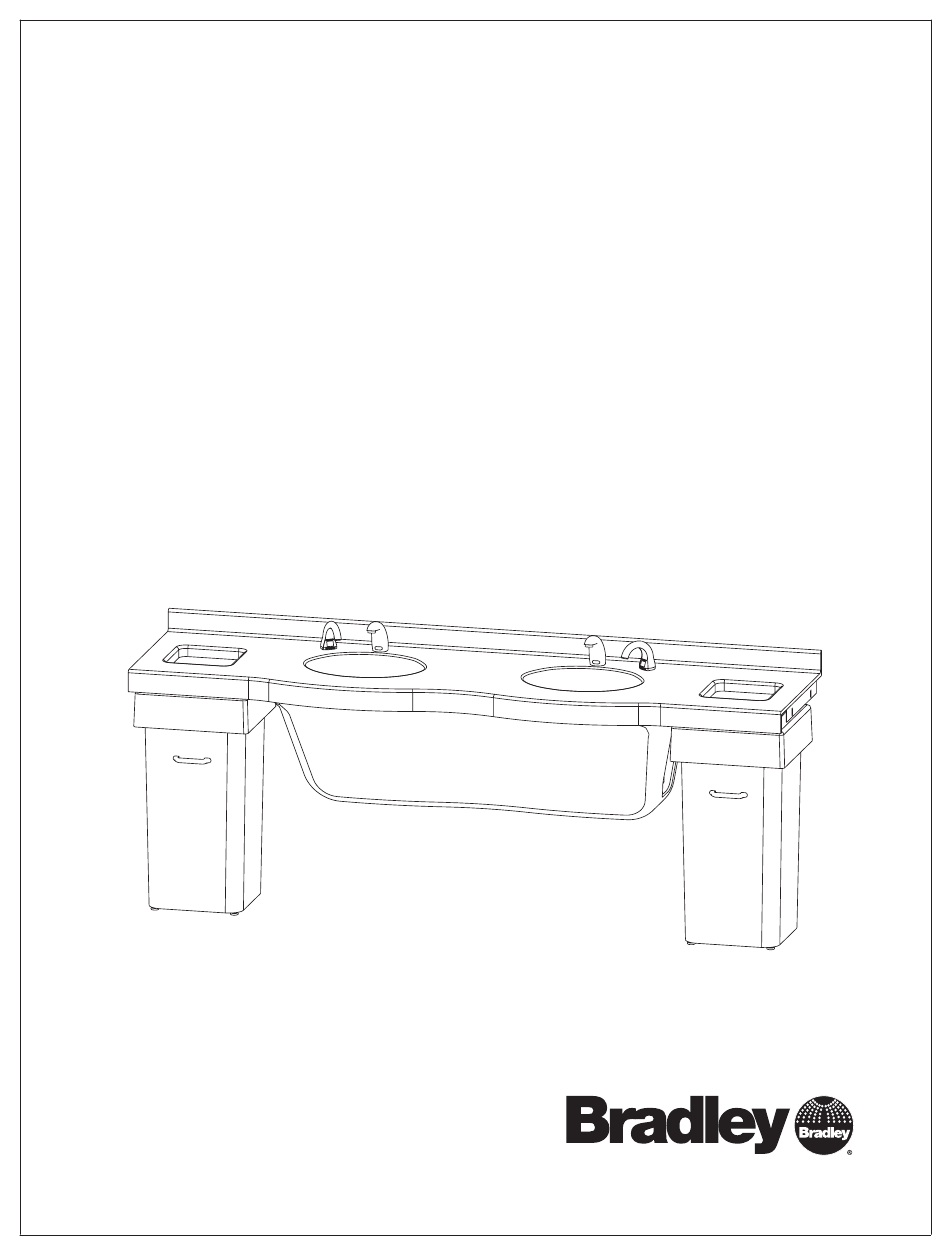

Installation
LD3060
OmniDeck™ - 3000 Series
Table of Contents
Pre-Installation information . . . . . . . . . . . . . . . . .2
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . .2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OmniDeck Installation . . . . . . . . . . . . . . . . . . . . .7
Supplies, Drain and P-trap . . . . . . . . . . . . . . . . . .8
Trap Cover Installation . . . . . . . . . . . . . . . . . . . . .8
Cleaning and Maintenance . . . . . . . . . . . . . . . . .9
Troubleshooting Vernatherm™ TMV . . . . . . . . .10
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251 5817
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley OmniDeck 3000 Series
Summary of Contents for Bradley OmniDeck 3000 Series
-
Page 1: Table Of Contents
Troubleshooting Vernatherm™ TMV ..10 215-1288 Rev. R; ECM 11-11-008 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2011 Bradley Corporation PHONE 800.BRADLEY (800.272.3539) FAX 262.251 5817 Page 1 of 10 3/30/11 bradleycorp.com... -
Page 2: Pre-Installation Information
(2) ¼" wall anchors (to mount optional mixing valve/bracket) • ½" NPT hot/cold or tempered supply piping • 1½" NPT drain piping • 110 volt electrical outlet for optional 110/24 VAC plug-in transformer, if required Bradley Corporation • 215-1288 Rev. R; ECM 11-11-008 3/30/11... -
Page 3: Components
Coal (186-1544B) Angle Bracket Hardware Bracket Hardware (two (two each required to attach each required to attach bracket to OmniDeck) bracket to OmniDeck) Screw (160-120) Screw (160-120) Washer (142-002AZ) Washer (142-002AZ) Bradley Corporation • 215-1288 Rev. R; ECM 11-11-008 3/30/11... - Page 4 Plastic (S65-287) Soap Dispenser (6324) (P18-054) Vernatherm™ Mixing Valve (140-934) (S59-4004XS) (S01-524) (S45-2082) Drain Assembly Strainer Tempered Line (S45-2081) (269-1839A) (S27-102) Twin Tee Ell (111-079) (269-1735) P-trap (S29-094) Waste Arm (111-080) Bradley Corporation • 215-1288 Rev. R; ECM 11-11-008 3/30/11...
-
Page 5: Dimensions
7½' (2286mm) Front View 3" (76mm) 3" (76mm) 37" (940mm) 54" (1372mm) 8" (203mm) ADA Optional Trap Cover with Soap Access Side View Opening 34" (864mm) 31" (787mm) 29" (737mm) 13½" (343mm) Bradley Corporation • 215-1288 Rev. R; ECM 11-11-008 3/30/11... -
Page 6: Rough-Ins
Side Wall Mounting Locations for Angle Brackets (standard height mounting) 5¾" 10" ¼" Wall Anchors (254mm) (146mm) (Supplied by Installer) Side Wall Mounting Locations (If Required) 32" Back (813mm) Wall Finished Floor Bradley Corporation • 215-1288 Rev. R; ECM 11-11-008 3/30/11... -
Page 7: Omnideck Installation
OmniDeck on the mounting brackets and secure the deck with the hardware provided. For alcove wall only, secure the angle bracket to the alcove wall after installation of the OmniDeck is complete. Bradley Corporation • 215-1288 Rev. R; ECM 11-11-008 3/30/11... -
Page 8: Supplies, Drain And P-Trap
Fiber Washer Cold Cold Mixing Valve Tempered Supply Trap Cover Installation Standard trap cover is shown. Optional V2 trap cover is similar. 10-24 x ½" FL Panel Fasteners with Finish Washer Bradley Corporation • 215-1288 Rev. R; ECM 11-11-008 3/30/11... -
Page 9: Cleaning And Maintenance
Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days. -
Page 10: Troubleshooting Vernatherm™ Tmv
1. Ensure hot and cold supplies are connected to the mixing valve and that they have sufficient water flow. water flow. debris have built up in 2. Remove and clean the strainer. If it needs to be replaced, Contact your Bradley representative to order the valve or Bradley part no. 173-028. strainer.
