Your new tool has been engineered and manufactured to WEN's highest standards for dependability, ease
of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If
you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NOTICE: Please refer to wenproducts.com for the most up-to-date instruction manual.

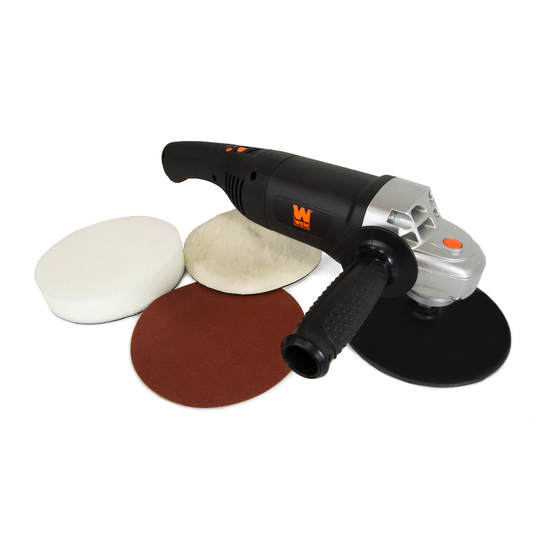

7" ELECTRIC
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
POLISHER
(M-F 8AM-5PM CST)
Model # 94810
bit.ly/wenvideo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 94810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 94810

Summary of Contents for Wen 94810

  • Page 1 WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    Assembly & Adjustments Operation Maintenance Troubleshooting Exploded View & Parts List Warranty Statement PRODUCT SPECIFICATIONS Model Number: 94810 Motor: AC 120V, 60 Hz, 10A No-Load Speed: 1000 to 3500 RPM Mounting Disc Type: 7-inch Hook & Loop Arbor Size: 5/8" - 11 TPI (Threads Per Inch) Product Dimensions: 18.1 x 7.1 x 5.5 in.

  • Page 3: Safety Introduction

    SAFETY INTRODUCTION Thanks for purchasing the WEN Polisher. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. This manual provides information regarding potential safety con- cerns, as well as helpful assembly and operating instructions. Safe operation of this tool requires that you read and understand this operator’s manual and all labels affixed to the tool.

  • Page 4: General Safety Rules

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool. WORK AREA SAFETY a) Keep work area clean and well lit.
  • Page 5 GENERAL SAFETY RULES f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 6: Safety Rules For The Polisher

    SAFETY RULES FOR THE POLISHER WARNING: Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. 1. TOOL PURPOSE. This power tool is intended to function as a polisher or sander. Operations such as grind- ing, wire brushing, or cutting-off are not recommended to be performed with this power tool.

  • Page 7: Vibration Safety

    SPECIFIC RULES FOR THE POLISHER REDUCING KICKBACK Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation.

  • Page 9: Know Your Polisher

    KNOW YOUR POLISHER Carefully unpack the tool from the packaging. Check all components and compare against the diagram below. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com.

  • Page 10: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS WARNING: To prevent injury from accidental operation, turn OFF and unplug the tool from the power source before assembling or making any adjustments to the tool. ATTACHING THE MOUNTING DISC ATTACHING THE AUXILIARY HANDLE Press and hold down the spindle lock head of the The auxiliary handle can be installed on either side of polisher to prevent the spindle from rotating.

  • Page 11: Operation

    OPERATION WARNING: To prevent serious injury, make sure all the warnings and instructions have been read and understood before operating this tool. WAXING AND POLISHING A CAR 1. Route the power cord to reach the work area without creating a tripping hazard or exposing the power cord to possible damage.

  • Page 12: Maintenance

    Have your carbon brushes inspected and replaced by a qualified service technician. Replacement carbon brushes (Part No. 94810-039) can be ordered at wenproducts.com. Only genuine WEN replacement brushes designed specifically for your tool should be used.

  • Page 13: Troubleshooting

    Inspect and replace carbon brushes as needed (see page Carbon brushes (Part No. 10) Replacement brushes (94810-039) can be ordered 94810-039) are worn. from wenproducts.com Defective motor or other inter- Stop using the tool and contact customer service at (800) nal damage.

  • Page 14: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 15 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. Self-Tapping Screw 94810-001 Polishing Plate 94810-026 ST4x55 94810-002 Output Shaft 94810-027 Stator Assembly 94810-003 Screw M5x14 Heat-Shrinkable Tube 94810-028 94810-004 Washer Ø 5 Ø 3 94810-005 Connecting Plate...
  • Page 16 LIMITED TWO YEAR WARRANTY WEN Products is committed to build tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.

Table of Contents
