Valor LX1 Quick Start Manual

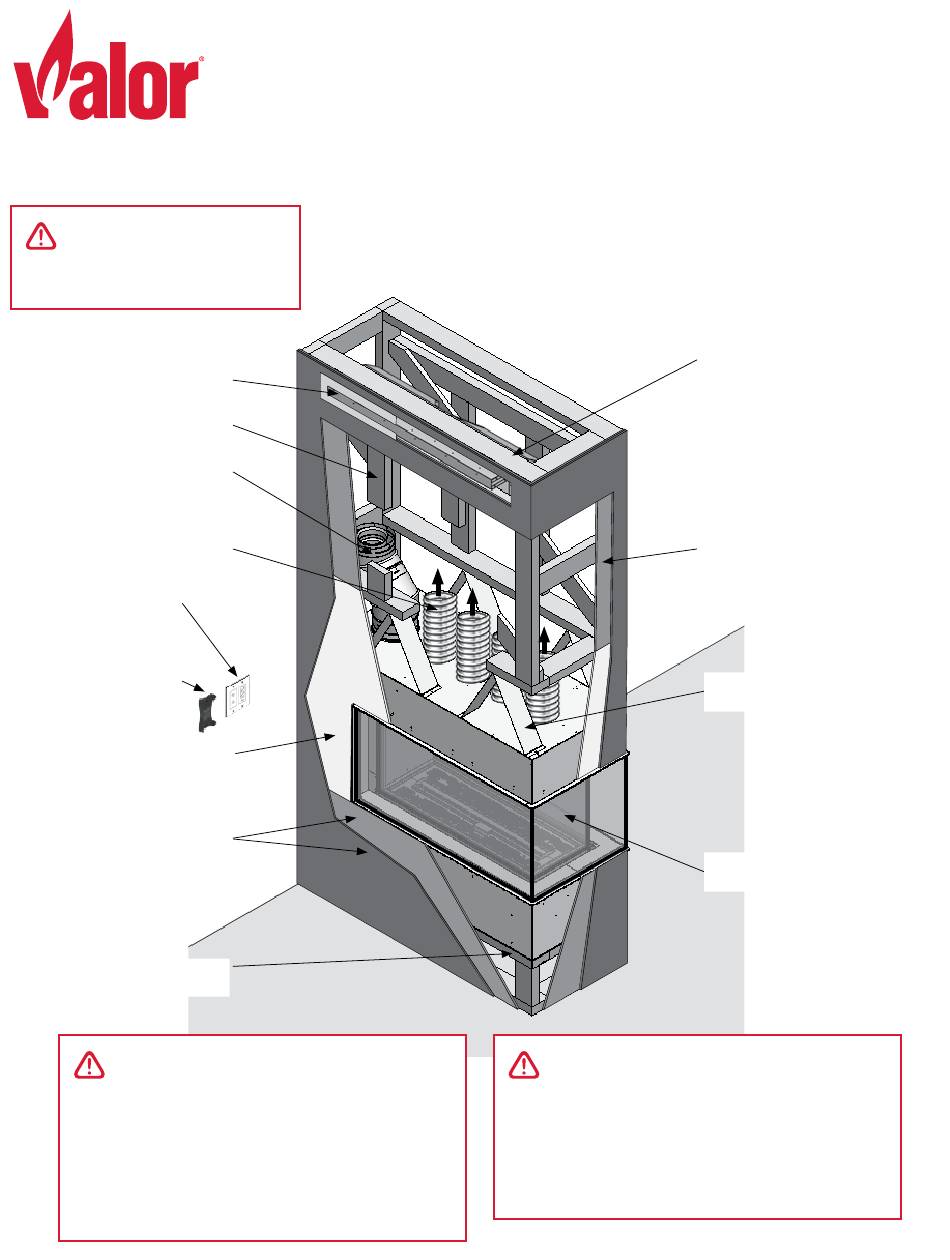

Overview - Wood Framing
WARNING
Ensure weight of wall above is
NOT carried by the appliance.
HeatShift front outlet
(top and side available)
Wood framing - see
Framing Considerations
Vent collar supplied as
4 x 6-5/8" coaxial outlet (vent
may require offset to clear
HeatShift plenum above)
5" Ø HeatShift ducts (4) con-
nect to HeatShift plenum or
termination plates
Remote Battery and
Wall Switch Kit (re-
quired and supplied)
c/w 35' wire length
Remote control handset
wall holder, to be mount-
ed min. 3' away from
fireplace opening
1/2" thick non-combustible
cement board required from
bottom of window to standoff
height (not supplied)
Combustible wall finish up
to 1-1/4" thick allowed below
opening. Combustible projec-
tions must otherwise be kept
min. 4" below opening.
Wood base below fireplace
WARNING
HOT WALL SURFACES! The walls directly
above the fireplace are constructed of non-
combustible materials and, although safe,
may reach temperatures in excess of 200°F
(93°C) depending on choice of materials. Do
not touch. Finish the walls using materials
suitable for these temperatures.
LX1
Installers can implement an all-wood framing
installation for full height installations. Included
standoffs on top of the unit give minimum clear-
ance for combustible framing materials from the
top of the unit.
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel, and
so on because of the heat produced by the
fireplace. Avoid placing candles, paintings,
photos, and other items sensitive to heat
around the fireplace.
June 2019
Mandatory HeatShift
Plenum or Duct Termina-
tion plates (top). HeatShift
system ordered separately.
See also "Overview - Heat-
Shift Canopy" for other
options.
Combustible wall finish
up to 1-1/4" thick allowed
above cement board
Standoffs (4)
2100P heater
1/3
