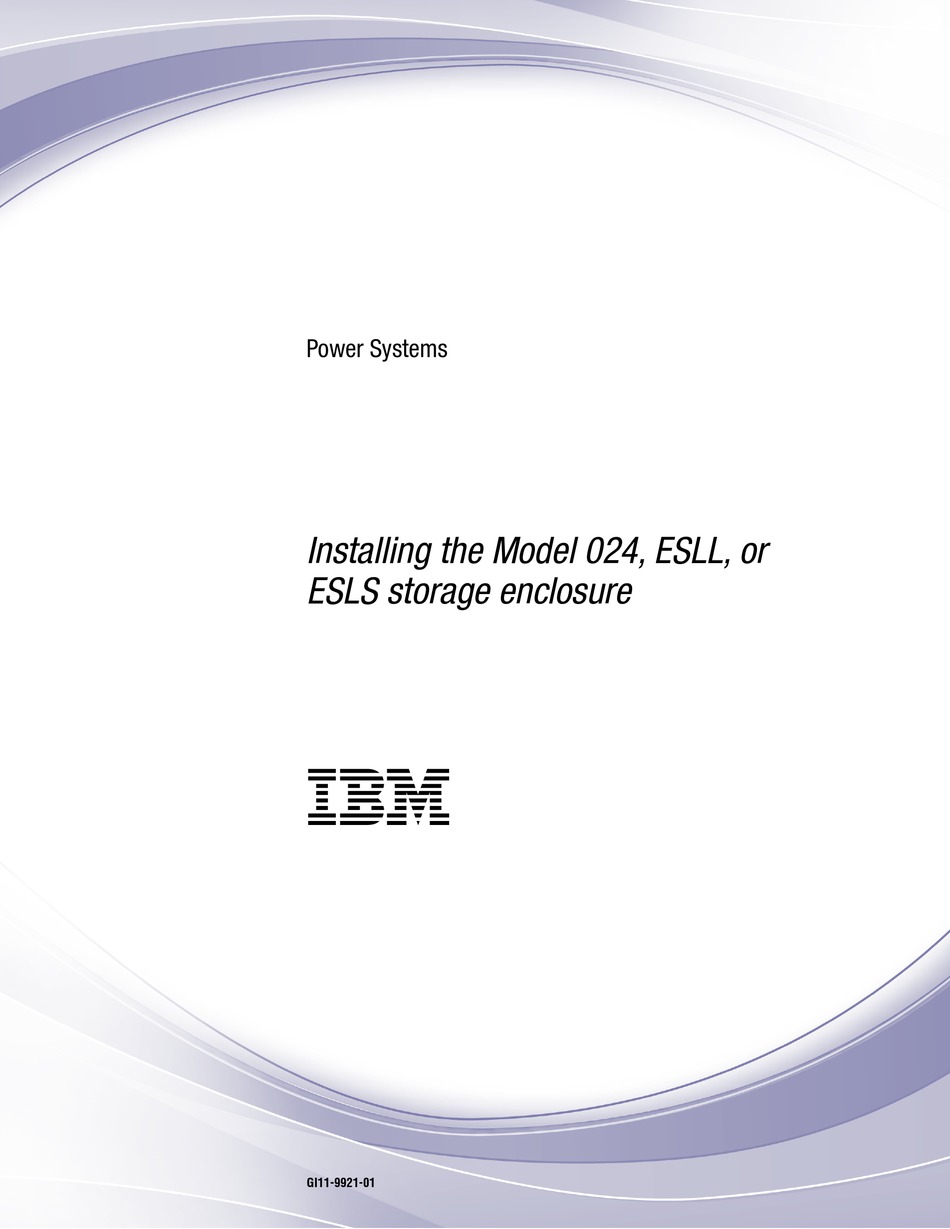

Power Systems
Installing the Model 024, ESLL, or
ESLS storage enclosure
IBM
GI11-9921-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5147-024 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBM 5147-024

Summary of Contents for IBM 5147-024

  • Page 1 Power Systems Installing the Model 024, ESLL, or ESLS storage enclosure GI11-9921-01...
  • Page 3 Power Systems Installing the Model 024, ESLL, or ESLS storage enclosure GI11-9921-01...
  • Page 4 Note Before using this information and the product it supports, read the information in “Safety notices” on page v, “Notices” on page 35, the IBM Systems Safety Notices manual, G229-9054, and the IBM Environmental Notices and User Guide, Z125–5823. ™...

  • Page 5: Table Of Contents

    Installing support rails into the rack Installing the 5147-024, ESLL, or ESLS storage enclosure into a rack . Optional: Install disk drives or SSDs in the 5147-024, ESLL, or ESLS storage enclosure. Connecting the 5147-024, ESLL, or ESLS storage enclosure to your system .
  • Page 6 Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure...

  • Page 7: Safety Notices

    Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: v If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.
  • Page 8 – For racks with AC power, connect all power cords to a properly wired and grounded electrical outlet. Ensure that the outlet supplies proper voltage and phase rotation according to the system rating plate. – For racks with a DC power distribution panel (PDP), connect the customer’s DC power source to the PDP.
  • Page 9 v Each rack cabinet might have more than one power cord. – For AC powered racks, be sure to disconnect all power cords in the rack cabinet when directed to disconnect power during servicing. – For racks with a DC power distribution panel (PDP), turn off the circuit breaker that controls the power to the system unit(s), or disconnect the customer’s DC power source, when directed to disconnect power during servicing.
  • Page 10 CAUTION: Removing components from the upper positions in the rack cabinet improves rack stability during relocation. Follow these general guidelines whenever you relocate a populated rack cabinet within a room or building. v Reduce the weight of the rack cabinet by removing equipment starting at the top of the rack cabinet.
  • Page 11 DANGER: Rack-mounted devices are not to be used as shelves or work spaces. (L002) (L003) Safety notices...
  • Page 12 DANGER: Multiple power cords. The product might be equipped with multiple AC power cords or multiple DC power cables. To remove all hazardous voltages, disconnect all power cords and power cables. (L003) (L007) CAUTION: A hot surface nearby. (L007) (L008) Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure...
  • Page 13 Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local regulations. In the United States, IBM has a process for the collection of this battery. For information, call 1-800-426-4333. Have the IBM part number for the battery unit available when you call. (C003)
  • Page 14 Power and cabling information for NEBS (Network Equipment-Building System) GR-1089-CORE The following comments apply to the IBM servers that have been designated as conforming to NEBS (Network Equipment-Building System) GR-1089-CORE: Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure...
  • Page 15 The equipment is suitable for installation in the following: v Network telecommunications facilities v Locations where the NEC (National Electrical Code) applies The intrabuilding ports of this equipment are suitable for connection to intrabuilding or unexposed wiring or cabling only. The intrabuilding ports of this equipment must not be metallically connected to the interfaces that connect to the OSP (outside plant) or its wiring.
  • Page 16 Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure...

  • Page 17: Installing The Model 024, Esll, Or Esls Storage Enclosure

    If your 5147-024, ESLL, or ESLS storage enclosure arrived to your site preinstalled in a rack, continue with step 4. v If your 5147-024, ESLL, or ESLS storage enclosure needs to be installed into a rack, continue with step 5 on page 2.

  • Page 18: Completing Inventory For The 5147-024, Esll, Or Esls Storage Enclosure

    “Connecting the 5147-024, ESLL, or ESLS storage enclosure to your system” on page 11. 5. If you need to install the 5147-024, ESLL, or ESLS storage enclosure into a rack, ensure that you have the following items before you start your installation:...
  • Page 19 Attention: v Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware. v When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is used for static control.

  • Page 20: Installing Support Rails Into The Rack

    Do not install mismatched hardware by using washers or spacers. If you do not have the correct rails and fittings for your rack, contact your IBM reseller. Important: The rail installation can be completed by one person. However, the installation is easier if one person is positioned at the front of the rack and one person is positioned at the rear of the rack.
  • Page 21 Figure 3. Installing the spring to the rail 5. Open the hinge bracket on each end of the rail. Figure 4. Opening the rail hinge bracket 6. Identify the side of the rack where the rail must be mounted by holding the rail inside of the open space of the rack as follows: v The rail points from front to rear.
  • Page 22 7. Locate the two marks that were made previously on the Electronic Industries Alliances (EIA) strips. 8. Align the rail bracket inside the rack cabinet beside the marks, and seat the front of the support rail bracket pins in the mounting holes. The bottom of the rail support ledge appears slightly higher than the U mark on the rack flange.

  • Page 23: Installing The 5147-024, Esll, Or Esls Storage Enclosure Into A Rack

    Installing the 5147-024, ESLL, or ESLS storage enclosure into a rack To install the 5147-024, ESLL, or ESLS storage enclosure into a rack, complete the steps in this procedure. In addition to related safety information, illustrations of the related hardware components are provided.
  • Page 24 Figure 7. Removing the side covers 3. Using two people, lift the enclosure and position it over the front of the rails. Attention: Two people are required to safely lift the enclosure. Using fewer than two people to lift the enclosure can result in injury. 4.

  • Page 25: Optional: Install Disk Drives Or Ssds In The 5147-024, Esll, Or Esls Storage Enclosure

    Figure 9. Securing the front of the enclosure to the rack Optional: Install disk drives or SSDs in the 5147-024, ESLL, or ESLS storage enclosure To install disk drives or SSDs, complete the steps in this procedure. Notes: v You can install disk drives in the ESLL storage enclosure.
  • Page 26 Figure 10. Installing a disk drive in the ESLL storage enclosure Figure 11. Installing a drive in the 5147-024 or ESLS storage enclosure Note: Do not hold the drive only by the handle. 4. Slide the drive into the enclosure until the drive stops.

  • Page 27: Connecting The 5147-024, Esll, Or Esls Storage Enclosure To Your System

    Learn how to connect the 5147-024, ESLL, or ESLS storage enclosure to your system. Note: The cables that are used to connect the 5147-024, ESLL, or ESLS storage enclosure to a server are different from the cables that are used with the 5887 disk drive enclosure.
  • Page 28 8247-21L, 8247-22L, 8247-42L, 8284-21A, 8284-22A, 8286-41A, or 8286-42A, the SAS YO12 cable must not exceed the maximum supported length of 3 m (9.8 ft). v If you are working on a 5147-024, use a mode 1 connection by using two AA12 or other straight cables to two SAS adapters.
  • Page 29 30 and select the appropriate model. 7. Select from the following options: v If the server or expansion unit that you are attaching your 5147-024, ESLL, or ESLS storage enclosure to is powered off, continue with step 12.
  • Page 30 “Connecting cables, power cords, and installing covers” on page 22. Figure 13. Mode 1 connection of one 5147-024 enclosure by using two AA12 or other straight cables to two adapters Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure...
  • Page 31 14. Complete a mode 1 connection of one enclosure (A) by using a Y012 cable (B) to a single FC EJ0J or FC EJ0M SAS adapter (C), as shown in Figure 14, then continue with “Connecting cables, power cords, and installing covers” on page 22. Note: The single FC EJ0J or FC EJ0M SAS adapter (C) has access to all 12 or 24 drive bays.
  • Page 32 Figure 15. Mode 1 connection of two ESLL and ESLS storage enclosures by using YO12 cables to a single FC EJ0J or FC EJ0M SAS adapter 16. Complete a mode 1 connection of one enclosure (A) by using YO12 cables (B) to an FC EJ0L SAS adapter pair or an FC EJ14 SAS adapter pair (C) with adapter-to-adapter (AA) cables (D), as shown in Figure 16 on page 17, and then continue with “Connecting cables, power cords, and installing covers”...
  • Page 33 Figure 16. Mode 1 connection of one ESLL or ESLS storage enclosure by using YO12 cables to an FC EJ0L SAS adapter pair or an FC EJ14 SAS adapter pair with AA cables 17. Complete a mode 1 connection of two enclosures (A and B) by using YO12 cables (C and D) to an FC EJ0L SAS adapter pair or an FC EJ14 SAS adapter pair (E) with AA cables (F), as shown in Figure 17 on page 18, and then continue with “Connecting cables, power cords, and installing covers”...
  • Page 34 Figure 17. Mode 1 connection of two ESLL and ESLS storage enclosures by using YO12 cables to an FC EJ0L SAS adapter pair or an FC EJ14 SAS adapter pair with AA cables 18. Complete a mode 2 connection of one enclosure (A) by using YO12 cables (B) to two independent FC EJ0J or FC EJ0M SAS adapters, as shown in Figure 18 on page 19, and then continue with “Connecting cables, power cords, and installing covers”...
  • Page 35 Figure 18. Mode 2 connection of one ESLL or ESLS storage enclosure by using YO12 cables to two independent FC EJ0J or FC EJ0M SAS adapters 19. Complete a mode 2 connection of one enclosure (A) by using X12 cables (B) to two FC EJ0L SAS adapter pairs or two FC EJ14 SAS adapter pairs (C, D) with AA cables (E), as shown in Figure 19 on page 20, and then continue with “Connecting cables, power cords, and installing covers”...
  • Page 36 Figure 19. Mode 2 connection of one ESLS by using X12 cables to two FC EJ0L SAS adapter pairs or two FC EJ14 SAS adapter pairs with AA cables 20. Complete a mode 4 connection of one enclosure (A) by using X12 cables (B) to four independent FC EJ0J or FC EJ0M SAS adapters, as shown in Figure 20 on page 21, and then continue with “Connecting cables, power cords, and installing covers”...
  • Page 37 Figure 20. Mode 4 connection of one ESLL or ESLS storage enclosure by using X12 cables to four independent FC EJ0J or FC EJ0M SAS adapters Figure 21. Labels for SAS adapter cables that show P1 and P2 identifiers Installing the Model 024, ESLL, or ESLS storage enclosure...

  • Page 38: Connecting Cables, Power Cords, And Installing Covers

    21. For more information about SAS cabling and cabling configurations, see Serial-attached SCSI cable planning (http://www.ibm.com/support/knowledgecenter/POWER8/p8had/ p8had_sascabling.htm). Connecting cables, power cords, and installing covers Use this procedure to reconnect cables, power cords, and install the side covers. To reconnect cables, attach power cords, and install the side covers, complete the following steps: 1.
  • Page 39 Figure 23. Connecting the power cords 5. Reinstall the left cover (A), which contains the service indicators, and the right cover (B). a. Fit the slot on the top of the cover over the tab on the chassis flange. b. Rotate the cover down until it snaps into place. Ensure that the inside surface of the cover is flush with the chassis.

  • Page 40: Completing The 5147-024, Esll, Or Esls Storage Enclosure Installation

    AIX system or AIX logical partition (http://www.ibm.com/support/ knowledgecenter/POWER8/p8hal/pxhal_configdrive_aix.htm). v To configure a disk drive or SSD for use by IBM i, see Configuring a disk drive or solid-state drive for use in an IBM i system or IBM i logical partition (http://www.ibm.com/support/ knowledgecenter/POWER8/p8hal/pxhal_configdrive_ibmi.htm).

  • Page 41: Reference Information

    If your system is running the Linux operating system, type shutdown -h now. v If your system is running the IBM i operating system, type PWRDWNSYS. If your system is partitioned, use the PWRDWNSYS command to power down each of the secondary partitions. Then, use the PWRDWNSYS command to power down the primary partition.

  • Page 42: Stopping A System By Using The Hmc

    To stop a system by using the ASMI, complete the following steps: 1. On the ASMI Welcome pane, specify your user ID and password, and click Log In. 2. In the navigation area, click Power/Restart Control > Power On/Off System. The power state of the system is displayed.

  • Page 43: Stopping An Ibm Powerkvm System

    Click OK. Stopping an IBM PowerKVM system You can use the Intelligent Platform Management Interface (IPMI) to stop an IBM PowerKVM system. To stop an IBM PowerKVM system, complete the following steps: 1. Log in to the host as a root user or with sudo authority.
  • Page 44 3. Press the power button (A), as shown in the following figure, on the control panel. Front View Top View Figure 25. Control panel v A: Power-on button – A constant light indicates full system power to the unit. – A flashing light indicates standby power to the unit. –...

  • Page 45: Starting A System By Using The Asmi

    v The system cooling fans are activated after approximately 30 seconds and begin to accelerate to operating speed. v Progress indicators, also referred to as checkpoints, appear on the control panel display while the system is being started. The power-on light on the control panel stops flashing and remains on, indicating that the system power is on.

  • Page 46: Starting An Ibm Powerkvm System

    Starting an IBM PowerKVM system You can use the Intelligent Platform Management Interface (IPMI) to start an IBM PowerKVM system. To start an IBM PowerKVM system, run the ipmitool -I lanplus -H FSP IP -P ipmipassword chassis power on command from a remote system.

  • Page 47: Connector Locations For The 5147-024, Esll, And Esls Storage Enclosures

    Connector locations for the 5147-024, ESLL, and ESLS storage enclosures Learn about connector locations for the 5147-024, ESLL, and ESLS storage enclosures. Note: The T1 connectors are not used. Figure 26. Connector locations for the 5147-024, ESLL, and ESLS storage enclosures...

  • Page 48: Connector Locations For The 8247-42L And 8286-42A Systems

    Figure 28. Connector locations for the rack-mounted 8286-41A (expanded function) system Figure 29. Connector locations for the stand-alone 8286-41A (expanded function) system Connector locations for the 8247-42L and 8286-42A systems Learn about connector locations for the 8247-42L and 8286-42A rack-mounted models. The 8247-42L and 8286-42A (expanded function) servers provide cable connector locations via a SAS port for disk drive enclosures.

  • Page 49: Connector Locations For The 8408-44E And 8408-E8E Systems

    Figure 30. Connector locations for the 8247-42L and 8286-42A (expanded function) systems Connector locations for the 8408-44E and 8408-E8E systems Learn about connector locations for the 8408-44E and 8408-E8E systems. The 8408-44E and 8408-E8E systems provide cable connector locations via a SAS port (P1-C5-T3) for disk drive enclosures and cable ports (P1-C5-T1 and P1-C5-T2) for the EMX0 PCIe3 expansion drawer.

  • Page 50: Connector Locations For The 9080-Mhe, 9080-Mme, 9119-Mhe, And 9119-Mme Systems

    Connector locations for the 9080-MHE, 9080-MME, 9119-MHE, and 9119-MME systems Learn about connector locations for the 9080-MHE, 9080-MME, 9119-MHE, and 9119-MME systems. The 9080-MHE, 9080-MME, 9119-MHE, and 9119-MME servers provide cable connector locations for the EMX0 PCIe Gen3 I/O expansion drawer. P1-T1 P1-T2 P1-T3...

  • Page 51: Notices

    Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead.

  • Page 52: Accessibility Features For Ibm Power Systems Servers

    All IBM prices shown are IBM's suggested retail prices, are current and are subject to change without notice. Dealer prices may vary. This information is for planning purposes only. The information herein is subject to change before the products described become available.

  • Page 53: Privacy Policy Considerations

    This product uses standard navigation keys. Interface information The IBM Power Systems servers user interfaces do not have content that flashes 2 - 55 times per second. The IBM Power Systems servers web user interface relies on cascading style sheets to render content properly and to provide a usable experience.

  • Page 54: Trademarks

    IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the web at Copyright and trademark information at www.ibm.com/legal/copytrade.shtml.
  • Page 55 Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. VCCI Statement - Japan The following is a summary of the VCCI Japanese statement in the box above: This is a Class A product based on the standard of the VCCI Council.
  • Page 56 Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user will be required to take adequate measures. IBM Taiwan Contact Information: Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure...
  • Page 57 Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der IBM empfohlene Kabel angeschlossen werden. IBM übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung von IBM verändert bzw.

  • Page 58: Class B Notices

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM-authorized dealers. IBM is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment.
  • Page 59 European Community contact: IBM Deutschland GmbH Technical Regulations, Abteilung M456 IBM-Allee 1, 71139 Ehningen, Germany Tel: +49 800 225 5426 email: halloibm@de.ibm.com VCCI Statement - Japan Japan Electronics and Information Technology Industries Association Statement This statement explains the Japan JIS C 61000-3-2 product wattage compliance.
  • Page 60 Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der IBM empfohlene Kabel angeschlossen werden. IBM übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung von IBM verändert bzw.

  • Page 61: Terms And Conditions

    Permissions for the use of these publications are granted subject to the following terms and conditions. Applicability: These terms and conditions are in addition to any terms of use for the IBM website. Personal Use: You may reproduce these publications for your personal, noncommercial use provided that all proprietary notices are preserved.
  • Page 62 Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure...
  • Page 64 IBM® Part Number: 01LK529 Printed in USA GI11-9921-01...
