System description and strategy ..................15 Installation design and start-up ..................16 Electrical wiring design of the installation ..............16 Electrical connection of the INGECON SUN STORAGE 1Play ......... 17 Configuration of the INGECON SUN STORAGE 1Play ..........17 Firmware update ...................... 21 Monitoring of the installation.
La condición de personal cualificado a la que se refiere este manual, será como mínimo aquella que satisfaga todas las normas, reglamentos y leyes en materia de seguridad aplicables a los trabajos de instalación y operación de este equipo. Ingeteam recomienda que la instalación de este equipo sea realizada por un instalador profesional. 1.2 Simbología A lo largo de este manual se utilizarán diferentes símbolos con el fin de remarcar y resaltar...
La inyección a red de excedentes fotovoltaicos es configurable por el usuario. Si la red no se encuentra en servicio, el INGECON SUN STORAGE 1Play alimenta los consumos críticos hasta que la batería se descarga plenamente (SOC DESCX o V MINIMA). Con la batería plenamente descargada el sistema permanecerá...
5. Monitorización de la instalación. 3.1 Diseño del esquema eléctrico de la instalación El diseño de la instalación se deberá de realizar según el esquema eléctrico definido por Ingeteam. Los esquemas eléctricos se encuentran en el siguiente link: http://www.ingeconsuntraining.info/?page_id=8460 Elementos de la instalación: Paneles fotovoltaicos.
El instalador debe tener los conocimientos suficientes que le permitan realizar la instalación correctamente. Ingeteam no se hace responsable del mal uso de la contraseña de instalador ni de las consecuencias de una incorrecta configuración del equipo por parte del usuario y/o instalador.
Page 7
Baterías de ion-litio Para ampliar información sobre las baterías de litio compatibles consultar la “Lista de baterías de litio aprobadas para el INGECON SUN STORAGE 1Play”, disponible en la web de Ingeteam. Baterías de plomo-ácido Si la opción seleccionada es Plomo-ácido se deberán configurar los siguientes parámetros: Una mala configuración de estos parámetros puede reducir la vida de la batería.
Page 8
Para ampliar información sobre el funcionamiento de este tipo de instalaciones consultar la “Guía técnica para instalaciones con INGECON SUN STORAGE 1Play”, disponible en la web de Ingeteam. Para ello acceder a través del Display: Menú > Configuración > Modo Operación > Modo > UPS (Back-up)
Page 9
Ingeteam Instalación y configuración de un sistema UPS (Back-up) Parámetro Explicación SOC máximo para cargar las baterías desde la energía fotovoltaica (%). Se SOC MAX recomienda un 100%. SOC RED SOC máximo para cargar las baterías desde la red pública (%).
Menú > Configuración > Modo Operación > Potencia Inyección Red Introducir el valor deseado, confirmar con la tecla “OK” y guardar los cambios realizados. 3.4 Actualización de firmware Se recomienda actualizar el firmware del INGECON SUN STORAGE 1Play a la última versión disponible en la web: www.ingeteam.com.
3. En la parte izquierda aparecerá el número de serie de la tarjeta de comunicaciones. Seleccionar el número de serie para conocer la dirección IP adquirida. Una vez conocida la dirección IP, se procede a añadir el INGECON SUN STORAGE 1Play en la planta a través del EMS Tools.
Page 12
Instalación y configuración de un sistema UPS (Back-up) Ingeteam Seleccionamos el tipo de conexión: Ethernet. IP: Dirección IP adquirida por el inversor Puerto: 502 Nodo Modbus: 01 Alias: ISS 1Play Fase: R Máximo SOC: Este valor es informativo. No es usado para la estrategia de monitorización.
System description and strategy ..................15 Installation design and start-up ..................16 Electrical wiring design of the installation ..............16 Electrical connection of the INGECON SUN STORAGE 1Play ......... 17 Configuration of the INGECON SUN STORAGE 1Play ..........17 Firmware update ...................... 21 Monitoring of the installation.
At the end of the accessory's life, the waste must be correctly processed by an authorized hazardous waste management company. Ingeteam, in accordance with its policy of respect for the environment, will inform the authorized manager, via this section, of the location of components...
In the case of a power cut, the INGECON SUN STORAGE 1Play internally disconnects from the grid installation and provides the necessary power for the critical loads from the batteries. To do so, the batteries remain charged while grid electricity is available and the photovoltaic energy is used to supply the loads, reducing energy consumption from the grid.
5. Monitoring of the installation (optional). 3.1 Electrical wiring design of the installation The design of the installation must be carried out according to the electrical scheme defined by Ingeteam. The wiring diagrams can be found in the following link: http://www.ingeconsuntraining.info/?page_id=10545 Installation components: Photovoltaic panels.

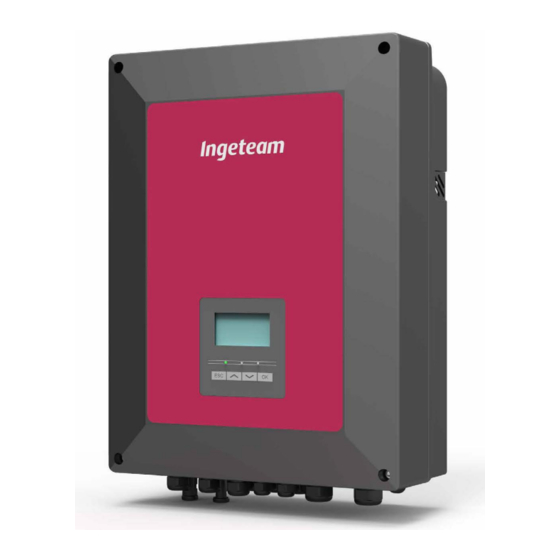

Ingeteam 3.2 Electrical connection of the INGECON SUN STORAGE 1Play The electrical connection of the INGECON SUN STORAGE 1Play is described below. All connections must be made in the absence of live voltage. Identify the TT or TN grounding system before proceeding with the grid connection.
Page 18
Li-ion batteries For more information about the compatible lithium batteries, see the "List of lithium batteries approved for the INGECON SUN STORAGE 1Play" available on the Ingeteam website. Lead-Acid batteries If the option selected is Lead-Acid the following parameters must be set: A wrong configuration of these parameters can reduce battery life.
Page 19
For operation in the UPS (Back-up) installations, it is necessary to configure the inverter operation mode to the “UPS (Back-up)” mode. For more information about the operation of this type of installation, see the "Technical guide for installations with INGECON SUN STORAGE 1Play" available on the Ingeteam website. Enter via the Display:...
Page 20
In the case of installations with TN neutral system, this contactor is not necessary. In the event of a power cut, the INGECON SUN STORAGE 1Play disconnects the line and the neutral from the public grid. To keep the charge neutral connected to ground, as required in TT networks, an external contactor must be installed.
Menu > Configuration > Operation Mode > Grid Injection Power Enter the required value and confirm by clicking on “OK” and save the changes. 3.4 Firmware update The firmware for the INGECON SUN STORAGE 1Play should be updated to the latest version available on the website: www.ingeteam.com.
3. The serial number of the communications card is displayed in the left section. Select the serial number to find out the IP address obtained. Once the IP address is known, add INGECON SUN STORAGE 1Play to the plant using EMS Tools.
Page 23
Phase: R SOC maximum: This value is informative. Not used for the monitoring strategy. Set the same value as the INGECON SUN STORAGE 1Play as SOC MAX. SOC minimum: Not used for the monitoring strategy. Set the same value as the INGECON SUN STORAGE 1Play as SOC MIN.
