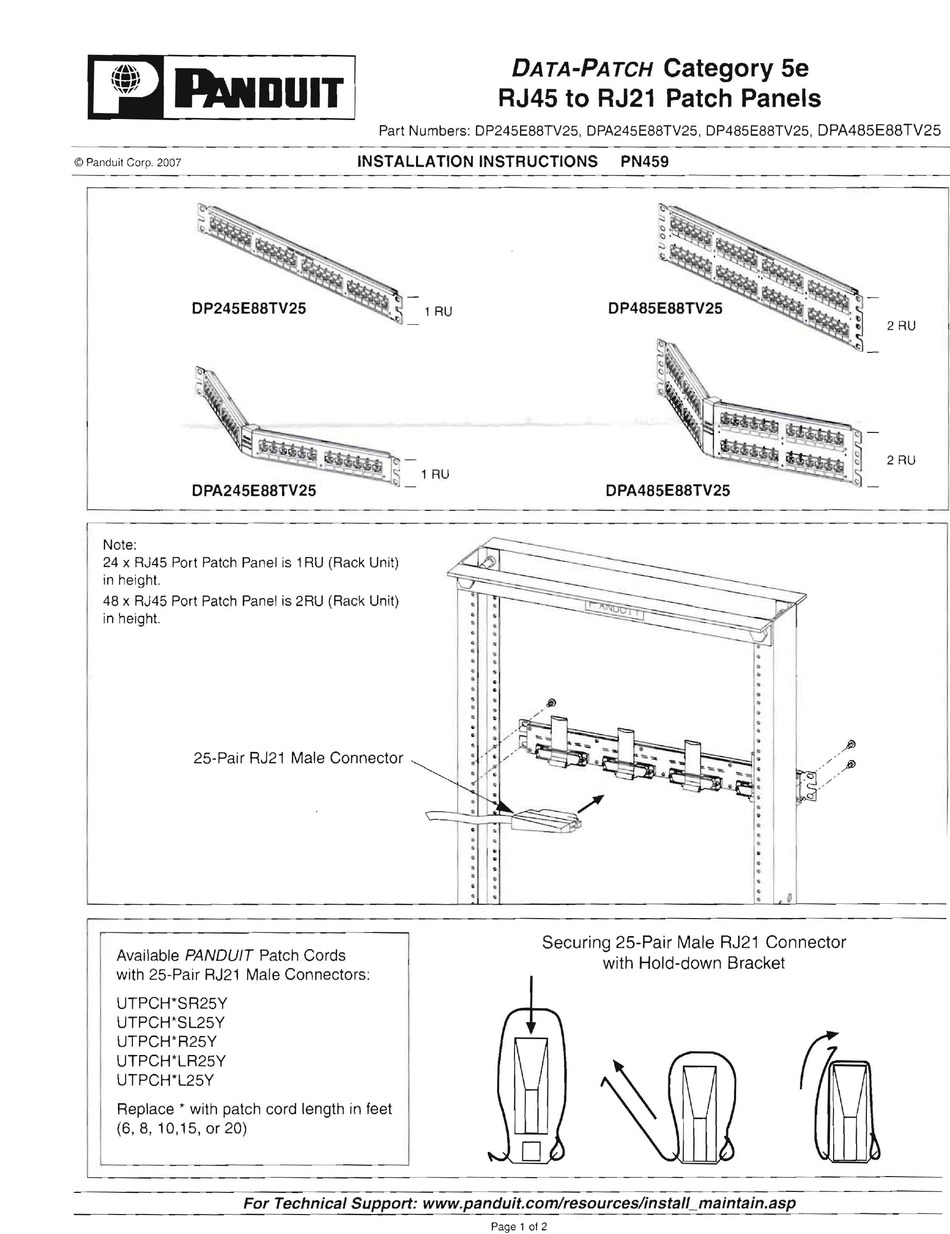

Panduit DPA245E88TV25 Installation Instructions

DATA-PATCH
Category 5e
RJ45 to RJ21 Patch Panels
Part Numbers: DP245E88TV25, DPA245E88TV25, DP485E88TV25, DPA485E88TV25
© Panduit Corp. 2007
INSTALLATION INSTRUCTIONS PN459
DP245E88TV25
DPA245E88TV25
1 AU
1
AU
DPA485E88TV25
DP485E88TV25
2
AU
Note:
24 x RJ45 Port Patch Panel is 1RU (Rack Unit)
in height.
48 x RJ45 Port Patch Panel is 2RU (Rack Unit)
in height.
25-Pair RJ21 Male Connector
. ·
. ·
.
·
.
·
.
· .
· .
·
.
·
.
~
.
/"
: ,
~
/ " 1f..r_ _
«-,
=-t~ ;
......._ _
·
.
~~~-
·
.
· .
·
.
·
. ·
.
Available PANOUIT Patch Cords
with 25-Pair RJ21 Male Connectors:
UTPCWSR25Y
UTPCH*SL25Y
UTPCH*R25Y
UTPCWLR25Y
UTPCWL25Y
Replace' with patch cord length in feet
(6,8,10,15, or 20)
Securing 25-Pair Male RJ21 Connector
with Hold-down Bracket
For Technical Support: www.panduit.comlresources/install maintain.asp
Page 1 of 2
