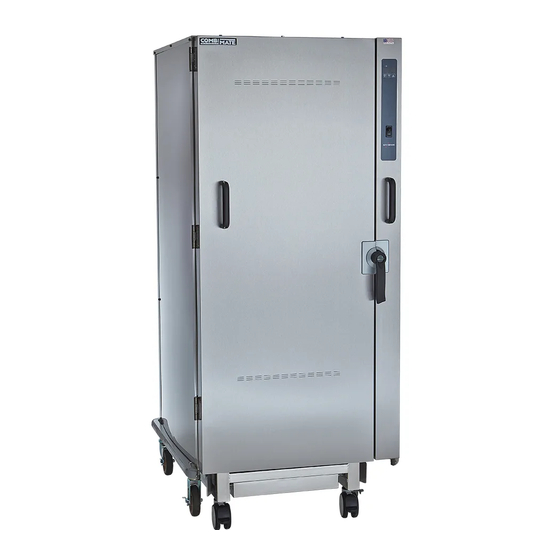

Alto-Shaam 20-20W Operator's Manual
Hot food holding cabinets
Hide thumbs
Also See for 20-20W:
- Installation, operation & maintenence manual (24 pages) ,
- Datasheet (2 pages) ,
- Installation operation & maintenance (38 pages)
Table of Contents
Advertisement
W164 N9221 Water Street • P .O . Box 450
Menomonee Falls, Wisconsin 53052-0450 U .S .A .
262 .251 .3800 • 800 .558 .8744
PHONE:
262 .251 .7067 • 800 .329 .8744
FAX:
www .alto-shaam .com
Printed in U.S.A.
Hot Food Holding Cabinets
20-20MW
• Installation
• Operation
• Maintenance
U .S .A . / CANADA
U .S .A . ONLY
Models:
20-20W
20-20MW
Consult instructions
for operation and use .
Electric
MN-36608 (Rev. 5) • 06/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alto-Shaam 20-20W
Summary of Contents for Alto-Shaam 20-20W
- Page 1 262 .251 .3800 • 800 .558 .8744 PHONE: U .S .A . / CANADA 262 .251 .7067 • 800 .329 .8744 FAX: U .S .A . ONLY Consult instructions www .alto-shaam .com for operation and use . MN-36608 (Rev. 5) • 06/18 Printed in U.S.A.
-
Page 2: Table Of Contents
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 3: Warranty And Service Information
Extend Your Manufacturer’s Warranty Register Register your Alto-Shaam appliance online, and you will automatically be entered into a monthly drawing to win an additional year extended warranty! Registering your appliance ensures prompt service in the event of a warranty claim. You will also receive direct notifications of software updates and additional product information. -
Page 4: Delivery
• Ambient temperature range of 60°F to 110°F (16°C to 43°C). leveling appliance and handling accessories. • Relative humidity of less than 95% non-condensation. • Atmospheric pressure range of 50kPa to 106kPa. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 5: Transportation Damage Claims
United States through the use of Alto-Shaam’s toll-free ______________________________________________ number. Emergency service access is available seven ______________________________________________ days a week including holidays. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 6: Unpacking
• Remove all protective plastic fi lm, packaging materials, and accessories from the appliance before connecting electrical power. Store any accessories in a convenient place for future use. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 7: Safety Procedures
2012/95/EC WEEE Do not dispose of electrical or electronic equipment with other municipal waste. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... - Page 8 • Always open the appliance door very slowly. Escaping hot vapors or steam can cause serious injury. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
-
Page 9: Installation
6" (152mm) legs to provide minimum unobstructed space beneath the unit. Warranty will become null and void if these directions are not followed. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 10: Dimensions
35" (888mm) 32-11/16" (830mm) 41-5/16" (1049mm) 41" (1039mm) to MW bumper Optional Pan Cart 22" (558mm) 34-3/8" (873mm) 5017976 Trolley 20-20 22" (558mm) 28-11/16" (727mm) 26-1/16" (661mm) MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... - Page 11 To prevent serious injury, death, or property damage, always disconnect the appliance damage, always lock-out or post breaker from the power source before cleaning or servicing. panel until service work has been completed. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
-
Page 12: Electrical Connection
50/60 12.5 15A-250V Plug 50/60 12.0 Plugs rated 250V CEE 7/7 CH2-16P BS 1363 AS/NZS 3112 Wire diagrams are located under the top cover of the appliance. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 13: Operation
Appliances on casters can move or roll on uneven floors. semiliquid products positioned above the eye level of the operator. Such products LA-22026 may scald and cause serious injury. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... - Page 14 Temperature Down periodically check the internal temperature of each Display Arrow Arrow item to assure maintenance of the proper temperature range. Reset the holding temperature accordingly. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
-
Page 15: General Holding Guidelines
The holding temperatures listed are suggested guidelines only. All food holding should be based on internal product temperatures. Always follow local health (hygiene) regulations for all internal temperature requirements. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 16: Cleaning And Preventative Maintenance
Failure to clean the appliance properly voids the warranty and relieves Alto-Shaam of all liability. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... - Page 17 Never use hydrochloric acid Always follow appropriate state or local health (hygiene) (muriatic acid) on stainless steel. regulations regarding all applicable cleaning and sanitation requirements for foodservice equipment. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
-
Page 18: Food Safety
A thermometer is an eff ective tool for this purpose, and should be routinely used on all products that require holding at a specifi c temperature. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 19: Troubleshooting
Do not attempt to repair or service the oven beyond this point. Contact Alto-Shaam for the nearest authorized service agent. Repairs made by any other service agents without prior authorization by Alto-Shaam will void the warranty. - Page 20 Plug in SD card and cycle power. Contact factory if error persists. NOTE: If in doubt, always cycle the power to the control and contact factory if the problem persists. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
-
Page 21: Service
Service Service View - 20-20MW 19 40 Part numbers and drawings are subject to change without notice. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... - Page 22 To prevent serious injury, death, or property from the power source before cleaning damage, always lock-out or post breaker or servicing. panel until service work has been completed. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
- Page 23 Service Service View - 20-20W 15 15A Part numbers and drawings are subject to change without notice. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
- Page 24 To prevent serious injury, death, or property from the power source before cleaning damage, always lock-out or post breaker or servicing. panel until service work has been completed. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets...
- Page 25 Caster, Swivel, no Brake CS-36218 Screw, M4 x 0.7 x 10mm Hex SC-23664 Rod, Trolley Lock 1014124 Part numbers and drawings are subject to change without notice. MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets 68445...
-
Page 26: Wiring Diagram
Wiring Diagram MN-36608 • Rev 5 • 06/18 • 20-20MW, 20-20W Hot Food Holding Cabinets... -
Page 27: Limited Warranty
This warranty is exclusive and is in lieu of all other warranties, express or implied, including the implied warranties of merchantability and fi tness for a particular purpose. In no event shall Alto-Shaam be liable for loss of use, loss of revenue or profi t, or loss of product, or for any indirect, special, incidental, or consequential damages.
