REX7000 / REX7001 Upper Body Connecting Link Replacement

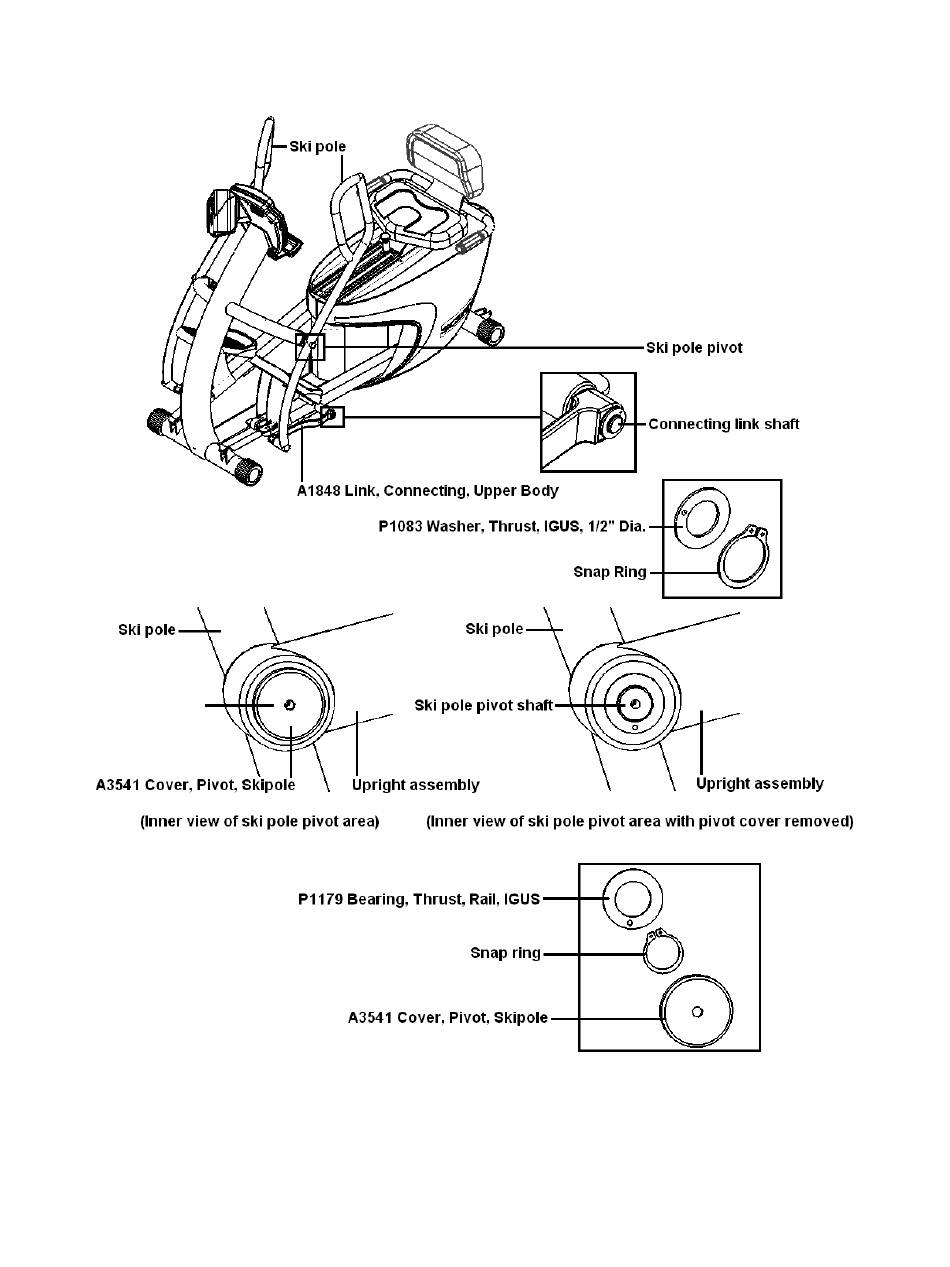

1. Using snap ring pliers, remove the snap rings from the connecting link
shafts at each end of the upper body connecting link (A1848).
2. Remove the thrust washer (P1083) from each connecting link shaft.
3. Using a Philips screwdriver, remove the screw and lock washer mounting
the ski pole pivot cover (A3541).
1
Advertisement
Table of Contents
Related Manuals for SCIFIT REX7000
Summary of Contents for SCIFIT REX7000
- Page 1 REX7000 / REX7001 Upper Body Connecting Link Replacement 1. Using snap ring pliers, remove the snap rings from the connecting link shafts at each end of the upper body connecting link (A1848). 2. Remove the thrust washer (P1083) from each connecting link shaft.
- Page 2 4. Remove ski pole pivot cover. 5. Using snap ring pliers, remove the snap ring from the ski pole pivot shaft. 6. Remove the thrust bearing washer (P1179) from the ski pole pivot shaft. 7. Slide the ski pole out of the upright assembly and the upper body connecting link.
