SCIFIT ISO7000 Replacement Manual

Battery replacement

Hide thumbs Also See for ISO7000:

1. Remove both side covers, using a Philips screwdriver.

2. Pull the seat plunger (P2589) and remove seat post (A1692) from the unit.

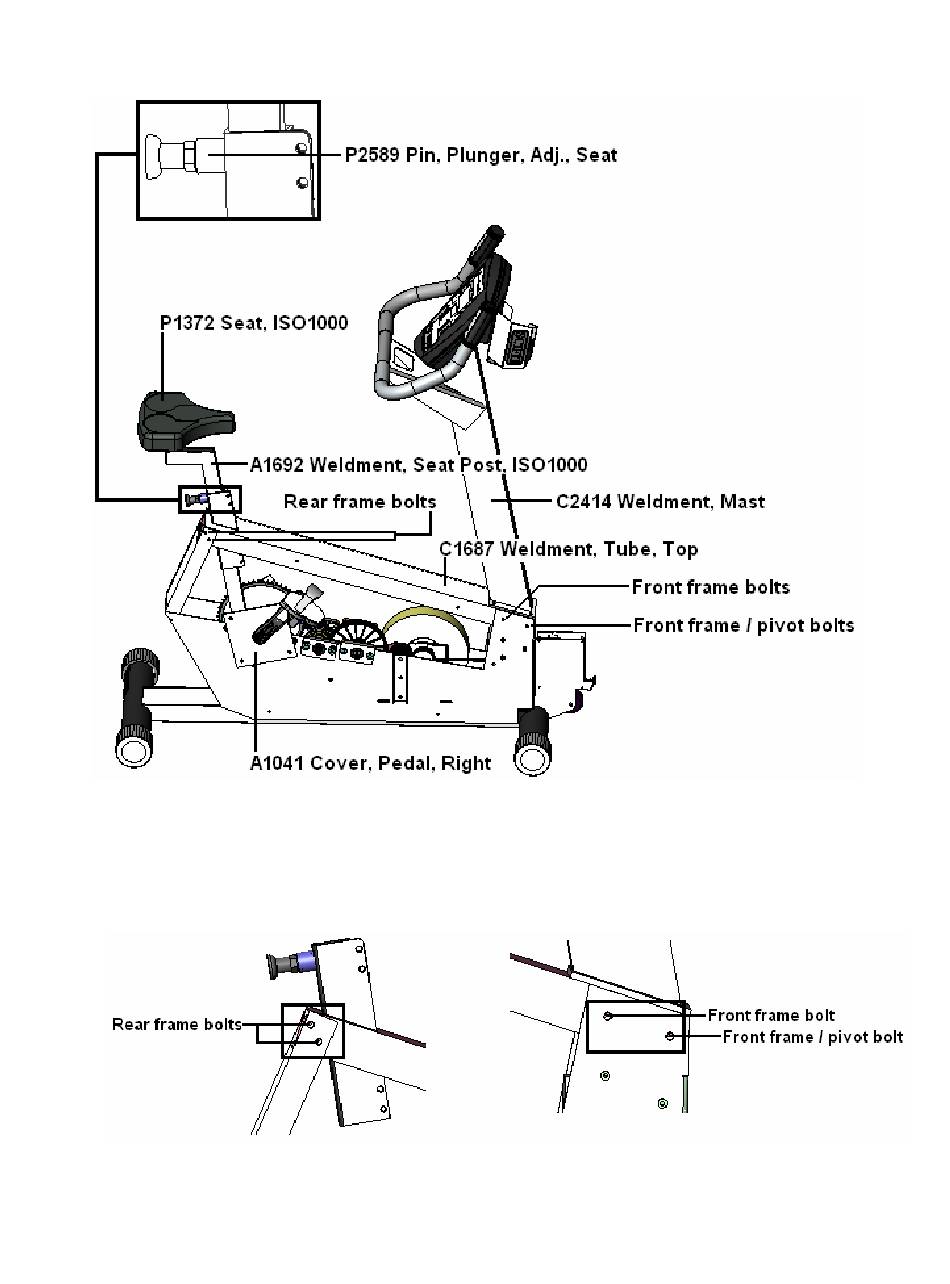

3. Remove the four (4) rear frame bolts (shown below), using a ½" socket.

There are two (2) on each side of the frame. Each bolt also has a lock

washer on it.

4. Remove the two (2) front frame bolts (shown above), using a ½" socket.

There is one (1) on each side of the frame. Each bolt also has a lock

washer on it. Do not remove the front frame / pivot bolts.

ISO7000 Battery Replacement

Table of Contents

Do you have a question about the ISO7000 and is the answer not in the manual?

Page 1 ISO7000 Battery Replacement 1. Remove both side covers, using a Philips screwdriver. 2. Pull the seat plunger (P2589) and remove seat post (A1692) from the unit. 3. Remove the four (4) rear frame bolts (shown below), using a ½” socket.
Page 2 5. Loosen the two (2) front frame / pivot bolts (shown above) two (2) full turns, using a ½” socket. Do not remove. 6. Lay the mast to the front of the unit by pivoting on the front frame / pivot bolts (shown below).
