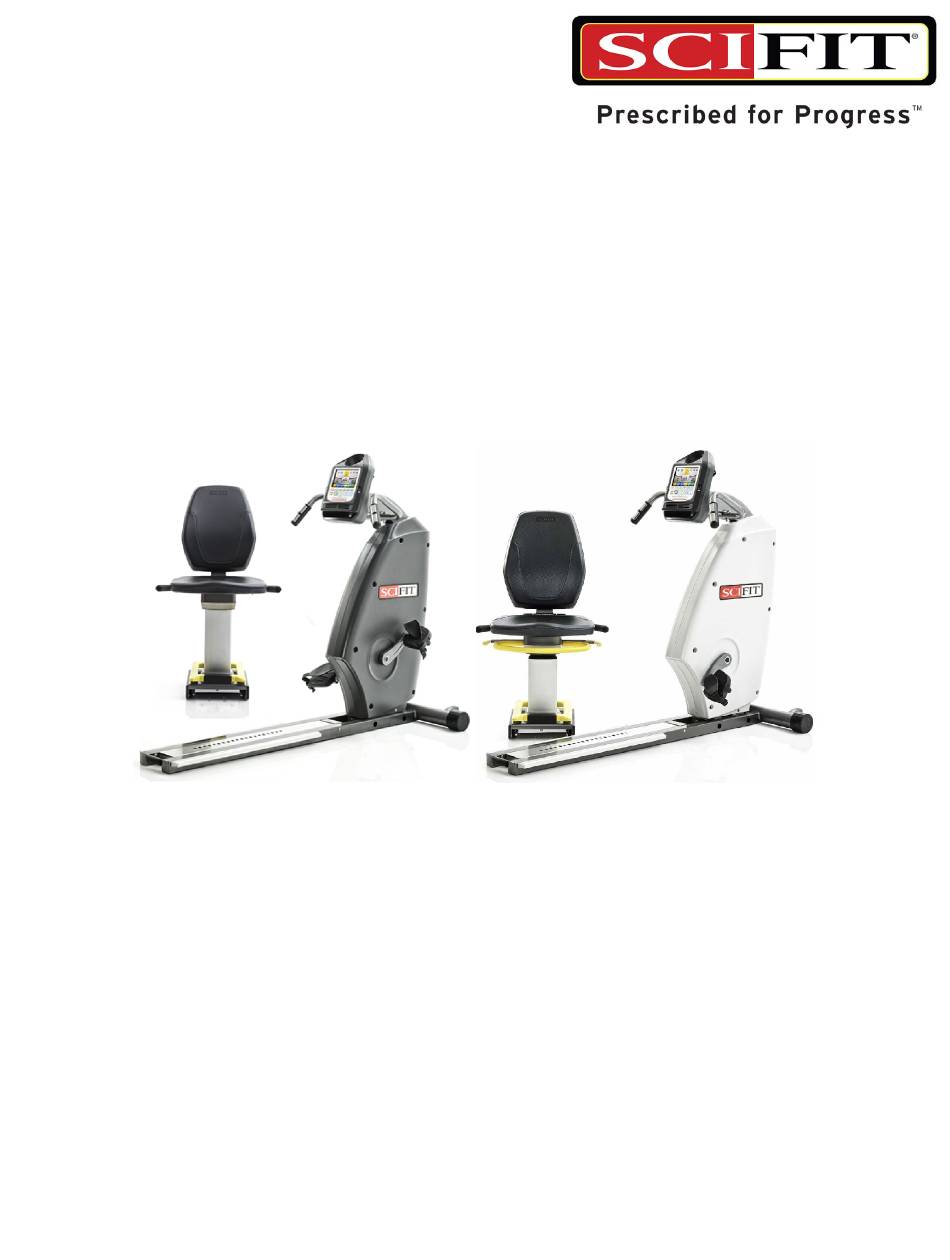

ISO1000R/7000R
Machine User Manual
Recumbent Bike
ISO10XXR-BR, ISO10XXR-DOMHUR, ISO10XXR-ERGLN, ISO10XXR-INT, ISO10XXR-
INTHUR, ISO10XX-ISBU, ISO10XXR-SA, ISO10XXR-JPHUR, ISO10XXR-JP, ISO70XXR-
INT, ISO70XXR-DOMHUR, ISO70XXR-ERGLN, ISO70XXR-(USA), ISO70XXR-BR,
ISO70XXR-INTHUR, ISO70XXR-JPHUR, ISO70XXR-ISBU, ISO70XXR-JP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SCIFIT ISO1000R Series
Summary of Contents for SCIFIT ISO1000R Series
- Page 1 ISO1000R/7000R Machine User Manual Recumbent Bike ISO10XXR-BR, ISO10XXR-DOMHUR, ISO10XXR-ERGLN, ISO10XXR-INT, ISO10XXR- INTHUR, ISO10XX-ISBU, ISO10XXR-SA, ISO10XXR-JPHUR, ISO10XXR-JP, ISO70XXR- INT, ISO70XXR-DOMHUR, ISO70XXR-ERGLN, ISO70XXR-(USA), ISO70XXR-BR, ISO70XXR-INTHUR, ISO70XXR-JPHUR, ISO70XXR-ISBU, ISO70XXR-JP...
- Page 3 United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Bijdorpplein 25-31 SCIFIT Queen Adelaide 2992 LB Barendrecht Ely, Cambs, CB7 4UB 5151 S. 110th E. Avenue THE NETHERLANDS Telephone: General Office (+44) 1353.666017 Tulsa, OK, 74146 U.S.A...
- Page 4 User and Service Documents Link https://lfworld.lifefitness.com Additional information is available online using the link above. أعلاه الرابط باستخدام الإنترنت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...
-
Page 5: Table Of Contents
© Copyright 2020, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Introduction
If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels. - Page 7 • This machine is not intended for use by persons with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
-
Page 8: Service And Technical Data
Service and Technical Data Maintenance Component Action When Upholstery Clean With a Damp Cloth Daily Base Roller Track Clean With a Damp Cloth Weekly Battery Refer to “Rotary CNSL Prog. Manual” For battery Check Instruct. Monthly Chain (ISO7000R models) General Purpose Chain Lubricant Every 6 Months ATTENTION: Contact your local waste management agency for specific requirements concerning recycling and disposal locations of batteries. -
Page 9: Adjustments
Adjustments Machine Relocation 1. Push down on the yellow foot lever on either side of the seat post and hold, then slide the seat off the base frame. 2. Grab the lift handle at the rear of the base frame. Page 7 of 20... - Page 10 3. Carefully lift the machine until the front wheels touch the ground, then move the machine forward. 4. When a location is found, use the adjustable end caps on both sides of the frame to level the machine. WARNING: Two people required. WARNING: Not placing the machine on a stable and level surface may result in injury to yourself and others.
-
Page 11: Machine Power Up
Machine Power Up Option 1: Continually rotate the lower foot pedals to keep the console powered-up. Option 2: Connect either domestic or International power supply to the machine for continuous power. Page 9 of 20... -
Page 12: Console Adjustment
Console Adjustment The console can be tilted forward or backward for better viewing of the console screen. Seat Mounting Page 10 of 20... -
Page 13: Heart Rate
Heart Rate Heart Rate Tracking OPTION 1: Contact Heart Rate The user can place their hands on the metal contact plates located on the ends of the handlebar during the workout. After a short period of time the heart symbol will begin to blink and the user heart rate will appear. NOTE: Keep hands still to receive a consistent reading. -
Page 14: Hur-Ergoline
HUR-ERGOLINE Connecting Port Location The port connector is located in the front area of the right side cover. Console Cable Connections 1. The HUR/ERGOLINE cables are labeled with a "COMM" decal. Connect the "COMM" labeled cable coming out of the machine to the "COMM"... -
Page 15: Biomechanical Positioning
Biomechanical Positioning Machine Entry 1. Choose one of the following to position seat for entry. • Press and hold the yellow foot lever located on either side of the seat base (see Seat System manual), then move the seat back to allow sufficient entry space and release the foot lever. -
Page 16: Specifications
Specifications Specifications ISO1000R/ISO7000R Weight ISO1000R - 226 lbs (103 kg) / ISO7000R - 234 lbs (106 kg) Maximum User Weight Premium - 450 lbs (204 kg) / Standard - 500 lbs (227 kg) /Bariatric - 600 lbs (272 kg) Power Self generating w/auto recharge battery back-up. -
Page 17: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, SCIFIT, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 18: How To Get Replacement Parts And Service
Warranty coverages and terms may differ outside the United States. Please contact the SCIFIT office servicing your country (contact information found at the front of this manual) or visit the applicable local SCIFIT website to receive the specific warranty information for your country. - Page 19 NOTES Page 17 of 20...
- Page 20 NOTES Page 18 of 20...
- Page 21 NOTES Page 19 of 20...
- Page 22 A5567C 2020 www.scifit.com...
