Daktronics BA-1018-11 Installation, Maintenance, And Specifications Manual

Single-section outdoor led scoreboards

Table of Contents

Quick Links

Outdoor LED Scoreboards

Installation, Maintenance,

and Specifications Manual

All Sport is a registered trademark of Daktronics, Inc

National Electrical Code

BA-515-11

BA-1018-11

BA-518-11

BA-2003-11

BA-618-11

BA-2004-11

BA-624-11

BA-2005-11

BA-718-11

CT-2001-11

ED12561

Product 1192

Rev 3 – 8 February 2002

preparation of this manual, the publisher assumes no responsibility for

errors or omissions. No part of this book covered by the copyrights

hereon may be reproduced or copied in any form or by any means – graphic, electronic or

mechanical, including photocopying, taping, or information storage and retrieval systems –

without written permission of the publisher.

Note: Please fill in the information below

for your display, and use it as a

reference when calling Daktronics for

assistance.

Scoreboard Serial No. ______________

Scoreboard Model No. ______________

Date Installed_____________________

Single-Section

, Deoxit

and Cailube

are trademarks of their respective companies.

MODELS

CT-2002-11

FB-824-11

MS-915-11

MS-918-11

MS-2002-11

ED12561

MS-2004-11

MS-2006-11

MS-2012-11

SO-824-11

SO-918-11

P.O. Box 5128, 331 32

Ave. Brookings, SD 57006

Tel (605) 697-4036 or (877) 605-1115 Fax (605) 697-4444

www.daktronics.com

e-mail helpdesk@daktronics.com

SO-2008-11

TI-218-11

TI-418-11

TI-2003-11

TI-2017-11

Table of Contents

Troubleshooting

Need help?

Do you have a question about the BA-1018-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daktronics BA-1018-11

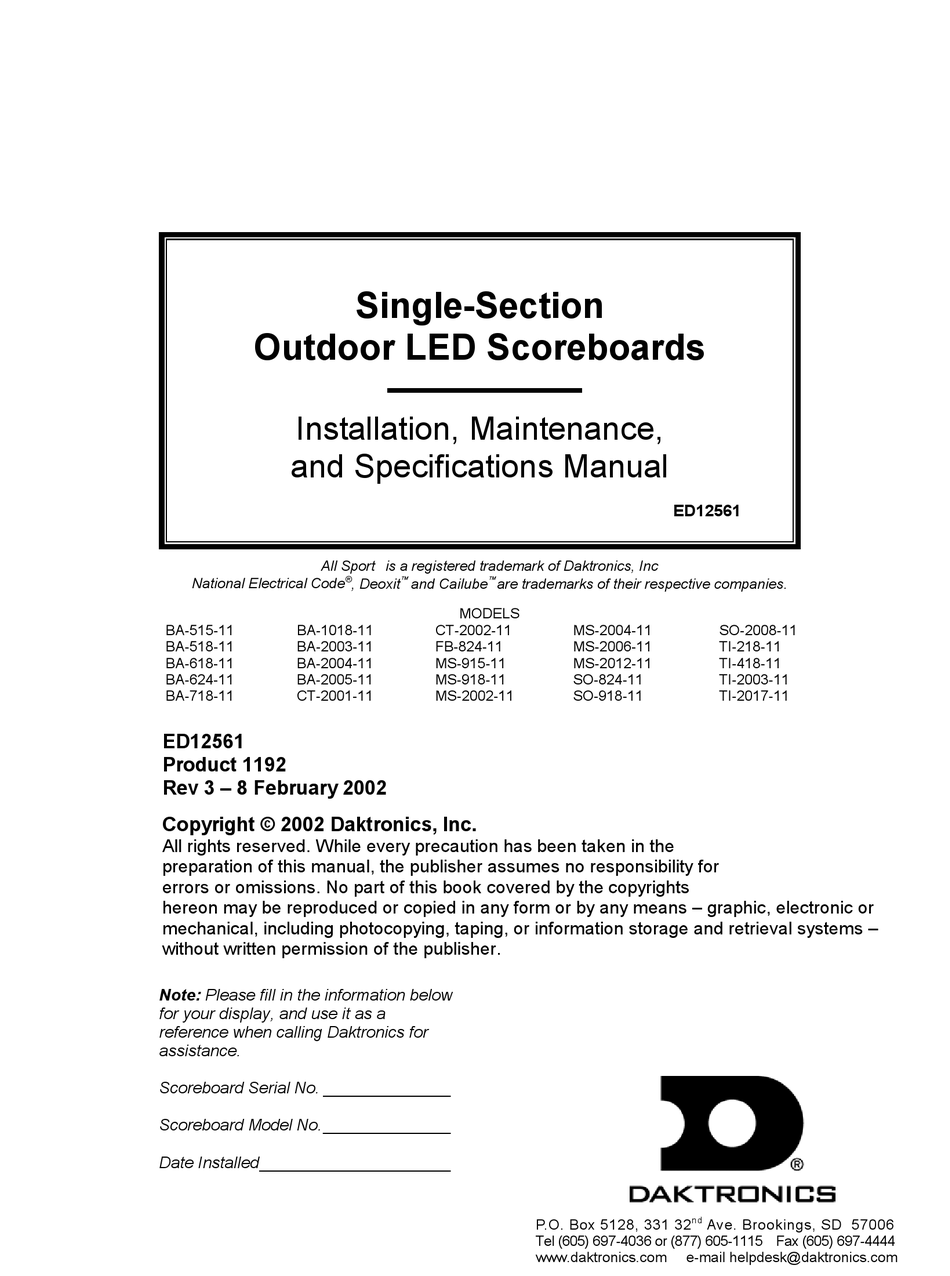

Page 1 Single-Section Outdoor LED Scoreboards Installation, Maintenance, and Specifications Manual ED12561 All Sport is a registered trademark of Daktronics, Inc ® ä ä National Electrical Code , Deoxit and Cailube are trademarks of their respective companies. MODELS BA-515-11 BA-1018-11 CT-2002-11 MS-2004-11...
Page 3: Table Of Contents
Table of Contents Section 1: Introduction ....................1-1 How To Use This Manual................... 1-1 Manual Overview ....................... 1-1 Product Overview ....................... 1-2 Model Identification ....................1-2 Product Safety Approval..................... 1-3 Section 2: Model Identification ..................2-1 Section 3: Specifications....................3-1 Single-Section Scoreboards ..................
Page 4 Power-On Self-Test....................8-3 Lightning Protection....................8-4 Replacement Parts...................... 8-4 Troubleshooting ......................8-5 8.10 Daktronics Exchange and Repair and Return Programs..........8-5 Section 9: Team Name Message Center Maintenance ..........9-1 Team Name Message Center System Overview............9-1 Maintenance and Troubleshooting Overview............. 9-1 Signal Summary ......................
Page 5: Introduction
Figure 1: Daktronics Drawing Label inserted in numerical order in Appendix A. The serial and model number of a Daktronics scoreboard can be found on the ID label, located on the display. This label will be similar to the one shown in Figure 2.
Page 6: Product Overview
Contains ED-7244, a detailed instruction on scoreboard lifting and eyebolts. Product Overview The Daktronics outdoor LED scoreboards are part of a family of scoring and timing displays designed to offer easy installation, readability and reliability. Microprocessor control assures consistent operation and accuracy.
Page 7: Product Safety Approval
1 .5 Product Safety Approval Daktronics Outdoor Scoreboards are ETL-listed, tested to CSA standards and CE-labeled for outdoor use. Contact Daktronics with any questions regarding testing procedures. Introduction...
Page 9: Model Identification
Section 2: Model Identification Use the following drawings to determine your scoreboard's model number. The drawings, located in the Appendix, are grouped with others in alphanumeric order by drawing number. Individual scoreboard drawings are also grouped in the Appendix. Reference Drawings: Single-Section Scoreboard Models ............
Page 11: Specifications
Section 3: Specifications The table on the following pages shows all of the mechanical specifications, circuit specifications, and maximum power requirements for each model in this manual. Models are listed in alphanumeric order. Specifications...
Page 12: Single-Section Scoreboards
Single-Section Scoreboards Note: Signal wires must be a minimum of 22 AWG with shield. Daktronics recommends using W-1234. Model Dimensions Weight Digit Size Maximum Power Amps per Line Driver Number (Height, Width, Uncrated Wattage (Single Phase) and Address Depth) (Crated) BA-515-11 H3’-0”, W6’-0”, D11”...
Page 13 Model Dimensions Weight Digit Size Maximum Power Amps per Line Driver Number (Height, Width, Uncrated Wattage (Single Phase) and Address Depth) (Crated) BA-2004-11 H6'-6", W20'-0", D6" 600 lb Ball, strike, out, 458 W 120 V AC 3.9 A (1981 mm, 6096 mm, 272 kg hit/error 152 mm)
Page 14 Model Dimensions Weight Digit Size Maximum Power Amps per Line Driver Number (Height, Width, Uncrated Wattage (Single Phase) and Address Depth) (Crated) MS-2002-11 H4’-6", W16’-0", D6" 200 lb 24" 205 W 120 V AC 1.7 A (1372 mm, 4877 mm, 91 kg (610 mm) 152 mm)
Page 15 Model Dimensions Weight Digit Size Maximum Power Amps per Line Driver Number (Height, Width, Uncrated Wattage (Single Phase) and Address Depth) (Crated) SO-2008-11 H5'-6", W16'-0", D6" 240 lb 18" 230 W 120 V AC (1676 mm, 4877 mm, 109 kg (457 mm) 152 mm) (456 lb)
Page 17: Component Locations
Component Locations, BA-518-11 A-129868 BA-618-11 Component Locations, BA-618-11 A-129899 BA-624-11 Component Locations, BA-624-11 A-141489 BA-718-11 Component Locations, BA-718-11 A-129903 BA-1018-11 Component Locations, BA-1018-11 A-141589 BA-2003-11 Component Locations, BA-2003-11 A-158302 BA-2004-11 Component Locations, BA-2004-11 A-152749 BA-2005-11 Component Locations; BA-2005-11 A-152929 CT-2001-11 Component Locations;...
Page 19: Schematics
BA-518-11 8-column driver (1) A-141799 BA-618-11 8-column driver (1) A-141799 BA-624-11 8-column driver (1) A-141799 BA-718-11 8-column driver (1) A-141799 BA-1018-11 16-column driver (1) A-141799 BA-2003-11 8-column driver (1) A-141799 BA-2004-11 16-column driver (3) A-142358 BA-2005-11 16-column driver (3) A-142358...
Page 21: Mechanical Installation
The columns and footings and all connection details must be designed and certified by a professional engineer licensed to practice in the state in which the scoreboard will be installed. Daktronics does not assume any liability for any installation derived from the information provided in this manual or installations designed and installed by others.
Page 22: Lifting The Scoreboard
The eyebolts are located along the top of the cabinet for each scoreboard or scoreboard section. Daktronics strongly recommends using a spreader bar, or lifting bar, to lift the display. Using a spreader bar ensures that the force on the eyebolts is straight up, minimizing lifting stress. Lifting methods are shown in the illustration below and in Drawing A-44548.
Page 23: Scoreboard Mounting
Scoreboard Mounting Use the following table to determine the mounting method required for your scoreboard. BA-618-11, BA-624-11, BA-1018-11, BA-2003-11, BA-2004-11, BA-2005-11, FB-824-11, MS-918-11, MS-2002-11, MS-2004-11, MS-2012-11, SO-824-11, Method 1 SO-918-11, SO-2008-11...
Page 24: Method 2
1. Using 3/8" bolts, loosely attach the inner and outer mounting clamps to the rear flanges of the scoreboard horizontal frame members. Measure the beam spacing and position the clamps to fit on either side of the beams. 2. Insert a "...
Page 25: Models Ba-515-11 And Ba-518-11
4. Lift the ad panel into position with the bolts still in place. 5. Place mounting angles over each pair of bolts and secure with lock washers and hex nuts. 6. When the panel is adjusted to the final desired position, tighten hex nuts firmly. When mounting ad panels with back sheets, remove the back sheets in the areas above and below the holes drilled in the upper and lower rear flange of the ad panel.
Page 27: Electrical Installation
Refer to the chart in Section 3 to determine circuit specifications and maximum power requirements for the models described in this manual. Daktronics outdoor LED scoreboards have been designed for easy access to components, and the power and control signal hookup has been simplified. Front panels are removable to allow access to the digits, cabling and other electronic components.
Page 28: Power Installation
Figure 4: Installation with Ground and Neutral Provided disconnect within sight of or at the display. (Daktronics recommends a lockable, knife-switch disconnect at the scoreboard location so that all power lines can be completely disconnected. Use a multi- conductor disconnect so that all hot lines and the neutral can all be disconnected. This is important in protecting the scoreboard against lightning.)
Page 29: Power And Signal Connection
Power and Signal Connection Reference Drawings: Components 8/16 Pos Power and Signal Entrance ....... Drawing A-109114 Components 2/4 Pos Power and Signal Entrance ......... Drawing A-125977 Route power and signal cables into the scoreboard from the rear. There are two knockouts for conduit connection in the back.
Page 31: Scoreboard Maintenance And Troubleshooting
3. Disconnect power when not using the scoreboard. Cabinet Specifications Cabinets for the Daktronics outdoor LED scoreboards are of all-aluminum construction. Exact dimensions and weights for each model are listed in the chart in Section 3. Removable panels for digits and indicators and for component access are detailed in each model's component locations drawing, listed in Section 4.
Page 32: Replacing A Digit
Replacing a Digit The digit circuit board, the platform for the LEDs, is mounted to the back of the digit panel. Do not attempt to remove individual LEDs. In the case of a malfunctioning board, replace the entire digit panel. To remove a scoreboard digit, follow these steps: 1.
Page 33: Led Drivers
LED Drivers Reference Drawings: 16 Column LED Driver II Specifications ..........Drawing A-134371 8 Column LED Driver II Specifications ..........Drawing A-134372 In the scoreboard, the task of switching digits on and off is performed by the LED drivers (refer to Drawings A-134371 and A-124372).
Page 34: Lightning Protection
The control console should also be disconnected from power and from the signal J-box when the system is not in use. The same surges that may damage the scoreboard’s driver can also damage the console’s circuit. Replacement Parts Refer to the following table for Daktronics scoreboard replacement parts. Daktronics Description Location Part No.
Page 35: Troubleshooting
Daktronics' unique Exchange Program is a quick, economical service for replacing key components in need of repair. If a component fails, Daktronics sends the customer a replacement, and the customer, in turn, sends the failed component to Daktronics. This not only saves money but decreases scoreboard downtime.
Page 36 Help Desk – (877) 605-1115 – if you have questions regarding the exchange program or any other Daktronics service. When you call the Daktronics Help Desk, a trained service technician will work with you to solve the equipment problem. You will work together to diagnose the problem and determine which exchange replacement part to ship.
Page 37: Team Name Message Center Maintenance
Standard Daktronics outdoor LED scoreboards are typically front-accessible, but some models may be ordered with rear service access. Because of that, Daktronics team name message centers have been designed so that they may be accessed from both the front and rear for easy maintenance and repair of internal components.
Page 38: Signal Summary
Signal Summary Reference Drawing: Control Layout; Outdoor LED TNMC ............Drawing B-107507 Refer to drawing B-107507 for complete information on TNMC signal routing. From signal input from the All Sport controller, routing can be summarized as follows: 1. Data from the display controller travels via cable harness into the display. 2.
Page 39: Tnmc Current Loop Interface (Cli) Card
The subsections also address any diagnostic LEDs, fuses and signal/power connectors found on the unit. On Drawings A-143808, A-144323, and A-145045, the TNMC components are denoted as follows. Component Part Number Location TNMC interface card 0A-1146-0016 Behind modules, on TNMC back panel (refer to Drawing A-145045) TNMC controller 0A-1146-0061...
Page 40 DIP switches are located on the controller’s MDC (see preceding illustration). These DIP switches set the hardware address that the software uses to identify that particular display. When replacing a controller board, be sure to set the DIP switches in the same address configuration as the defective controller.
Page 41: Modules And Drivers
The controller contains two jumpers (W1 and W2) for use with a modem system. The jumpers must jump both pins for a modem system. Refer to Figure 7 for the location of the jumpers. Removing/Changing the Controller Complete the following steps to remove the controller from the display. 1.
Page 42: Power Supplies
3. If you are accessing the unit from the rear, follow this procedure: While holding onto the module, push it out and turn it in such a manner (generally a sideways, diagonal turn) that it will fit through the frame opening. Then pull the module back through the opening in the fame.
Page 43: Weatherstripping
Weatherstripping To ensure that the display is waterproof, weatherstripping has been provided around the entire display and around each module. It is important that the weatherstripping is installed properly at all times or water may leak into the display and damage the components. TNMC Display Maintenance Complete a yearly inspection to maintain safe and dependable display operation.
Page 44: Initialization Information At Startup
Symptom/Condition Possible Cause/Remedy ¡ A group of modules which share the Replace the power supply assembly. same power supply assembly fails to work ¡ Entire display fails to work Check for proper line voltage into the power termination panel. ¡ Check/replace the ribbon cable from the controller to the modules.
Page 45: 9.10 Tnmc Exchange And Repair And Return Programs
To prevent theft Daktronics recommends purchasing a lockable cabinet to store manuals and replacement and spare parts. 9.10 TNMC Exchange and Repair and Return Programs Refer to Section 8.10 for information on the Daktronics Exchange and Repair and Return programs. TNMC Maintenance...
Page 47: Scoreboard Options
Section 10: Scoreboard Options The following options are available for the Daktronics single-section scoreboards to make them more adaptable to scoring and timing needs: Team name caption kits for certain models Trumpet horn for football and soccer 10.1 Team Name Captions: Models BA-624-11, BA-1518-11 and BA-1524-11 Reference Drawing: Caption Changing ..................
Page 48: 10.2 Trumpet Horn
10.2 Trumpet Horn Reference Drawings: Horn Installation ..................Drawing A-44197 Final Assembly, 12V DC Horn Mounting ..........Drawing A-83333 Schematic, Outdoor Scbbd 12VDC Trumpet Horn AS5K ...... Drawing A-128938 Schematic; 120VAC Trumpet Horn ............Drawing A-132173 The trumpet horn options are only available for installation on scoreboards that have clocks. There are two types of trumpet horns: Internally mounted AC trumpet horn.
Page 49 2. Loosen the screws securing the bottom of the panel and swing it open. 3. Drill two " holes 4" apart near the entrance enclosure. 4. Attach the horn enclosure to the inside of the scoreboard over the " holes using #10 tapping screws.
Page 51: Appendix A: Reference Drawings
Component Locations, BA-515-11 ............... Drawing A-141284 Component Locations, MS-918-11............... Drawing A-141427 Component Locations, BA-624-11 ............... Drawing A-141489 Component Locations, BA-1018-11 ............. Drawing A-141589 Schematic; 8 and 16 Col. O.D. LED Drvr and TNMC........Drawing A-141797 Schematic; 1 Driver..................Drawing A-141799 Schematic;...
Page 52 Component Locations; MS-2004-11............. Drawing A-142627 Component Locations, FB-824-11..............Drawing A-142670 Component Locations, SO-918 ..............Drawing A-142737 Component Locations, SO-824-11 ............... Drawing A-142888 Single Section Scoreboard Models .............. Drawing A-142912 F. Assy; 832 LED TNMC................Drawing A-143808 F. Assy; 848 LED TNMC................Drawing A-144323 Component Layout;...
Page 129 Appendix B: Eyebolts Eyebolts............................ ED-7244 Eyebolts...
Page 131 Eyebolts Almost every display that leaves Daktronics is equipped with eyebolts for lifting the display. There are two standard sizes of eyebolts: ½″ and A″. Load Increase Factor: The load increases as the lift angle (θ) decreases. The allowable load on the eyebolts also decreases with the lift angle due the bending stress on the eyebolts.
Page 132 F. Eyebolts should never be painted or otherwise coated when used for lifting. Such coatings may cover potential flaws in the eyebolt. G. To attain the safe working loads listed for regular eyebolts, 90% of the thread length must be engaged. Copyright 1996-2001 ED-7244 Daktronics, Inc. Rev. 4 – 14 March 2001...
