Summary of Contents for Victrola THE EASTWOOD SIGNATURE VTA-73

  • Page 1 T H E E A S T W O O D S I G N A T U R E MODEL: VTA-73 INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
  • Page 2: Table Of Contents

    CONTENTS Safety Instructions ....................Product Overview ....................Setup/Basic Operation ..................Vinyl Record Operation ..................Bluetooth Operation .................... Bluetooth-Out Operation ..................Maintenance/Proper Handling ................Specifications ...................... Troubleshooting Guide ..................WEEE & CE Statements ..................
  • Page 3 WARNING • Always follow basic safety precautions when using this appliance, especially when children are present. • Children should be supervised to ensure that they do not play with the appliance • Do not damage the power cord, neither do not place any heavy objects on it, do not stretch it or bend it.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS POWER ADAPTER • To disconnect the unit from the main supply, unplug the lead from the main socket. • Only use the supplied main adaptor, as failure to do this may result in a safety risk and/or damage to the unit.
  • Page 5: Product Overview

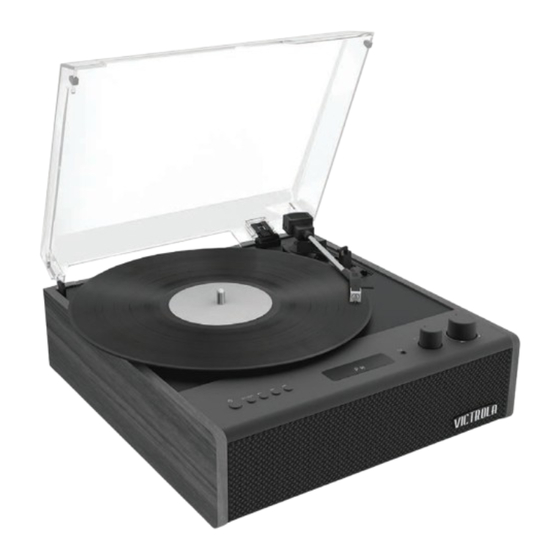

    PRODUCT OVERVIEW Front View 1. POWER: Press to turn the unit ON or OFF. 2. BT OUT: Press to activate the Bluetooth output function. 3. PLAY/PAUSE Press to start playback, press again to pause. Long press the button for 3 seconds to disconnect the Bluetooth pairing. (NOTE: This button only works in Bluetooth mode.) 4.
  • Page 6 PRODUCT OVERVIEW 10. LINE OUT jacks For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the white plug to the white jack and the red plug to the red jack.
  • Page 7: Setup/Basic Operation

    SETUP/BASIC OPERATION Setup 1. Remove white protective needle cover by gently pulling towards front of unit. 2. Remove any packaging materials from the unit. 3. Connect the power adapter to the DC Input jack to power on the unit. Note: - It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label.
  • Page 8: Vinyl Record Operation

    VINYL RECORD OPERATION 1. Turn the unit ON by pressing the POWER button. Turn the BT/PHONO KNOB to enter the PHONO mode. Gently open the dust cover. Put the record on the turntable. Select the speed. When playing a 45 RPM record, use the included 45 adaptor. Gently push the Tone Arm holder to the right to release the TONE ARM.
  • Page 9: Bluetooth Operation

    BLUETOOTH OUT OPERATION An external device with Bluetooth Connectivity can be wirelessly connected to this turntable using the Bluetooth Function. GETTING CONNECTED USING BLUETOOTH 1. Turn the BT/PHONO KNOB to select BT mode. The "bt" will flash on the Display Screen. 2.
  • Page 10: Maintenance/Proper Handling

    MAINTENANCE/PROPER HANDLING Handling Vinyl Records • Do not touch the record's grooves. Only handle records by the edges or the label with clean hands. Touching the record surface will cause your record's quality to deteriorate. • To clean a record, use a soft anti-static cloth to gently wipe the record surface. •...
  • Page 11: Specifications

    SPECIFICATIONS GENERAL Power Adapator ------------------ 9V/1.5A Power Consumption ------------- 13.5W Power Output --------------------- 2 x 5 W Size -------------------------------- 12.7’’ (322mm) W x 12.3 (312mm) D x 5.2” (131mm) H Weight ----------------------------- 4.5 lbs (2kg) Operating Temperature ---------- 5°C - + 40°C RECORD PLAYER Speeds ---------------------------- 33-1/3 RPM, 45RPM and 78 RPM BLUETOOTH...
  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Symptom Possible Cause Solution • No Sound. • The unit is not switched • Ensure the unit is to Bluetooth mode. switched to BT mode. • Your device’s and/or • Move your Bluetooth your unit’s volume is device closer to unit. not turned up.
  • Page 13: Weee & Ce Statements

    Other trademarks and trade names are those of their respective owners. This product has been manufactured and sold under the responsibility of Innovative Technology Electronics LLC. Victrola is a trademark used under license by Innovative Technology Electronics LLC. - further information at victrola-brand.com.
  • Page 14 This product has been manufactured and sold under the responsibility of Innovative Technology Electronics LLC. Victrola is a trademark used under license by Innovative Technology Electronics LLC. – further information at victrola-brand.com. All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.
