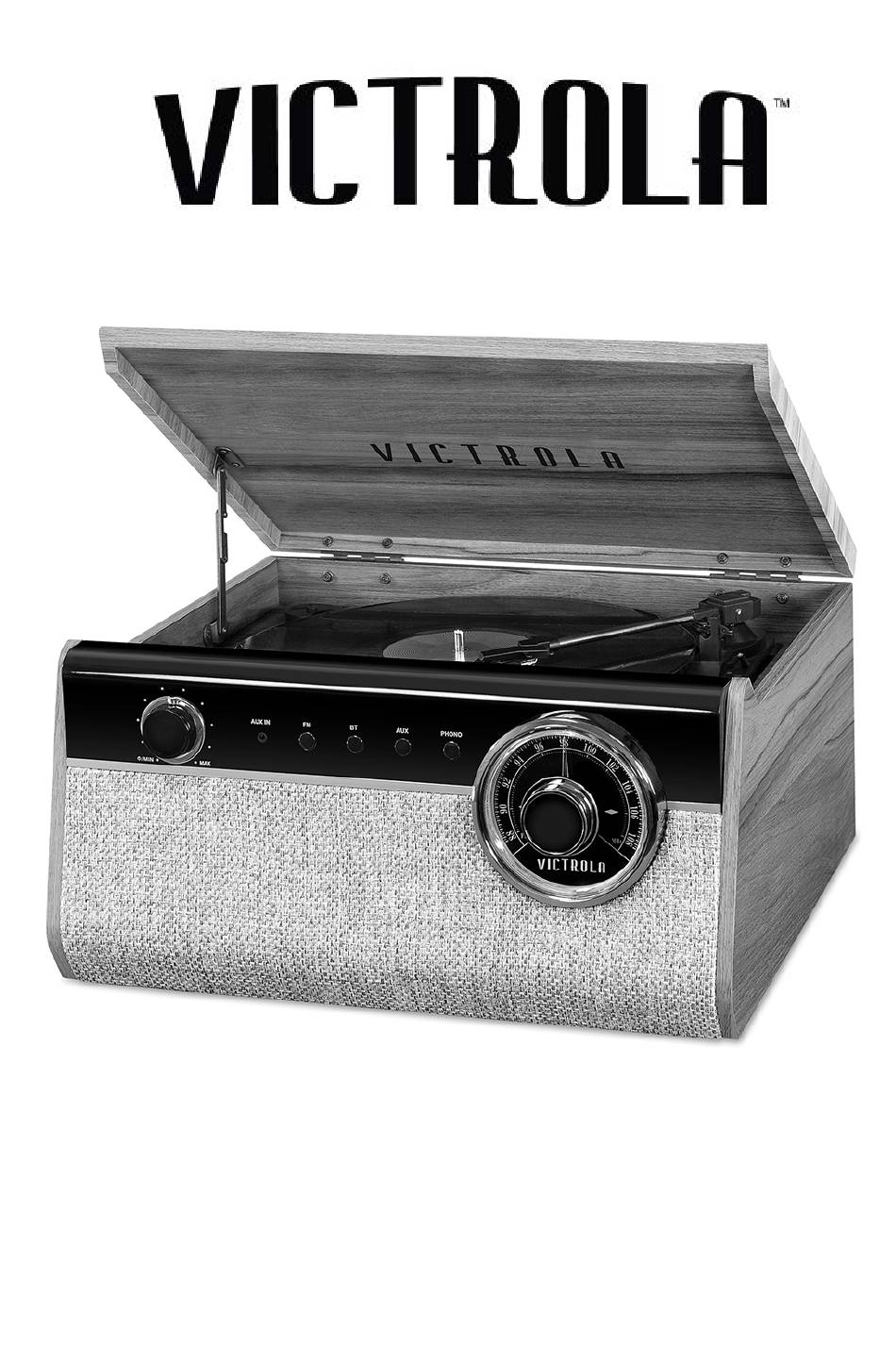

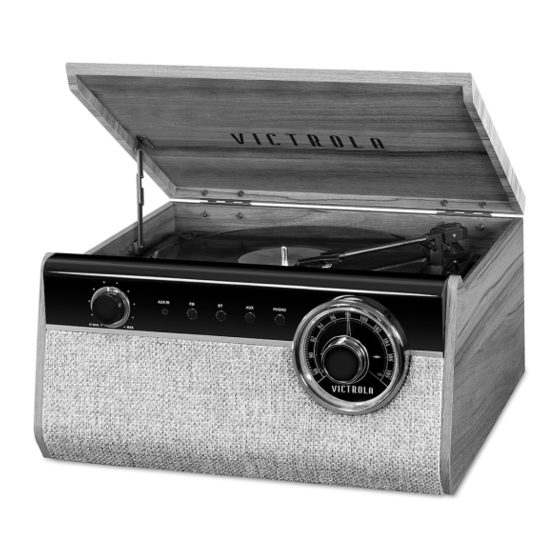

- Page 1 MODEL: VTA-280B AUSTIN 4-IN-1 TURNTABLE...
-
Page 2: Table Of Contents
Important Safety Instructions ..................3 Product Overview ...................... 5 Setup / Basic Operation ..................... 8 Listening to the FM Radio ..................8 Listening to an External Audio Device (BT Mode) ..........8 Listening to an External Audio Device (AUX Mode) ..........9 Listening to a Vinyl Record.................. -
Page 3: Important Safety Instructions
CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. Important Safety Instructions Read these instructions –... - Page 4 -This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside.
-
Page 5: Product Overview
Product Overview Front View POWER VOLUME Rotate clockwise to turn the unit ON. Rotate counter-clockwise to turn the unit OFF. When unit is ON, rotate to adjust the volume. 3.5mm AUX-IN JACK: Connect your external source to the AUX-IN jack. FM: Press to switch to FM function. - Page 6 Rear View LINE OUT jacks For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the white plug to the white jack and the red plug to the red jack.
- Page 7 Parts of the Turntable A. Turntable B. Safety Screw (for transport) Before using the unit, turn the screw clockwise using a coin or screwdriver. Important: When you transport the unit, turn the screw counterclockwise to secure the turntable. C. Speed Selector D.
-
Page 8: Setup / Basic Operation
Setup / Basic Operation Setup 1. Remove white protective needle cover by gently pulling towards front of unit. 2. Remove any packaging materials from the unit. 3. Connect the AC power cord to a wall outlet. Note: -It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label. -
Page 9: Listening To An External Audio Device (Aux Mode)
Listening to an External Audio Device (AUX Mode) Press the AUX button to switch to AUX-IN function, AUX button will light up. In AUX (auxiliary) mode, this unit can play audio from an external audio source (iPod, MP3 Player, Portable CD Player, etc.) There is a AUX-IN jack on the front side of the unit. -
Page 10: Maintenance / Proper Handling
Maintenance / Proper Handling Handling Vinyl Records Do not touch the record’s grooves. Only handle records by the edges or the label with clean hands. • Touching the record surface will cause your record’s quality to deteriorate. To clean a record, use a soft anti-static cloth to gently wipe the record surface. •... -
Page 11: Specifications
Specifications GENERAL Power Requirements AC 120 V~ 60 Hz Power Consumption Dimensions (W x H x D) 16.5 in x 7.8 in x 15.2 in (approx.) 420 x 200 x 387.5mm (approx.) Weight 15.43 lbs (approx.) . (approx.) AMPLIFIER Output Power 5 W + 5 W Frequency Response 60 to 20,000 Hz... -
Page 12: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Cause Solution Unit will not power on. Unit is unplugged. Connect the unit to the • • • AC power supply. No sound output from The volume level is set too low. Adjust the volume. • •... -
Page 13: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 14: Ic Statement
IC Statement This device complies with RSS247 of Industry Canada. Cet appareil se conforme à RSS247 de Canada d'Industrie. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. - Page 15 To obtain service, the purchaser MUST present an original sales receipt / proof of purchase. Please contact us at www.victrola.com to request an RMA (Return Material Authorization) number to return products for service or replacement. Returns without an RMA number on the package will be refused and returned to sender.
