Nuvoton N9H30F61IEC User Manual

Arm arm926el-s based 32-bit microprocessor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NK-N9H30
®
ARM
ARM926EL-S Based
32-bit Microprocessor
N9H30F61IEC
NuDesign NK-N9H30
User Manual
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system
design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Oct. 25, 2019
Page 1 of 36
Rev 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N9H30F61IEC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nuvoton N9H30F61IEC

Summary of Contents for Nuvoton N9H30F61IEC

  • Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system design. Nuvoton assumes no responsibility for errors or omissions.

  • Page 2: Table Of Contents

    NuDesign NK-N9H30 － GPIO List Schematic ..........23 NuDesign NK-N9H30 － System Block Schematic ..........23 NuDesign NK-N9H30 － Power Schematic ............24 NuDesign NK-N9H30 － N9H30F61IEC Schematic ..........25 NuDesign NK-N9H30 － Setting, ICE, RS-232_0, Key Schematic ......26 NuDesign NK-N9H30 － Memory Schematic ............ 27 NuDesign NK-N9H30 －...

  • Page 3: Overview

    Nuvoton’s NuDesign NK-N9H30 development board is a specific development tool based on Nuvoton’s N9H30F61IEC IC to provide customers with a low cost and ease of development. It can be easily customized for customers to provide their own HMI (Human Machine Interface) device server products.
  • Page 4 NK-N9H30 Figure 1-2 NuDesign NK-N9H30 Development Board (Rear View) Oct. 25, 2019 Page 4 of 36 Rev 2.0...

  • Page 5: Introduction To Nudesign Nk-N9H30 Board

    NK-N9H30 INTRODUCTION TO NUDESIGN NK-N9H30 BOARD The NuDesign NK-N9H30 solution uses an outstanding CPU core ARM926EJ-S, N9H30F61IEC IC which runs up to 300 MHz and features the embedded 64MB DDR memory, with 16 KB I- cache, 16 KB D-cache and MMU, 56 KB embedded SRAM and 16 KB IBR (Internal Boot ROM) for booting from SPI Flash or booting from NAND Flash.

  • Page 6: Nudesign Nk-N9H30 Board － Front View

    NK-N9H30 2.2 NuDesign NK-N9H30 Board － Front View Figure 2-1 shows the main components and connectors from the front view of NuDesign NK- N9H30 board.  NuDesign NK-N9H30 board and LCD panel board combination connector (CON8). Support 4W/5W resistive touch panel for 24bits RGB888 interface Connector GPIO pin of N9H30 Function...
  • Page 7 NK-N9H30 CON8.28 GPA4 LCD_D4(B4) CON8.29 GPA3 LCD_D3(B3) CON8.30 GPA2 LCD_D2(B2) CON8.31 GPA1 LCD_D1(B1) CON8.32 GPA0 LCD_D0(B0) CON8.33 CON8.34 CON8.35 CON8.36 CON8.37 GPB2 LCD_PWM CON8.38 GPG4 LCD_RST CON8.39 CON8.40 CON8.41 ADC7 CON8.42 ADC3 Vsen CON8.43 ADC6 CON8.44 ADC4 CON8.45 CON8.46 ADC5 CON8.47 CON8.48 CON8.49...
  • Page 8 GPE15 Row1 GPB5 Col1 GPE14 Row2 GPB4 Col0 GPE14 Row2 GPB5 Col1  NAND Flash (128 MB) with Winbond W29N01HVS1NA (U9).  Microphone (M1): Through the nuvoTon NAU88C22 IC sound input. Oct. 25, 2019 Page 8 of 36 Rev 2.0...
  • Page 9 NK-N9H30  Audio CODEC IC (U10): nuvoTon NAU88C22 IC connects to N9H30 using I2S interface.  SW6/SW7/SW8: 1-2 short for RS-485_6 function and connected to 2P terminal (CON5 and J5).  SW6/SW7/SW8: 2-3 short for I2S function and connected to NAU88C22 (U10).
  • Page 10 NK-N9H30 CMOS Sensor connector (CON10, SW9~10) CAN Transceiver Combination connector RS-485 Transceiver (U13) (CON8) (U11) RS-232 Transceivers (U6, U12) NAND Flash (U9) 6sets user SWs Microphone Power supply switch (K1~K6) (M1) (SW_POWER1) 3set indication LEDs Audio CODEC chip (LED1~LED3) (U10, SW6~8) Figure 2-1 NuDesign NK-N9H30 Board (Front View) Oct.

  • Page 11: Nudesign Nk-N9H30 Board － Rear View

    NK-N9H30 2.3 NuDesign NK-N9H30 Board － Rear View Figure 2-2 shows the main components and connectors from the rear view of NuDesign NK- N9H30 board.  +5V in (CON1): Power adaptor 5V input.  JTAG ICE interface (J2). Connector GPIO pin of N9H30 Function J2.1 Power 3.3V...
  • Page 12 NK-N9H30 CON7.10 GPH7 UART1_CTS CON7.11 GPI1 UART7_TXD CON7.12 GPH8 UART4_TXD CON7.13 GPI2 UART7_RXD CON7.14 GPH9 UART4_RXD CON7.15 CON7.16 GPH10 UART4_RTS CON7.17 CON7.18 GPH11 UART4_CTS CON7.19 CON7.20 CON7.21 GPB12 UART10_TXD CON7.22 GPH12 UART8_TXD CON7.23 GPB13 UART10_RXD CON7.24 GPH13 UART8_RXD CON7.25 GPB14 UART10_RTS CON7.26 GPH14...
  • Page 13 NK-N9H30 J6.4 GPF14 UART2_CTS  RS-232_2 function and connected to DB9 female (CON6) for debug message output.  GPF11~14 connected to 4P terminal (J6).  RS-485_6 selection (CON5, J5, SW6~8): GPIO pin of N9H30 Function GPG11 RS-485_6_DI GPG12 RS-485_6_RO GPG12 RS-485_6_ENB ...
  • Page 14 NK-N9H30 UART0 debug message Open State Function NAND Flash page size S7/S6 Short/Short S7/S6 NAND Flash page size Short/Open S7/S6 NAND Flash page size Open/Short S7/S6 Open/Open Ignore State Function NAND Flash ECC type S9/S8 Short/Short BCH T12 S9/S8 NAND Flash ECC type Short/Open BCH T15 S9/S8...
  • Page 15 RJ45_1 connector with LED indicator (CON13), RMII PHY with IP101GR (U16)  Micro-SD/TF card slot (CON3)  SOC CPU: nuvoTon N9H30F61IEC (U5)  Battery power for RTC 3.3V powered (BT1, J1), can detect voltage by ADC0 RTC power has 3 sources: ...
  • Page 16 (CON5, J2, SW6~8) (SW4, S2~S9) (CON9, SW9~10) (CON11, SW9~10) USB0 Device/HOST (CON14, F1) RS-232_2 DB9 (CON6, J6) RMII PHY (U14, U16) USB1 HOST (CON15, F2) N9H30F61IEC RS-232_0 DB9 (U5) RJ45_0 (CON2, J3) (CON12) RTC battery (BT1, J1) RJ45_1 (CON13) Expand port (CON7) Micro SD slot Board Version 2.0...

  • Page 17: Nudesign Tft-Lcd5 － Front View

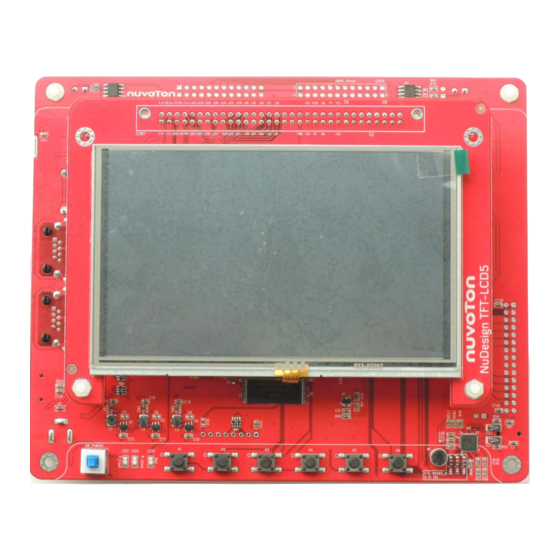

    NK-N9H30 2.4 NuDesign TFT-LCD5 － Front View Figure 2-3 shows the main components and connectors from the Front view of NuDesign TFT- LCD5 board.  5” resolution 800x480 4W resistive touch panel for 24bits RGB888 interface 5" touch panel Figure 2-3 NuDesign TFT-LCD5 Board (Front View) Oct.

  • Page 18: Nudesign Tft-Lcd5 － Rear View

    NK-N9H30 2.5 NuDesign TFT-LCD5 － Rear View Figure 2-4 shows the main components and connectors from the rear view of NuDesign TFT- LCD5 board.  NuDesign NK-N9H30 and NuDesign TFT-LCD5 combination connector (CON1). Combination connector (CON1) Figure 2-4 NuDesign TFT-LCD5 Board (Rear View) Oct.

  • Page 19: Nudesign Nk-N9H30 And Nudesign Tft-Lcd5 Pcb Placement

    NK-N9H30 2.6 NuDesign NK-N9H30 and NuDesign TFT-LCD5 PCB Placement The following figure shows NuDesign NK-N9H30 and NuDesign TFT-LCD5 PCB placement. Figure 2-6 NuDesign NK-N9H30 Front PCB Placement Oct. 25, 2019 Page 19 of 36 Rev 2.0...
  • Page 20 NK-N9H30 Figure 2-7 NuDesign NK-N9H30 Back PCB Placement Oct. 25, 2019 Page 20 of 36 Rev 2.0...
  • Page 21 NK-N9H30 Figure 2-8 NuDesign TFT-LCD5 Front PCB Placement Oct. 25, 2019 Page 21 of 36 Rev 2.0...
  • Page 22 NK-N9H30 Figure 2-9 NuDesign TFT-LCD5 Back PCB Placement Oct. 25, 2019 Page 22 of 36 Rev 2.0...

  • Page 23: Nudesign Nk-N9H30 And Nudesign Tft-Lcd5 Schematics

    NK-N9H30 NUDESIGN NK-N9H30 AND NUDESIGN TFT-LCD5 SCHEMATICS 3.1 NuDesign NK-N9H30 － GPIO List Schematic 3.2 NuDesign NK-N9H30 － System Block Schematic Oct. 25, 2019 Page 23 of 36 Rev 2.0...

  • Page 24: Nudesign Nk-N9H30 － Power Schematic

    NK-N9H30 3.3 NuDesign NK-N9H30 － Power Schematic Oct. 25, 2019 Page 24 of 36 Rev 2.0...

  • Page 25: Nudesign Nk-N9H30 － N9H30F61Iec Schematic

    NK-N9H30 3.4 NuDesign NK-N9H30 － N9H30F61IEC Schematic Oct. 25, 2019 Page 25 of 36 Rev 2.0...

  • Page 26: Nudesign Nk-N9H30 － Setting, Ice, Rs-232_0, Key Schematic

    NK-N9H30 3.5 NuDesign NK-N9H30 － Setting, ICE, RS-232_0, Key Schematic Oct. 25, 2019 Page 26 of 36 Rev 2.0...

  • Page 27: Nudesign Nk-N9H30 － Memory Schematic

    NK-N9H30 3.6 NuDesign NK-N9H30 － Memory Schematic Oct. 25, 2019 Page 27 of 36 Rev 2.0...

  • Page 28: Nudesign Nk-N9H30 － I2S, I2C_0, Rs-485_6 Schematic

    NK-N9H30 3.7 NuDesign NK-N9H30 － I2S, I2C_0, RS-485_6 Schematic Oct. 25, 2019 Page 28 of 36 Rev 2.0...

  • Page 29: Nudesign Nk-N9H30 － Rs-232_2 Schematic

    NK-N9H30 3.8 NuDesign NK-N9H30 － RS-232_2 Schematic Oct. 25, 2019 Page 29 of 36 Rev 2.0...

  • Page 30: Nudesign Nk-N9H30 － Lcd Schematic

    NK-N9H30 3.9 NuDesign NK-N9H30 － LCD Schematic Oct. 25, 2019 Page 30 of 36 Rev 2.0...

  • Page 31: Nudesign Nk-N9H30 － Cmos Sensor, I2C_1. Can_0 Schematic

    NK-N9H30 3.10 NuDesign NK-N9H30 － CMOS Sensor, I2C_1. CAN_0 Schematic Oct. 25, 2019 Page 31 of 36 Rev 2.0...

  • Page 32: Nudesign Nk-N9H30 － Rmii_0_Pf Schematic

    NK-N9H30 3.11 NuDesign NK-N9H30 － RMII_0_PF Schematic Oct. 25, 2019 Page 32 of 36 Rev 2.0...

  • Page 33: Nudesign Nk-N9H30 － Rmii_1_Pe Schematic

    NK-N9H30 3.12 NuDesign NK-N9H30 － RMII_1_PE Schematic Oct. 25, 2019 Page 33 of 36 Rev 2.0...

  • Page 34: Nudesign Nk-N9H30 － Usb Schematic

    NK-N9H30 3.13 NuDesign NK-N9H30 － USB Schematic Oct. 25, 2019 Page 34 of 36 Rev 2.0...

  • Page 35: Nudesign Tft-Lcd5 － Lcd Schematic

    NK-N9H30 3.14 NuDesign TFT-LCD5 － LCD Schematic Oct. 25, 2019 Page 35 of 36 Rev 2.0...

  • Page 36: Revision History

    1. Change N9H30K41I to N9H30F61IEC Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
