Expansion Module for
ServSwitch™ Affinity

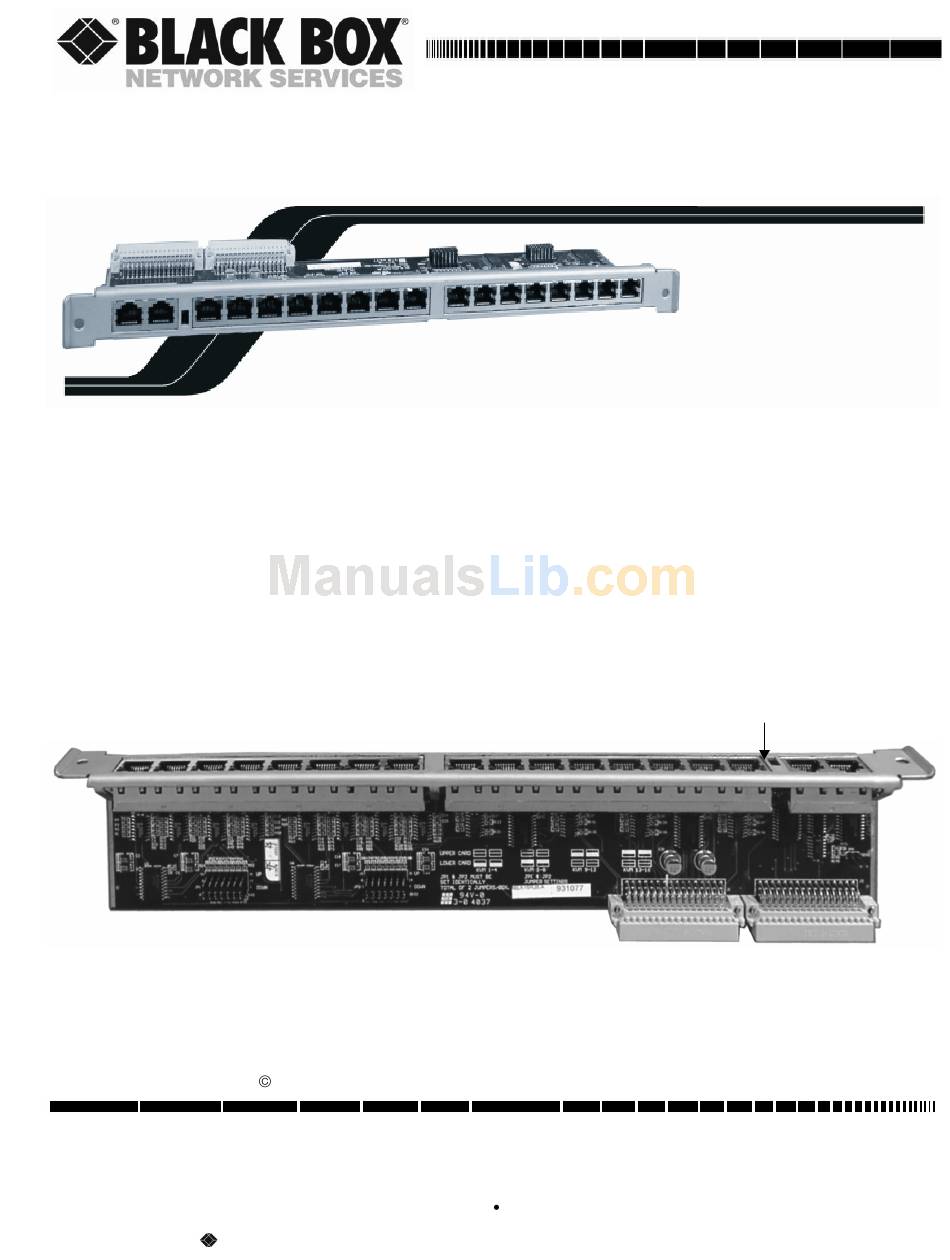

Install an Expansion module for the ServSwitch™ Affinity (Product code KV13XA) in your switch unit to prepare that
Switch to be interconnected (daisychained) with other ServSwitch™ Affinity units in your system. The RJ45
expansion module can also be used to replace existing HD15 expansion cards. Each Module has a DATA IN and
DATA OUT connector, eight BUS IN connectors, and eight BUS OUT connectors as shown in the illustration above.
The eight connectors on the right are BUS 1-8 OUT, the center eight connectors are BUS 1-8 IN, and the left two
connectors are DATA IN and DATA out. These are used to communicate information between interconnected
switches. BUS 1-8 OUT transmit and BUS 1-8 IN receive the video signals to and from other interconnected
switches.
Before you install expansion modules in a daisychained ServSwitch Affinity system, you might need to set the SW1
switch, depending on which unit is being set-up. In a "BUS" topology consisting of four ServSwitch Affinity units, set
Unit #3, and #2 SW1 switch off. Unit #1 and Unit #4 would have the SW1 switch on.
BUS
BUS
BUS
8 OUT 7 OUT 6 OUT 5 OUT 4 OUT 3 OUT 2 OUT 1 OUT
The 8-Port Expansion Card for the 8-User and 16-User ServSwitch Affinity models have two jumpers labeled JP1
and JP2 that control the numbering of an Affinity chassis' user ports. If the card is going into an 8-user Affinity
chassis, follow the directions printed on the card's circuit board for the "lower" card, even though there is only one
card and its slot is at the top of the chassis:
CUSTOMER
SUPPORT
INFORMATION
BLACK BOX and the
logo are registered trademarks, and ServSwitch and Affinity ServSwitch are trademarks, of Black Box Corporation
BUS
BUS
BUS
BUS
BUS
Copyright 2004, Black Box Corporation. All rights reserved.
Order toll-free in the U.S.; Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com
BUS
BUS
BUS
BUS
BUS
8 IN
7 IN
6 IN
5 IN
4 IN
E-mail: info@blackbox.com
SW1
BUS
BUS
BUS
DATA DATA
3 IN
2 IN
1 IN
OUT
May 2004
KV1308C
IN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KV1308C and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Box KV1308C

  • Page 1 Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com BLACK BOX and the logo are registered trademarks, and ServSwitch and Affinity ServSwitch are trademarks, of Black Box Corporation 8 IN 7 IN 6 IN E-mail: info@blackbox.com...
  • Page 2 RJ45 EXPANSION MODULE FOR AFFINITY SERVSWITCH™ Set JP1 and JP2 both to the DOWN position if you want the Affinity system to recognize any user on slot (port card) 1 as “KVM 1,” any user on slot (port card) 2 as “KVM 2,” and so on. (This is the default setting.) Set JP1 and JP2 both to the UP position if you want the Affinity system to recognize any user on slot 1 as “KVM5,”...
