Summary of Contents for Spartus Easy 1500

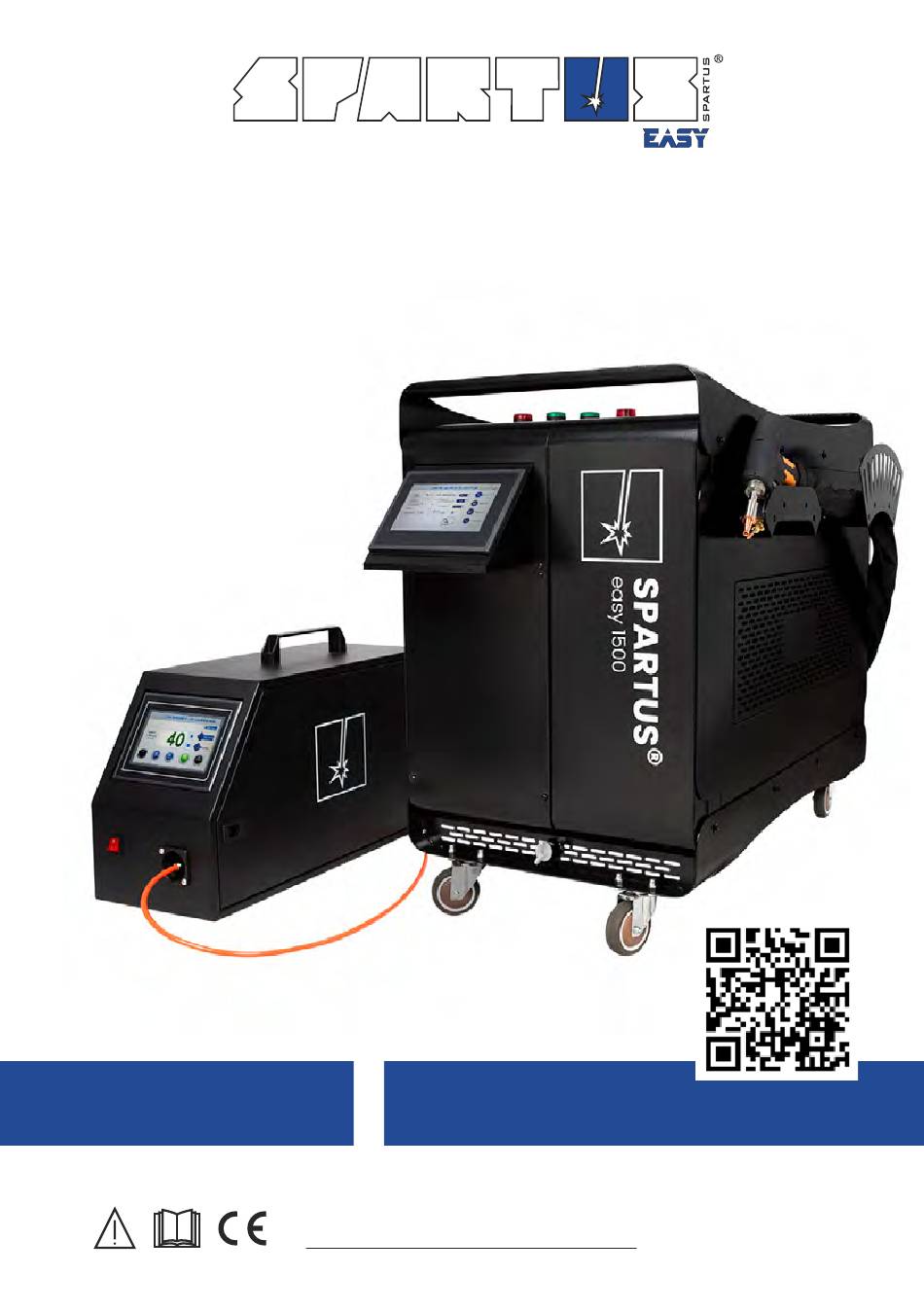

- Page 1 Spawarka laserowa SPARTUS®Easy Laser welding machine SPARTUS® Easy 1500 Instrukcja obsługi User’s manual...
- Page 2 Tylko sprzęt wysokiej jakości może zapewnić odpowiednią niezawodność i wydajność przy prowadzeniu w/w procesów. I takie właśnie są produkty SPARTUS® – przede wszystkim niezawodne i trwałe, ale również wszechstronne. Wnikliwie wsłuchujemy się w potrzeby klientów, stąd w naszej ofercie znajduje się tak bogaty asortyment.
-
Page 3: Table Of Contents
7.2 Movement and handling ............................11 7.3 Description of construction ..........................12 7.4 Wire feeder .................................. 14 7.5 SPARTUS® F210 handheld welding head ......................15 7.6 Nozzles and tips ................................. 16 7.7 Fiber optic ..................................16 7.8 Connecting to power supply ..........................16 7.9 Installation and use .............................. -
Page 4: Safe Use - Hazards Associated With Arc/Laser Welding And Plasma Cutting
USER’S MANUAL 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC/LASER WELDING AND PLASMA CUTTING Arc/laser welding and plasma cutting are pro- feeder fitted with spool and harness). Care cesses that can pose hazards for the operator shall be taken during manual handling. and persons in his vicinity. -
Page 5: Welding Arc Radiation Can Be Dangerous
USER’S MANUAL Welding arc radiation can be direct or reflec- • Power supply must never be connected before the accessories of SK sockets/con- ted from surfaces such as bright metals and nectors are properly installed in the device. light coloured objects. •... -
Page 6: Vapours And Gases Can Be Dangerous
USER’S MANUAL 1.3.3 Protection of persons in the vicinity quantity of welding fume generated should be of an arc/laser beam investigated, after which the control of welding • Protect the remaining personnel present fume at source should be considered. The use in the vicinity of welding works against of respiratory equipment should not be con- negative impact of arc/laser beam radiation... -
Page 7: Noise Can Be Harmful
USER’S MANUAL NOISE CAN BE HARMFUL • Before setting to perform welding opera- tions, ensure that elements involving fire hazard are removed from the zone where welding operations will take place. If it is impossible, protect all flammable elements against the impact of sparks. Remember that sparks and hot metal may penetrate through small cracks and openings into the In the welding environment, damaging levels of... -
Page 8: Other Hazards
USER’S MANUAL • Use gas cylinders with appropriate shielding • Use appropriate tools to grip and handle hot gas, foreseen for a particular process. Addi- elements and wear special welding gloves tional equipment (pressure regulator, hoses, and clothing that protects against burns. connectors) should be in good technical 1.7.2 Plasma arc is dangerous condition. -
Page 9: Other Informations
USER’S MANUAL cutting involves high frequency ignition, it can interfere with mobile phones, radio equi- pment, TV equipment or improperly protected computers and industrial robots, which leads to total disabling of such devices. 1.8 OTHER INFORMATIONS When performing welding work, you must apply equally to the health and safety requi- rements contained in the current normative acts, applicable in your country. -
Page 10: Electromagnetic Compatibility (Emc)
USER’S MANUAL • Place your torso and head as far away as possible from the welding circuit. • Never coil welding cables around your body. • Do not place your body between welding cables. Keep both welding cables on the same side of your body. -
Page 11: Conformity With Standards

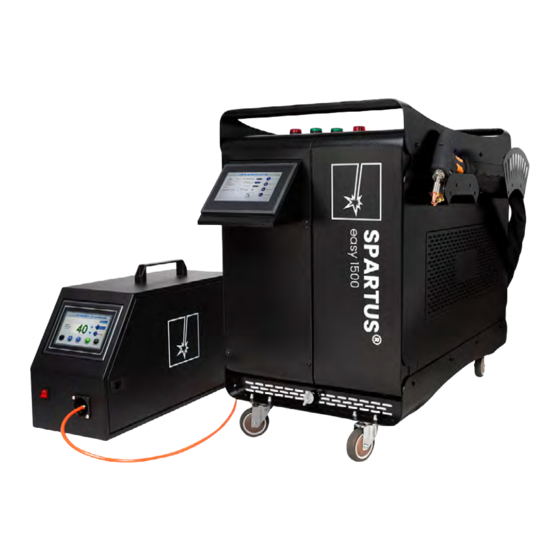

5. GENERAL DESCRIPTION SPARTUS® Easy 1500 SPARTUS® Easy 1500 laser welding machine is a new generation of laser welding products, which is easy to install and simple to operate. Laser welding is the process of using a laser beam as a heat source to heat the parts to be welded and melt them to form welded joints. -
Page 12: Purpose Of Use
USER’S MANUAL 5.1 PURPOSE OF USE SPARTUS® Easy 1500 laser welding machine is designed for laser welding, cutting and cleaning. 6. TECHNICAL SPECIFICATIONS 6.1 OPERATION, STORAGE AND TRANSPORT Conditions during operation, storage and transport Range of ambient air temperature 0°C to +40°C... -
Page 13: Installation And Use
7.2 MOVEMENT AND HANDLING SPARTUS® Easy 1500 laser welding machine is equipped with sturdy casters, making it easier to move the device. Be careful! If the wheels or transport handle are damaged, repairs should... -
Page 14: Description Of Construction
USER’S MANUAL 7.3 DESCRIPTION OF CONSTRUCTION 7.3.1 Laser welding machine 7.3.1.1 Source Emergency Laser stop button Alarm Power Cooler Transport handle Operation panel Control panel Cooler Power cable ON/OFF switch Wire feeder connector Shield gas input joint... - Page 15 USER’S MANUAL 7.3.1.2 Wire feeder Operation panel ON/OFF switch Welding wire outlet Power Control socket (connection to the source) Spool holder Wire feed tension adjustment Wire feed tension arms Wire feeder inlet guide Wire feeder rollers 7.3.1.3 Water cooler Water inlet Water level calibration Trigger valve Control panel...
-
Page 16: Wire Feeder
WIRE FEEDER The wire feeder on the SPARTUS® Easy 1500 laser welder is a device that precisely delivers wel- ding material to the welding area. This is crucial for controlling welding parameters, improving weld quality, and enhancing process efficiency. It automates the wire delivery, allowing the operator to focus on monitoring the welding process. -
Page 17: Spartus® F210 Handheld Welding Head
1. On the main screen, click on Setting. From this level you can enter advanced feeder settings. 2. If you want to save the configured settings after setting them up, click Save, and then Return to start working with the specified parameters. SPARTUS® F210 HANDHELD WELDING HEAD... -
Page 18: Nozzles And Tips
USER’S MANUAL Nozzle Mirror Graduated tube (focal length regulator) Collimator lens Drawer Trigger button (microswitch) Protective lens Welding wire feeding system in the head Focus lens NOZZLES AND TIPS SP050-10-008 Nozzle (0.8mm) SP050-10-010 Nozzle (1.0mm) SP050-10-012 Nozzle (1.2mm) SP050-10-016 Nozzle (1.6mm) SP050-10-003 Cutting nozzle SP050-12-010... -
Page 19: Installation And Use
USER’S MANUAL 7.9 INSTALLATION AND USE Before connecting the equipment and compressed air to the device, make sure that the unit is disconnected from the source power. • Check whether the appearance of the equipment is normal, and whether the output cable is bent, damaged and has other faults;... - Page 20 USER’S MANUAL 4. If welding is to be done using wire, configure the settings on the feeder appropriately and arm the laser head. 5. Connect the safety wire to the workpiece. 6. With the laser activation turned off, check the proper gas flow (8-9 l/min) by pressing the microswitch on the laser head several times (the nozzle must touch the welded component).
- Page 21 USER’S MANUAL 3. In TECHNOLOGY, set the width and scaling speed to 0mm, and the power to 1500W. Save the settings and import them. 4. Set the red light indicator to Dot. 5. With laser activation turned off, check if the gas flow is correct by pressing the microswitch on the laser head several times (the nozzle must touch the cutting element).
- Page 22 USER’S MANUAL To access the Settings, please use the control panel (enter the password „123456”). 4. Set the appropriate scaling width (30/80/120mm). Apply the remaining parameters as shown in the picture. Save the settings, and then return to the main menu. 5.
-
Page 23: Error Display - Cooler Control Panel
USER’S MANUAL 7.11 ERROR DISPLAY – COOLER CONTROL PANEL When the machine detects a fault, the display alternates between the temperature and the fault code „Exx”. If there is more than one fault, the next fault will be automatically displayed on the screen after making the change. -
Page 24: Environmental Protection
USER’S MANUAL Maintenance and replacement methods of protective lenses – Before starting work, wash your hands with detergent and then dry them again with a wet cotton ball soaked in alcohol. Put on powder-free or rubber/latex gloves. – Press and hold the latch of the drawer cover on the laser head, open the cover, remove the protective lens holder, wipe the inside of the compartment and the cover inside with a cotton ball soaked in alcohol (99%), wipe it dry, and quickly close the cover. - Page 25 Prezentacja spawarki laserowej SPARTUS® Easy 1500 The presentation of the SPARTUS® Easy 1500 laser welder...
- Page 26 Wideoprezentacje produktów Videopresentation of products Subskrybuj kanał SPARTUS.INFO Subscribe to the channel SPARTUS.INFO...
