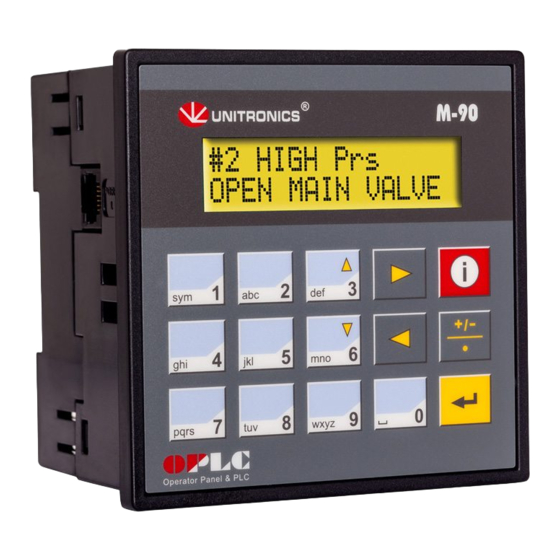

Unitronics M91-19-R1 Quick Start Manual

M
Power supply
Permissible range
Maximum current consumption
Digital inputs
Nominal input voltage
Input voltages for pnp (source):
For 12VDC
For 24VDC
Input voltages for npn (sink):
For 12VDC
For 24VDC
Input current
Input impedance
Response time
(except high-speed inputs)
Galvanic isolation
Input cable length
High-speed counter
Resolution
Input freq.
Minimum pulse
Notes:
1. All 10 inputs can be set to pnp (source) or npn (sink) via a single jumper
and appropriate wiring.
2. All 10 inputs can function in 12 VDC or 24 VDC; set via a single
jumper and appropriate wiring.
3. npn (sink) inputs use voltage supplied from the controller’s power supply.
4. Inputs #0, #2 and #4 can each function as either high-speed counter or
as part of a shaft encoder. In each case, high-speed input specifications
apply. When used as a normal digital input, normal input specifications
apply.
5. Inputs #1, #3 and #5 can each function as either counter reset, or as a
normal digital input; in either case, specifications are those of a normal
digital input.
These inputs may also be used as part of a shaft encoder.
In this case, high-speed input specifications apply.
Shaft encoder
A B
M91-19-R1 02/02
91-19-R1
12/24 VDC, 10 pnp/npn digital inputs, 1 analog input, 3 high-speed counter/shaft
encoder inputs, 6 relay outputs, I/O expansion port, RS232
12VDC or 24VDC
10.2VDC to 28.8VDC with less
than 10% ripple
180mA@24VDC (pnp inputs)
260mA@24VDC (npn inputs)
220mA@12VDC (pnp inputs)
330mA@12VDC (npn inputs)
10 pnp (source) or npn (sink)
inputs. See Note 1.
12VDC or 24VDC.
See Notes 2 and 3.
<3VDC for Logic ‘0’
>8VDC for Logic ‘1’
<5VDC for Logic ‘0’
>17VDC for Logic ‘1’
>8VDC/<1.2mA for Logic ‘0’
<3VDC/>3mA for Logic ‘1’
>17VDC/<2mA for Logic ‘0’
<5VDC/>6mA for Logic ‘1’
4mA@12VDC
8mA@24VDC
3K W
10mS typical
None
Up to 100 meters, unshielded
Specifications below apply when
inputs are wired for use as a high-
speed counter input/shaft
encoder. See Notes 4 and 5.
16-bit
10kHz max.
40µs
+V
12 VDC
0V or 24 VDC
Circuit
protection
device
B
HSC2
A
B
HSC1
A
B
HSC0
A
Power supply, pnp (sourse) inputs
nitronic
U S
Note:
To avoid electromagnetic interference, mount the controller in a metal
panel/cabinet and earth the power supply. Earth the power supply
signal to the metal using a wire whose length does not exceed 10cm.
Using a wire longer than 10cm will cause signal interference.
npn (sink) inputs
nitronic
U
pnp (source) high-speed counter
High-speed
Counter
Reset 2
High-speed
Counter 2
Reset 1
High-speed
Counter 1
Reset 0
High-speed
Counter 0
npn (sink) high-speed counter
High-speed
Counter
Reset 2
High-speed
Counter 2
Reset 1
High-speed
Counter 1
Reset 0
High-speed
Counter 0
1
+V
12 VDC
0V
or 24 VDC
See Note
Circuit
protection
device
+V
12 VDC
or 24 VDC
0V
Circuit
protection
device
S
+V
12 VDC
or 24 VDC
0V
Circuit
protection
device
+V 12 VDC
or 24 VDC
0V
Circuit
protection
device
