Unitronics MJ20-ET1 Quick Start Manual

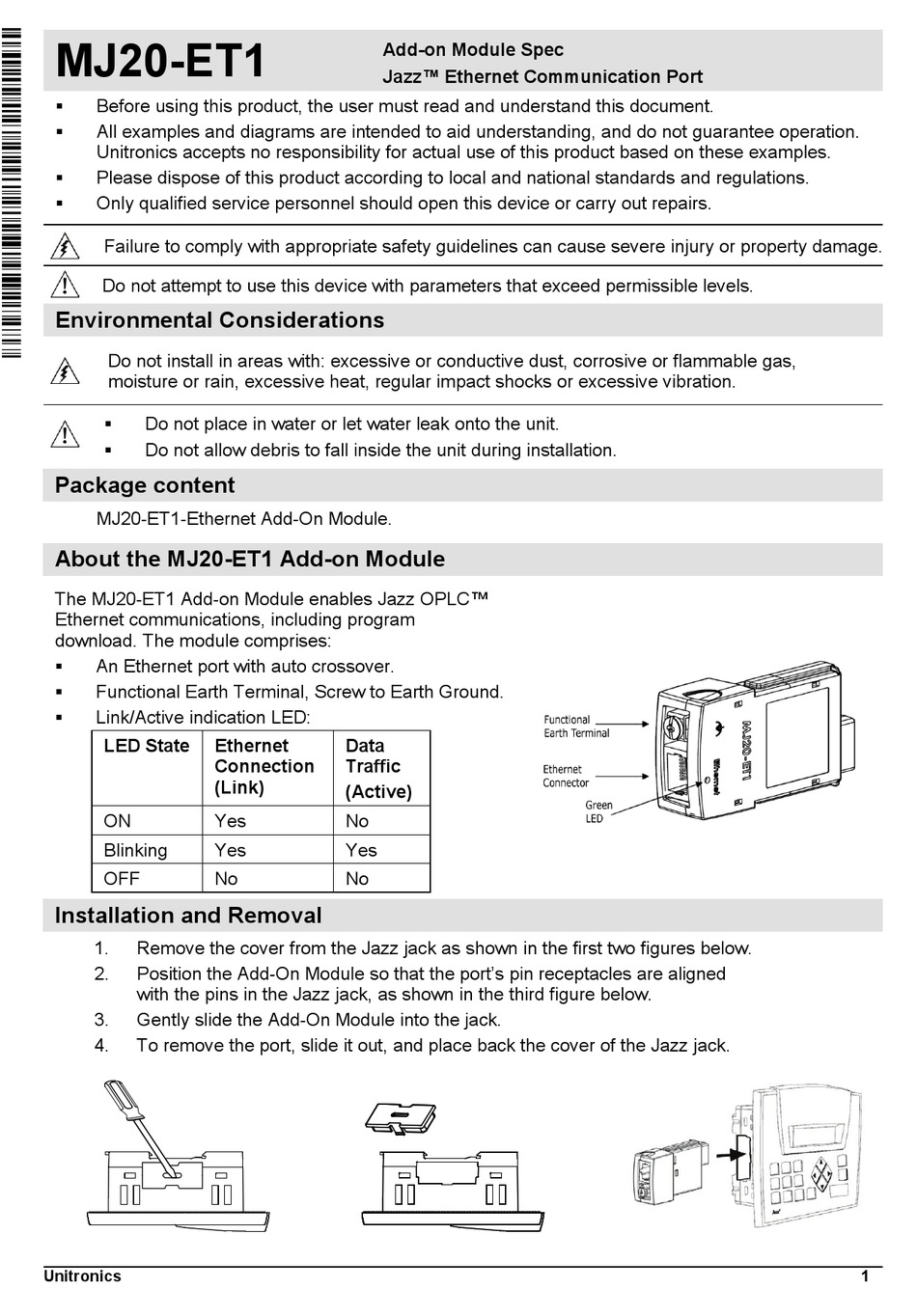

MJ20-ET1
Before using this product, the user must read and understand this document.

All examples and diagrams are intended to aid understanding, and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this product based on these examples.
Please dispose of this product according to local and national standards and regulations.

Only qualified service personnel should open this device or carry out repairs.

Failure to comply with appropriate safety guidelines can cause severe injury or property damage.
Do not attempt to use this device with parameters that exceed permissible levels.

Environmental Considerations

Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,
moisture or rain, excessive heat, regular impact shocks or excessive vibration.
Do not place in water or let water leak onto the unit.

Do not allow debris to fall inside the unit during installation.


Package content

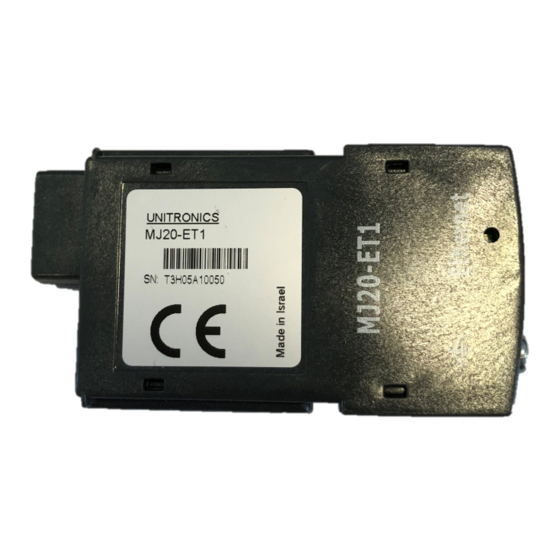

MJ20-ET1-Ethernet Add-On Module.

About the MJ20-ET1 Add-on Module

The MJ20-ET1 Add-on Module enables Jazz OPLC™
Ethernet communications, including program
download. The module comprises:
An Ethernet port with auto crossover.

Functional Earth Terminal, Screw to Earth Ground.

Link/Active indication LED:

LED State Ethernet
Connection
(Link)
ON Yes
Blinking Yes
OFF No

Installation and Removal

1. Remove the cover from the Jazz jack as shown in the first two figures below.
2. Position the Add-On Module so that the port's pin receptacles are aligned
with the pins in the Jazz jack, as shown in the third figure below.
3. Gently slide the Add-On Module into the jack.
4. To remove the port, slide it out, and place back the cover of the Jazz jack.
Unitronics
Add-on Module Spec
Jazz™ Ethernet Communication Port
Data
Traffic
(Active)
No
Yes
No
1
