1. Getting acquainted with your Water Blaster

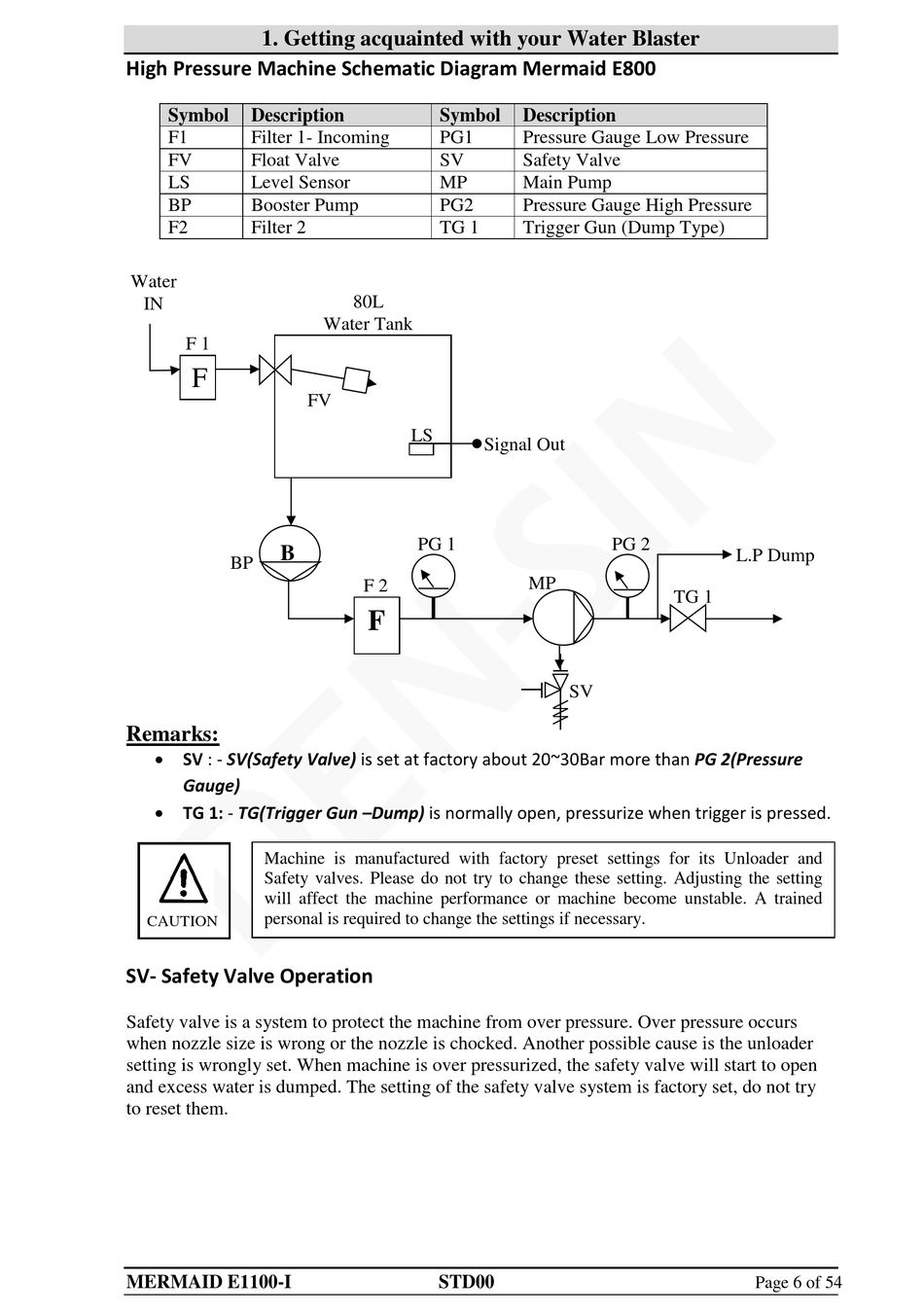

High Pressure Machine Schematic Diagram Mermaid E800

Symbol Description
F1 Filter 1- Incoming
FV Float Valve
LS Level Sensor
BP Booster Pump
F2 Filter 2
Water
IN
F 1
F
B
BP
P
Remarks:
 SV : - SV(Safety Valve) is set at factory about 20~30Bar more than PG 2(Pressure
Gauge)
 TG 1: - TG(Trigger Gun –Dump) is normally open, pressurize when trigger is pressed.
Machine is manufactured with factory preset settings for its Unloader and
Safety valves. Please do not try to change these setting. Adjusting the setting
will affect the machine performance or machine become unstable. A trained
personal is required to change the settings if necessary.
CAUTION

SV- Safety Valve Operation

Safety valve is a system to protect the machine from over pressure. Over pressure occurs
when nozzle size is wrong or the nozzle is chocked. Another possible cause is the unloader
setting is wrongly set. When machine is over pressurized, the safety valve will start to open
and excess water is dumped. The setting of the safety valve system is factory set, do not try
to reset them.
MERMAID E1100-I
Symbol
PG1
SV
MP
PG2
TG 1
80L
Water Tank
FV
LS
PG 1
F 2
F
STD00
Description
Pressure Gauge Low Pressure
Safety Valve
Main Pump
Pressure Gauge High Pressure
Trigger Gun (Dump Type)
Signal Out
PG 2
MP
SV
L.P Dump
TG 1
