Summary of Contents for Den-Sin HB-200

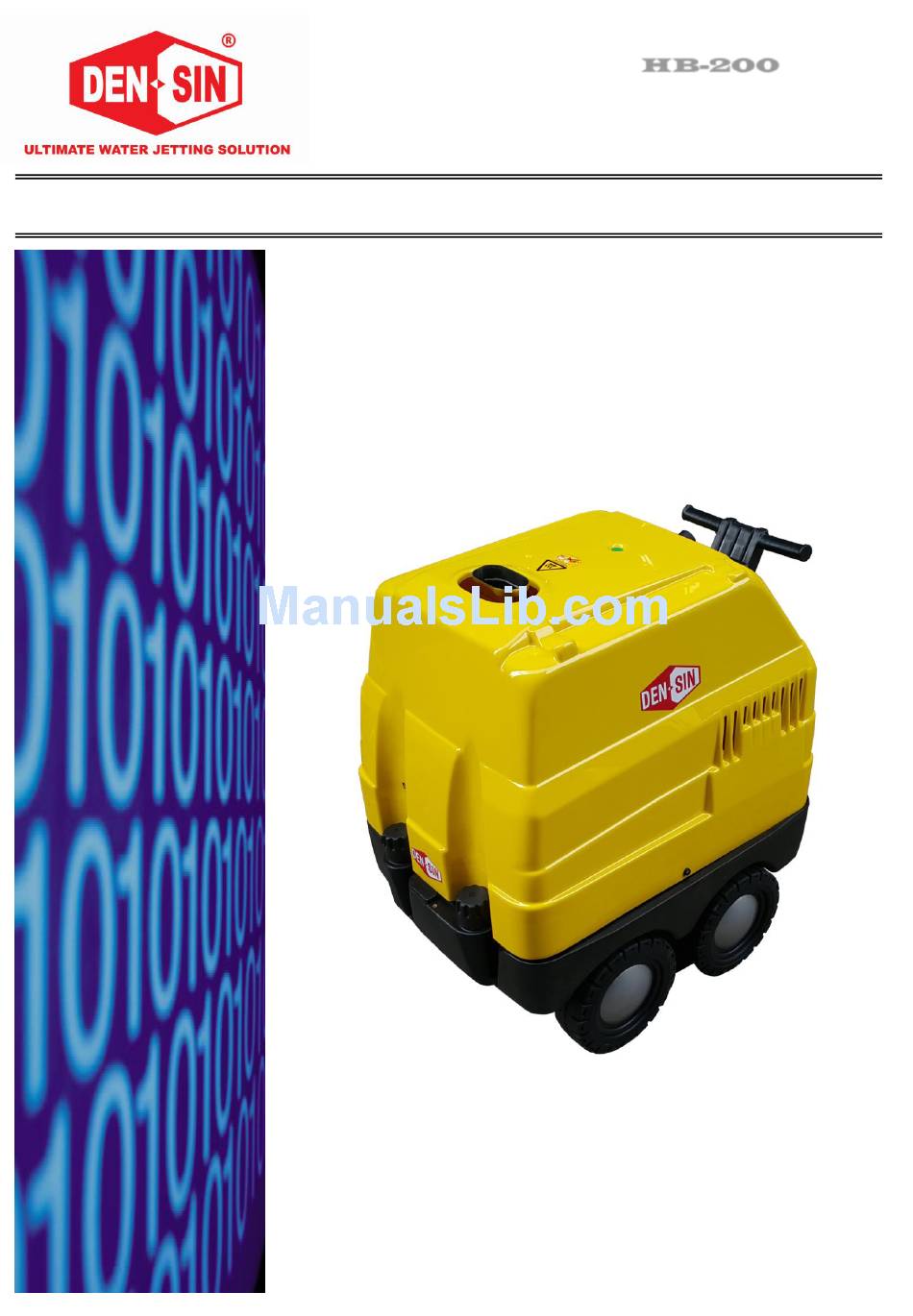

- Page 1 HB-200 ELECTRICAL POWERED HEAVY DUTY HOT WATER HIGH PRESSURE CLEANER USER GUIDE & SPARE PARTS MANUAL www.densin.com...
-
Page 2: Introductions
This document or part of it may not be photocopied, or in any other way reproduced, or translated to other languages without the prior written consent of DEN-SIN. This machine is a High Pressure Cleaner producing water jet under high-pressure, which is why severe injuries can occur if the safety precautions are not observed. -
Page 3: Table Of Contents
Boiler assembly spare-parts list .................... 15 Wiring diagrams ........................16 5. Declaration and Warranty ..................17 EU declaration of conformity ....................17 Warranty ..........................17 6. Spare Parts Request Form ..................18 7. Maintenance Log Book ................... 19 HB-200 Page 2... -
Page 4: Specifications
1. Getting acquainted with your High Pressure Cleaner Fast and efficient cleaning The DEN-SIN high-pressure hot-water cleaners in the HB-200 series enables you to get more cleaning done in less time. This series of DEN-SIN high-pressure cleaners offers you high performance yet a compact design. -
Page 5: Unpacking
Connect to outlet of HB-200 Step 4: Plug in the power-plug into a main power supply socket and turn on the power. Switch on both the high-pressure cleaner and HB-200 by depressing the on/off switch. HB-200 Page 4... -
Page 6: Water Connection
High Pressure hose which comes together with the machine. (Max Pressure: 200Bar). Filling up with Fuel 1. Fill the tank with the Diesel. 2. Avoid running the machine when diesel tank is empty in order not to damage the fuel pump. HB-200 Page 5... -
Page 7: Stopping The Machine
3. Check fuel filter as shown above periodically and replace when necessary. Operation Flow Diagram Operation To prevent accidents from happening, ensure the safety of the person(s) who uses the equipment and to protect bystanders and nearby placed inventory or machinery, a few safety precautions needs attention. WARNING HB-200 Page 6... -
Page 8: Id-Plate
13) When pausing during operation, turned off the main switch of the machine and ensures that the trigger/gun is locked. 14) Only use high-pressure hoses, connections and nozzles specified by DEN-SIN. 15) IMPORTANT – Do not use the machine in a possible explosive environment in accordance with EN-50014. -
Page 9: Safety And Protection Information
3) Thermal sensor and over load relay protects the motor against overloading. The machine can be switched on again after a few minutes, when the sensor has cooled. 4) Burner safety devices; the burner safety device protects the machine against faulty ignition. DON’T HB-200 Page 8... -
Page 10: Maintenance And Troubleshooting
Be sure the cleaner is kept frost-free, if not possible flush the inlet of the cleaner with antifreeze fluids. Depending on water quality, clean the strainer in the water tank regularly. Depending on Fuel quality clean the fuel filter regularly. HB-200 Page 9... -
Page 11: Troubleshooting
For any further inconveniences, not mentioned in this user guide or any damages of the machine, we strongly suggest you to make contact with your dealer for the repair or possible replacement of any original spare-parts. NOTE HB-200 Page 10... -
Page 12: Boiler Servicing And Maintenance / 200Hrs
Manually take away the interior cap. Remove the high pressure hoses and unscrew the locking nuts from beneath. Pull out the boiler coil. Clean the boiler coil for residue with a wire brush. Vacuum clean the residue from the boiler housing. HB-200 Page 11... -
Page 13: Accessories List
Chassis assembly spare-parts list Pos: Part No: Qty: Description Screw M6x12 700590143 Top Cover 700590144 Diesel Tank 700951501 Cable 3G2.5 Long Spacer Axle Spacer Wheel Axle 700590145 Diesel Tank Cap W/Gasket 700590060 Wheel W/Cover 700550042 Hose Extension M-F HB-200 Page 12... -
Page 14: Electrical Box Assembly
5. Declaration and Warranty Electrical Box assembly Electrical Box assembly spare-parts list Pos: Part No: Qty: Description 700590146 Switch 700590147 Control Panel 700530266 Knob Thermostat 700530272 TERMINAL BLOCK 700530267 Thermostat 700590148 EL-Box Gasket Electrical Box HB-200 Page 13... -
Page 15: Boiler Assembly
5. Declaration and Warranty Boiler assembly HB-200 Page 14... -
Page 16: Boiler Assembly Spare-Parts List
Elbow Dia.4 – 1/8” 700590025 Ring Seeger 700590003 Sight Glass Wrought Burner Flange Diesel Nozzle 1.50 700590149 Boiler Flange Complete 700590150 Ignition Transformer HB-200 700590027 Electrode L=480mm 700590151 Chimney Inward Cover 700590099 Burner Cover 700590152 Upper Coil H.500 700590153 Boiler Body... -
Page 17: Wiring Diagrams
5. Declaration and Warranty Wiring diagrams HB-200E 230V 50Hz Standard HB-200 Page 16... -
Page 18: Declaration And Warranty
Accessories or equipment furnished by DEN-SIN but manufactured by others, shall carry the warranty that its manufacturer has conveyed to DEN-SIN, and which may be passed on to the purchaser. The original warranty period of any article, which has been repaired or replaced by DEN-SIN, shall not thereby be extended. -
Page 19: Spare Parts Request Form
6. Spare Parts Request Form 6. Spare Parts Request Form Company Name: Delivery Address: Country: Postal Code: Contact Name: Contact Number: Fax Number: Mobile Number: Email: Part Number Description QTY Machine Model or Serial Number Special Instructions: HB-200 Page 18... -
Page 20: Maintenance Log Book
7. Maintenance Log Book 7. Maintenance Log Book This maintenance logbook will assist you to keep track on the servicing of your equipment. Please record after service your machine. Purchase date of the machine: Service Description Date Remarks HB-200 Page 19...
