Installation Instructions

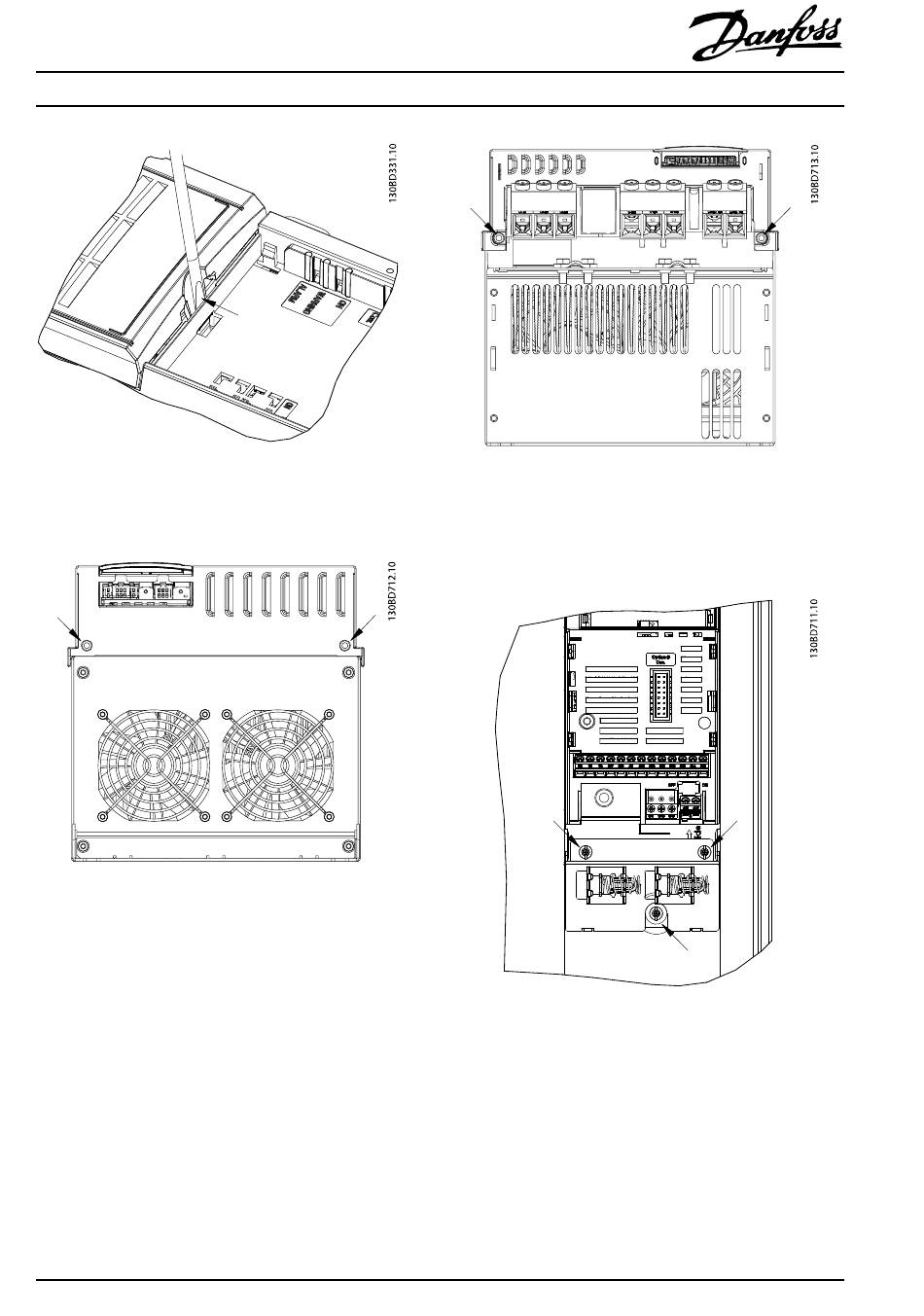

Illustration 1.1 Remove Plastic Cover
3. Remove 4 screws (T20, M4x8) that fasten the front
cover to the base plate.
Illustration 1.2 Location of Screws on Top Plate, Example
(Enclosure Type J6)
2
Front Cover
®
VLT AutomationDrive FC 360
Illustration 1.3 Location of Screws on Bottom Plate, Example
(Enclosure Type J6)
Illustration 1.4 Screws on the I/O Decoupling Plate for Enclosure
Type J6
Danfoss A/S © Rev. 2014-01-17 All rights reserved.
4. Remove the 2 (for enclosure type J7) or 3 (for
enclosure type J6) screws on the I/O decoupling
plate.
