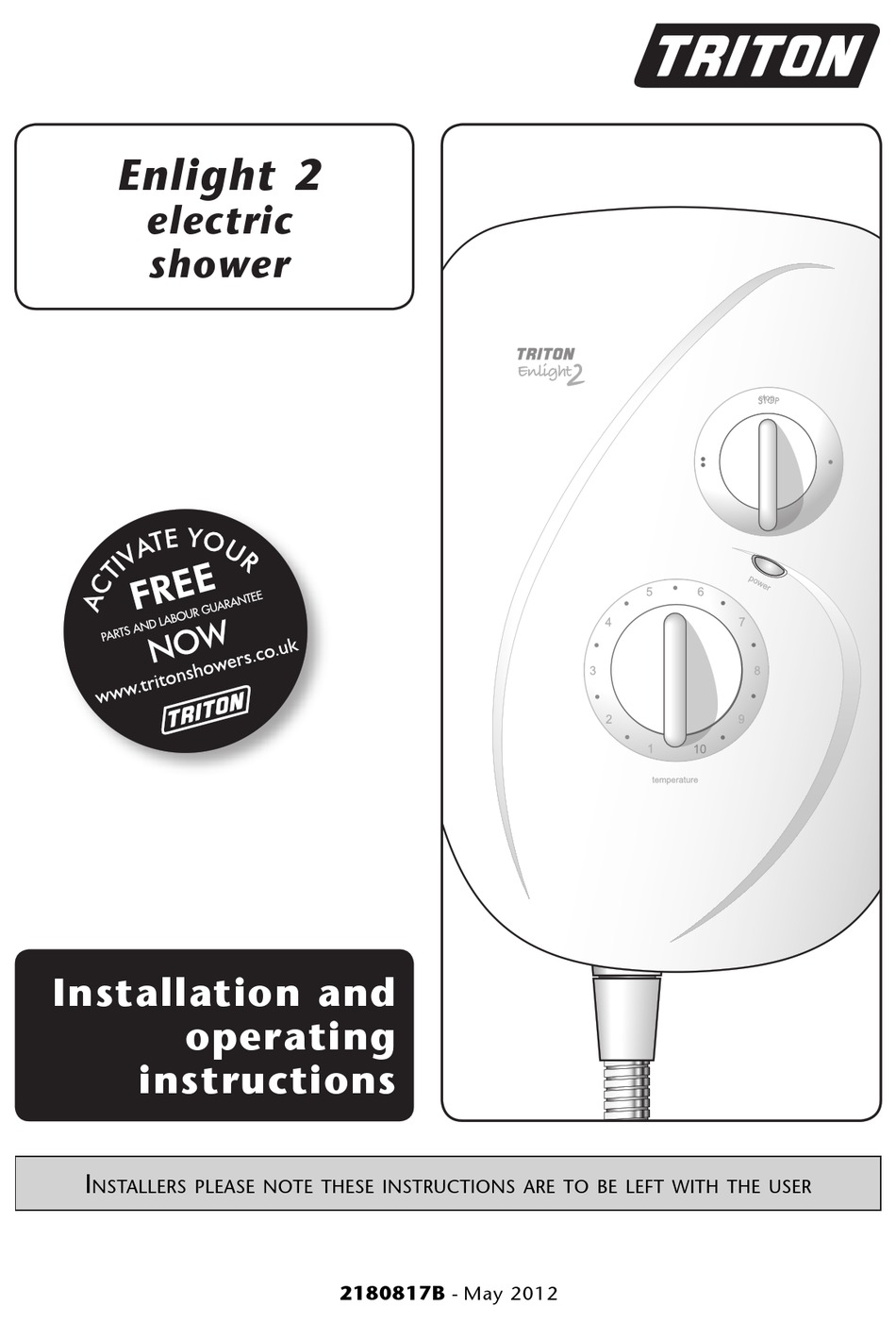

- Page 1 Enlight 2 electric shower Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180817B May 2012...
-
Page 2: Table Of Contents
Spare parts ..................18 Fault finding ................19 - 20 Water/Cable entry points diagram ........21 Guarantee, service policy, etc...........rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0844 980 0730... -
Page 3: Important Safety Information
Electric shower PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out before using. -
Page 4: Introduction
Electric shower INTRODUCTION ADVICE TO USERS This book contains all the necessary fitting and IMPORTANT: When first installed the operating instructions for your electric shower. unit will be empty. It is essential the Please read them carefully. unit should contain water before the The shower installation must be carried out by a elements are switched on. -
Page 5: Main Components
Electric shower MAIN COMPONENTS Fig.1 Inside unit (fig.1) Top cable entry Bottom pipe entry Rear pipe entry area Rear cable entry area Wall screw fixing Terminal block Power selector Stabilising valve Solenoid valve 10. Guide pockets 11. Can and element assembly 12. -
Page 6: Electrical Requirements
Electric shower ELECTRICAL REQUIREMENTS Shepperton Park, Triton Road, Nuneaton, Warwickshire, CV11 4NR WARNING! W-006-A THIS APPLIANCE MUST BE EARTHED The installation, supply cable and circuit protection must conform with BS 7671 (IEE Fig.3 wiring regulations) and be sufficient for the amperage required. - Page 7 cabling is bunched with others, surrounded carry out what is necessary. by thermal loft or wall insulation or placed in areas where the ambient temperature is For close circuit protection DO NOT use a above 30°C. Under these conditions, rewireable fuse. Instead use a suitably rated Electric shower derating factors apply and it is necessary to Miniature Circuit Breaker (MCB) or cartridge...
-
Page 8: Water Requirements
Electric shower WATER REQUIREMENTS Mains electric supply (via double pole switch) WARNING! The shower must not be positioned where it will be subjected to freezing Double conditions. pole isolating switch The installation must be in accordance with Water Regulations and Bylaws. Shower To guarantee activating the heating elements, unit... -
Page 9: Siting Of The Shower
Electric shower SITING OF THE SHOWER WARNING! IMPORTANT: For ease of servicing, the unit must always be mounted on the surface of The shower must not be positioned tiled walls. NEVER tile up to the unit. where it will be subjected to freezing Refer to fig.6 for correct siting of shower. -
Page 10: Fitting The Shower To The Wall
Electric shower FITTING THE SHOWER TO THE WALL Fig.7 WARNING! Check there are no hidden cables or pipes before drilling holes for wall plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is recommended. - Page 11 Electric shower If surface cable entry from the top is required then a small area will need to be cut out in the Fig.10 backplate (fig.10). If installing a feed pipe from the rear or bottom, the centre of the inlet valve to the wall surface is 21mm (fig.11).
-
Page 12: Plumbing Connections
Electric shower PLUMBING CONNECTIONS WARNING! Plumbing to be carried out before wiring The outlet of the shower acts as a DO NOT use jointing compounds on any pipe vent and must NOT be connected to fittings for the installation. anything other than the hose and DO NOT solder fittings near the shower unit showerhead supplied. -
Page 13: Electrical Connections
Electric shower ELECTRICAL CONNECTIONS Fig.13 SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAINS. Fig.13 shows a schematic wiring diagram. The cable entry points are shown in fig.1. The cable can be surface clipped, hidden or via 20mm conduit. Note: Conduit entry can only be from rear. Route the cable into the shower unit and connect to the terminal block (fig.14) as follows:... -
Page 14: Replacing The Cover
Electric shower REPLACING THE COVER Fig.15 Refit the trimplate. Turn the power selector spindle clockwise to the position shown in fig.15. Position flat Power selector Turn the stabiliser valve spindle fully clockwise on the top spindle until resistance is felt (fig.16). of spindle On the cover turn the power selector to the ‘STOP ‘position (fig.17) and position the... -
Page 15: Commissioning
Electric shower COMMISSIONING Fig.19 WARNING! Before normal operation of the shower, it is essential the following commissioning procedure is completed correctly. IMPORTANT: The first operation of the shower is intended to flush out any remaining unit debris, and to make sure the heater unit contains water before the elements are switched on. -
Page 16: Operating The Shower
Electric shower OPERATING THE SHOWER Fig.22 WARNING! Before normal operation of the shower, it is essential that the commissioning procedure has been completed correctly. To start the shower Power selector Rotate the power selector to the red or blue Cold symbols and water will start to flow. - Page 17 Electric shower The double red symbol is the HIGH power WARNING! setting which allows the highest flow achievable for your preferred temperature. This setting After any servicing of mains water should normally be regarded as optimum shower supply, always make sure the unit is performance throughout the year.
-
Page 18: Operating Functions
Electric shower OPERATING FUNCTIONS Fig.23 Power on indicator (fig.23) When the electricity supply to the shower is switched on at the isolating switch, the neon power indicator will light. Low water pressure cut-out If the water pressure falls below the minimum required for correct operation of the shower, power will be switched off to the heating elements preventing any maintained... -
Page 19: Instructions For Installers And Service Engineers Only
Electric shower CLEANING WARNING! Triton recommends that all products are cleaned DO NOT use abrasive or aggressive using warm, soapy water. cleaning products when cleaning the DO NOT use abrasive or aggressive chemical shower as they may damage the unit. -
Page 20: Spare Parts
Electric shower SPARE PARTS Ref. Description Part No. 1. Power selector including ...S12111003 microswitches 2. Terminal block & outlet ....S12721004 pipe assembly 3. Thermal cut-out ......22011180 4. Heater can assembly 8.5kW .........P12120701 9.5kW .........P12120702 5. Stabiliser valve/solenoid ....P12120806 assembly 6. PRD & ‘O’ ring......82800450 7. -
Page 21: Fault Finding
Electric shower FAULT FINDING IMPORTANT: Switch OFF the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Problem/Symptom Cause Action/Cure 1. Shower 1.1 Interrupted power 1.1.1 Blown fuse or circuit breaker. Check inoperable, no supply. - Page 22 When fitting a new PRD, follow the commissioning procedure. It is advised all electrical maintenance/repairs to the shower should be carried out by a suitably qualified person. In the unlikely event of a fault occurring please contact Triton Customer Service. Do not remove the shower from the installation.
-
Page 23: Water/Cable Entry Points Diagram
Cable Entry Points WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following schemes:... - Page 24 Triton is a division of Norcros Group (Holdings) Limited E-mail: serviceenquiries@tritonshowers.co.uk Extended Warranty AVAILABLE NOW. Call 0844 980 0740 for more details. TRITON reserve the right to change product specification without prior notice. E&OE. © TRITON SHOWERS 2012 8-8-2012...
