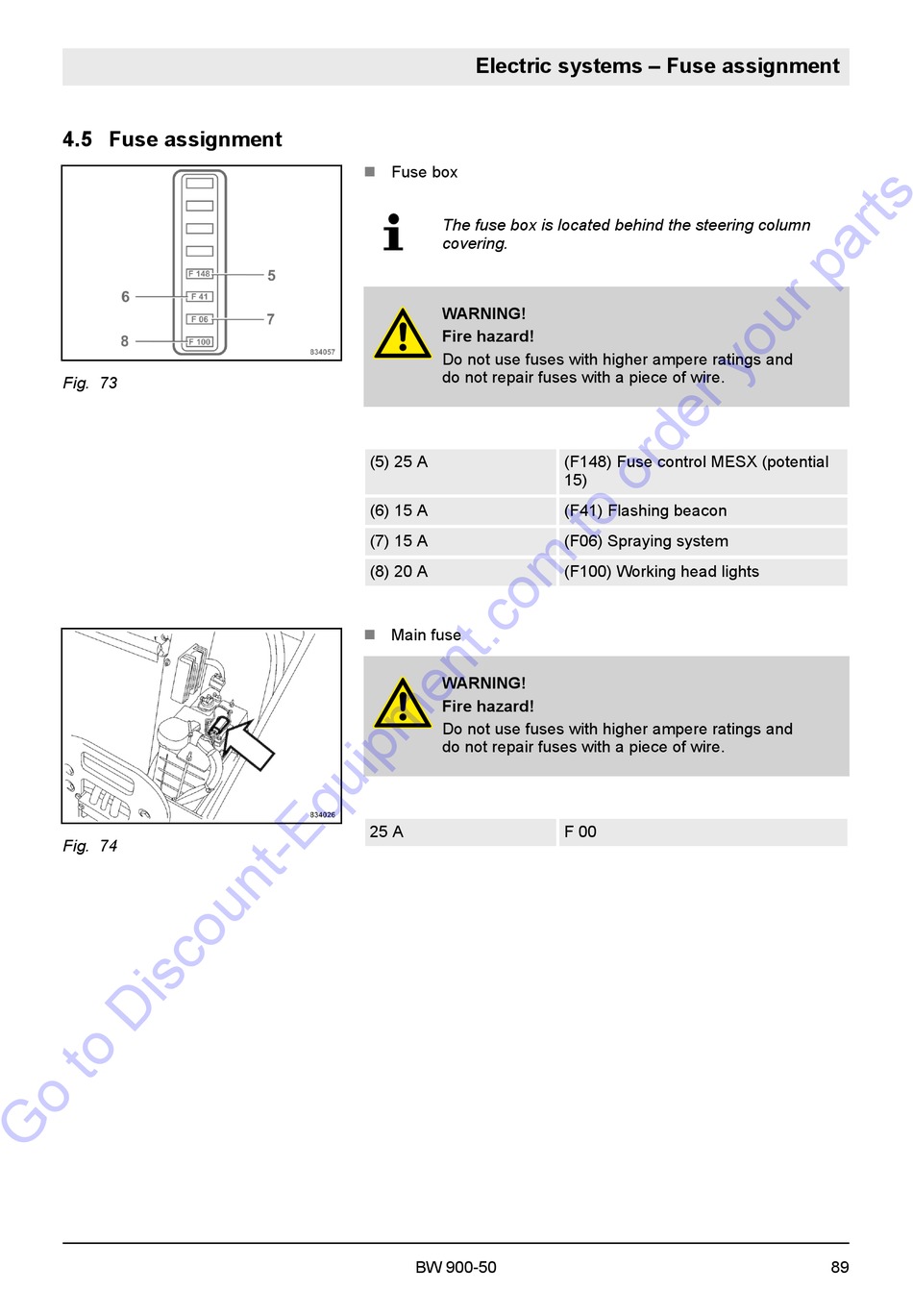

4.5 Fuse assignment

Fig. 73
Fig. 74
Electric systems – Fuse assignment
n Fuse box
The fuse box is located behind the steering column
covering.
WARNING!
Fire hazard!
Do not use fuses with higher ampere ratings and
do not repair fuses with a piece of wire.
(5) 25 A
(6) 15 A
(7) 15 A
(8) 20 A
n Main fuse
WARNING!
Fire hazard!
Do not use fuses with higher ampere ratings and
do not repair fuses with a piece of wire.
25 A
BW 900-50
(F148) Fuse control MESX (potential
15)
(F41) Flashing beacon
(F06) Spraying system
(F100) Working head lights
