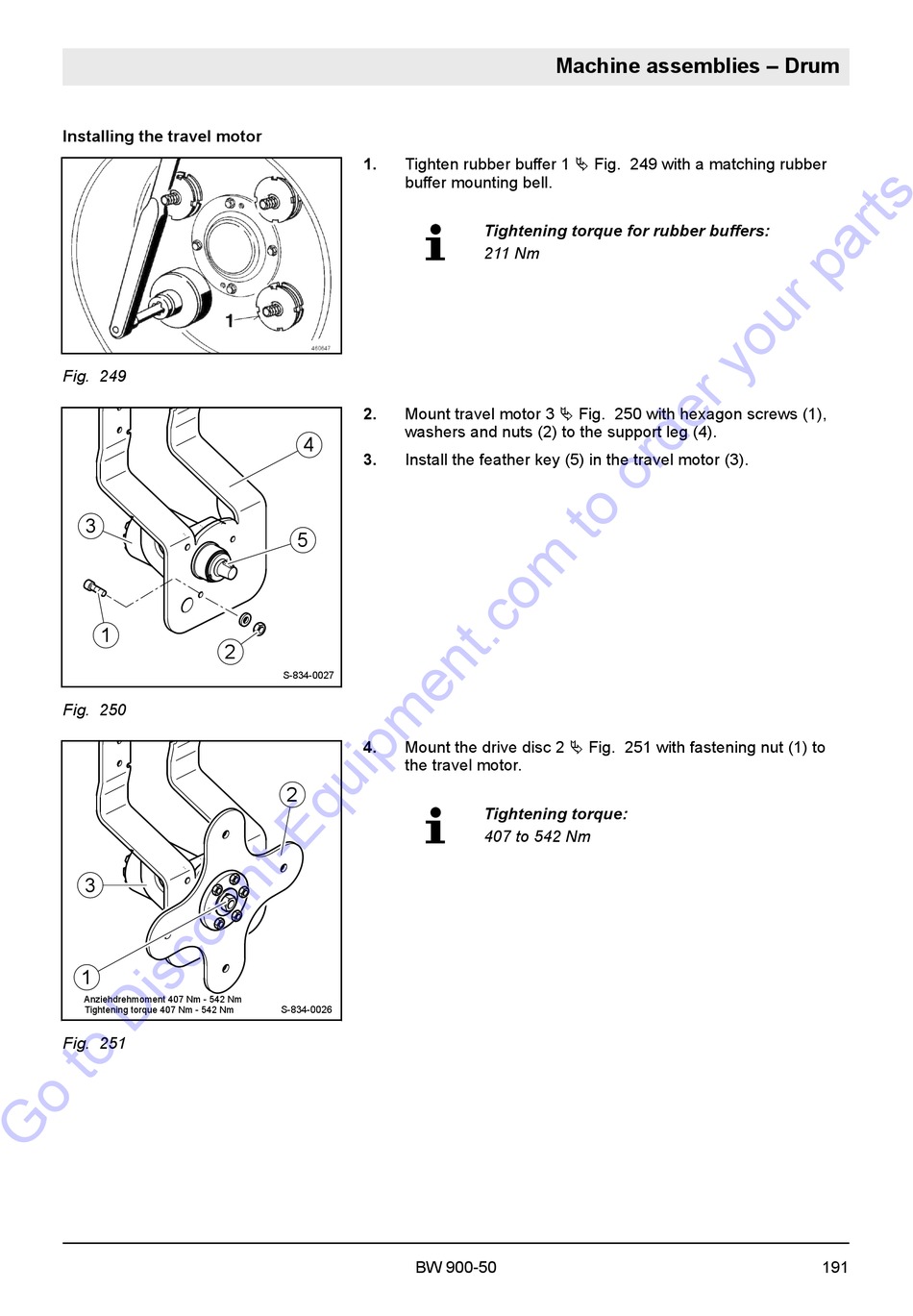

Installing the travel motor
Fig. 249
3
1
2
Fig. 250
3
1
Anziehdrehmoment 407 Nm - 542 Nm
Tightening torque 407 Nm - 542 Nm
Fig. 251
1. Tighten rubber buffer 1 Ä Fig. 249 with a matching rubber
buffer mounting bell.
2. Mount travel motor 3 Ä Fig. 250 with hexagon screws (1),
washers and nuts (2) to the support leg (4).
4
3. Install the feather key (5) in the travel motor (3).
5
S-834-0027
4. Mount the drive disc 2 Ä Fig. 251 with fastening nut (1) to
the travel motor.
2
S-834-0026
BW 900-50
Machine assemblies – Drum
Tightening torque for rubber buffers:
211 Nm
Tightening torque:
407 to 542 Nm
