Machine assemblies – Oscillating articulated joint
1

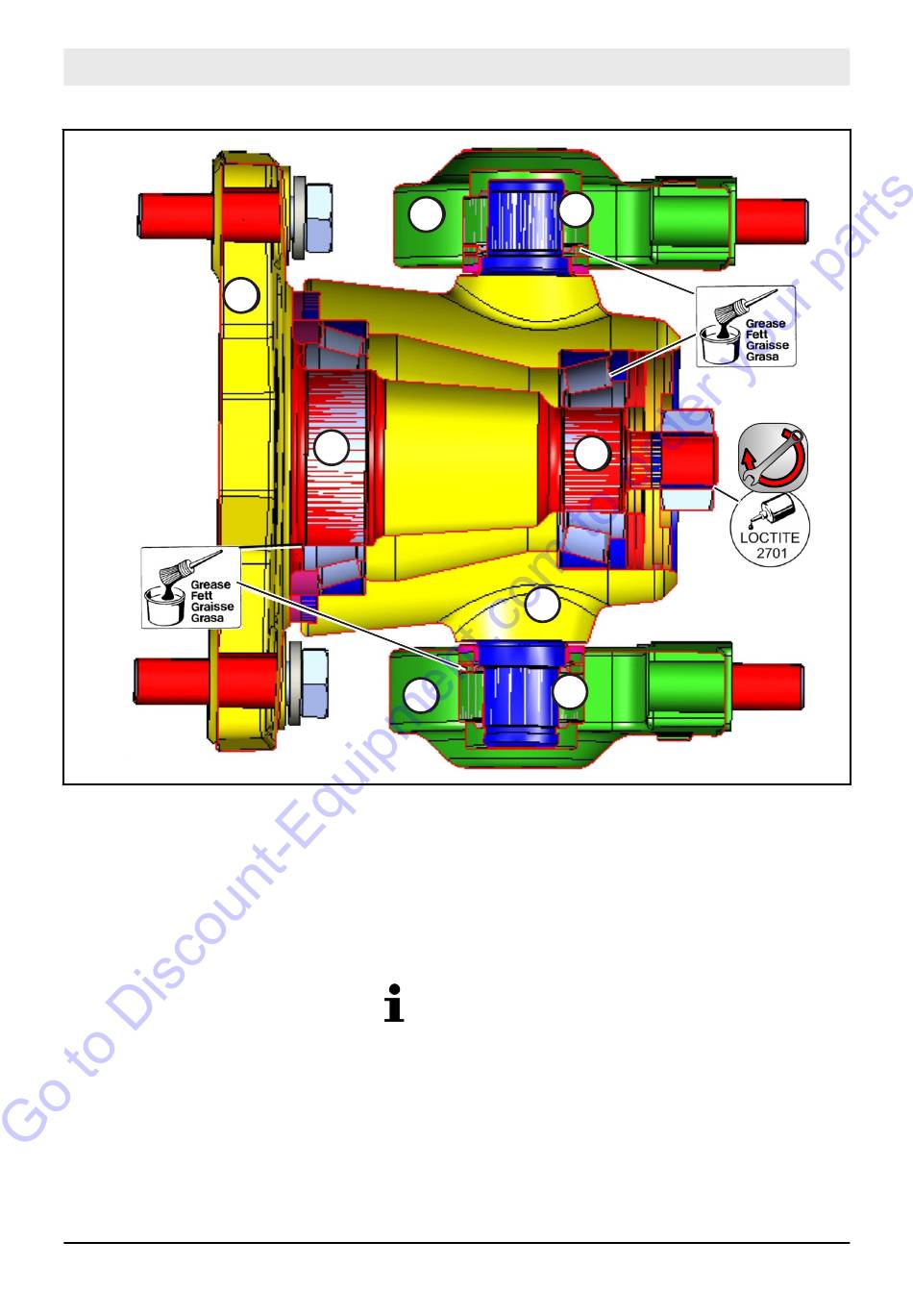

Fig. 181
1 Bearing journal
2 Bearing block, top
3 Bearing block, bottom
4 Bearing housing
5 Tapered roller bearing
6 Rocker bearing
7 Tapered roller bearing
168
2
7
3
When tightening the bearing housing, move the
bearing housing slightly to and fro to ensure a uni-
form wear pattern of the individual bearing rollers.
BW 900-50
6
5
4
6
300
Nm Nm
S-462-0035
