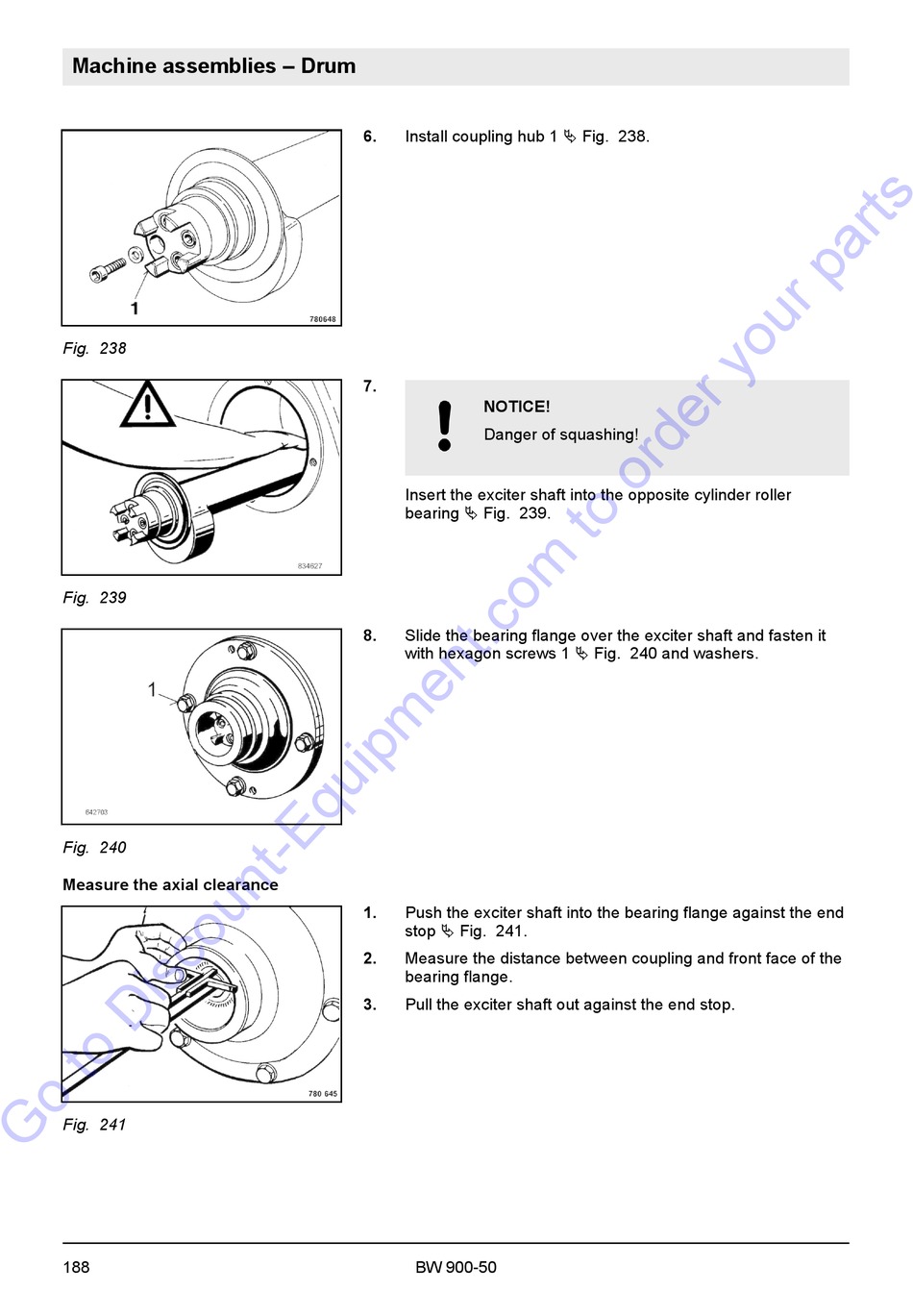

Machine assemblies – Drum
Fig. 238
Fig. 239
Fig. 240
Measure the axial clearance
Fig. 241
188
6.
Install coupling hub 1 Ä Fig. 238.
7.
NOTICE!
Danger of squashing!
Insert the exciter shaft into the opposite cylinder roller
bearing Ä Fig. 239.
8.
Slide the bearing flange over the exciter shaft and fasten it
with hexagon screws 1 Ä Fig. 240 and washers.
1.
Push the exciter shaft into the bearing flange against the end
stop Ä Fig. 241.
2.
Measure the distance between coupling and front face of the
bearing flange.
3.
Pull the exciter shaft out against the end stop.
