Machine assemblies – Engine
1
B201
15
S-834-008

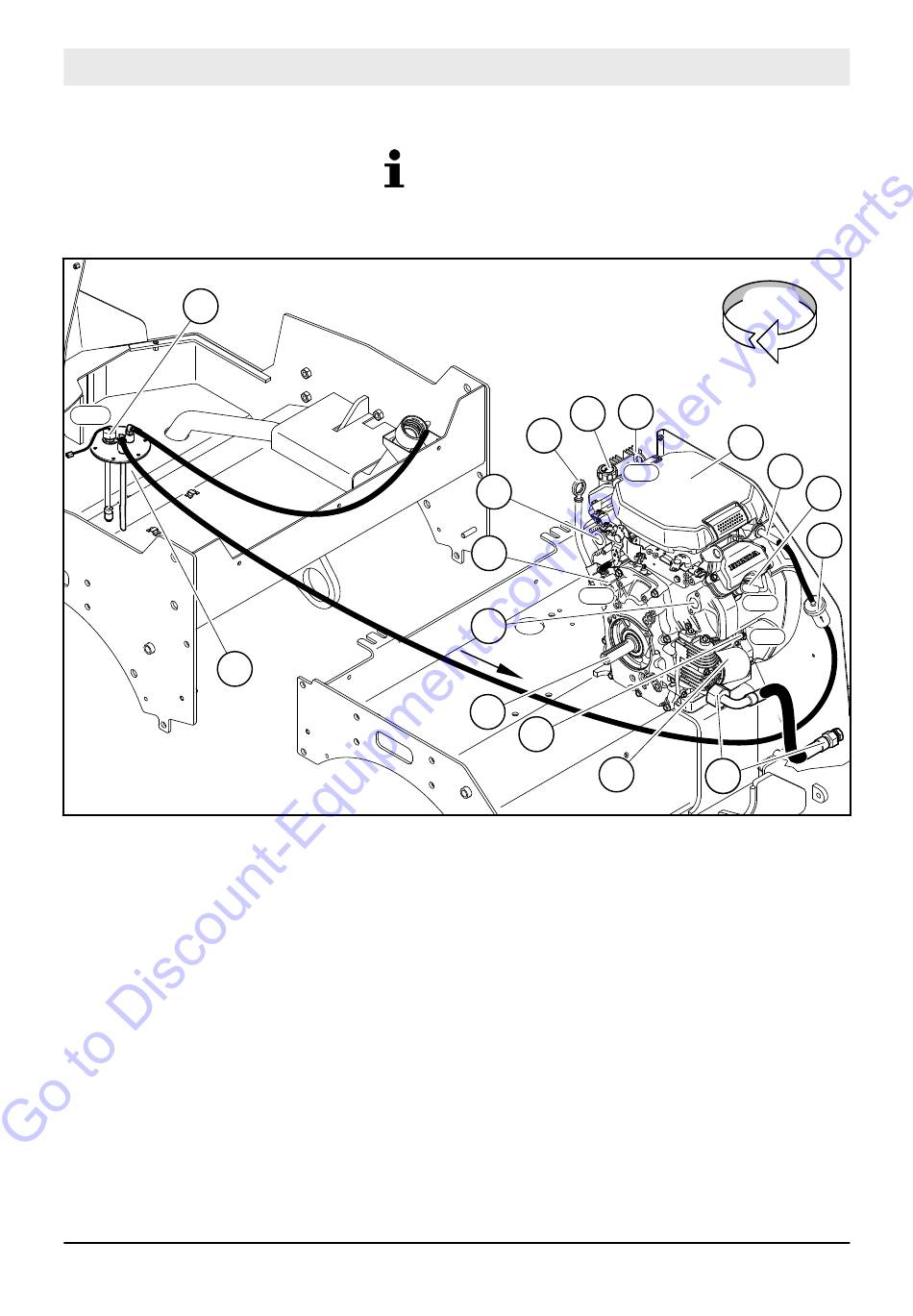

Fig. 160: Engine
1 Float switch for fuel (B201)
2 Oil dipstick
3 Oil filler neck
4 Charge regulator (A61)
5 Air filter
6 Connection for fuel pre-filter
7 Spark plug (A62)
8 Fuel pre-filter
9 Oil drain
10 Oil filter
11 Oil pressure switch (B06)
12 Crankshaft
13 Exhaust outlet
14 Starter motor (M01)
15 Fuel tank
152
The engine is equipped with an electric fuel shut-
down solenoid (Y58), which interrupts the fuel
supply to the main carburettor nozzle when ener-
gized.
3
2
13
14
M01
13
12
11
BW 900-50
90°
4
5
A61
A62
B06
10
9 9
6
7
8
