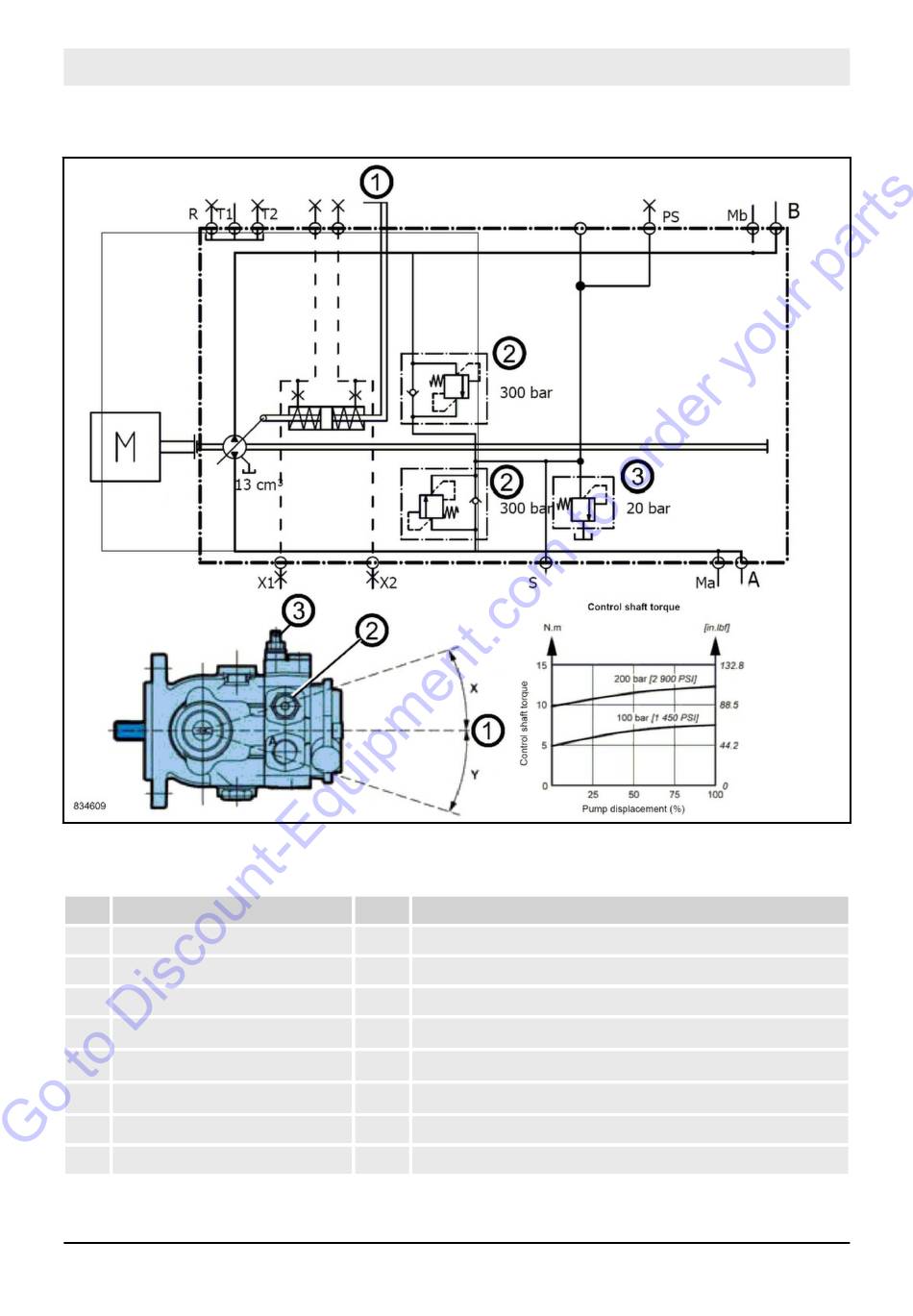

Hydraulic diagram
Fig. 93
Pos
Designation
1
mechanical control
2
High pressure relief valves
3
Charge pressure relief valve
Hydraulic system – Description of hydraulic components
Pos
Designation
A
Work connection
B
Work connection
M
Motor
M
Pressure test port, pressure A
a
M
Pressure test port, pressure B
b
P
Control pressure inlet
S
R
Ventilation
S
Pressure port for charge circuit
BW 900-50
109
