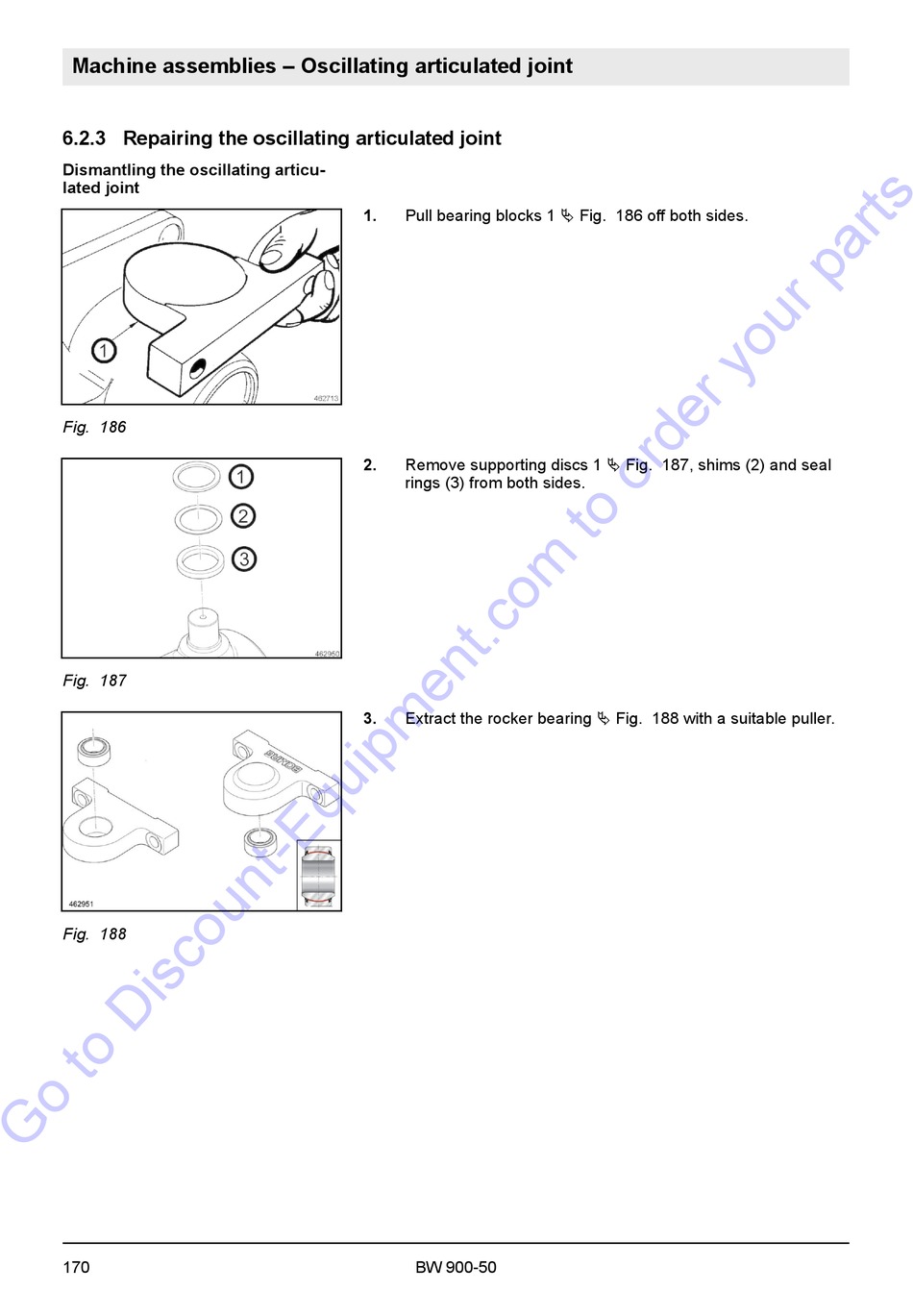

Machine assemblies – Oscillating articulated joint
6.2.3 Repairing the oscillating articulated joint
Dismantling the oscillating articu-
lated joint
Fig. 186
Fig. 187
Fig. 188
170
1.
Pull bearing blocks 1 Ä Fig. 186 off both sides.
2.
Remove supporting discs 1 Ä Fig. 187, shims (2) and seal
rings (3) from both sides.
3.
Extract the rocker bearing Ä Fig. 188 with a suitable puller.
BW 900-50
