4. Operation of base•prime

4.1 Overview operating modes

The following list shows the various operating modes of the base • prime. These are described in detail in the
following chapters. Manual operation is overwritten by all others. Operation via Ethernet overwrites all other
operating modes and therefore comes first.
1. Ethernet (Chapter 4.5)
2. DMX (Chapter 4.3)
3. Analog (Chapter 4.4)
4. Manual Operation (Chapter 4.2)

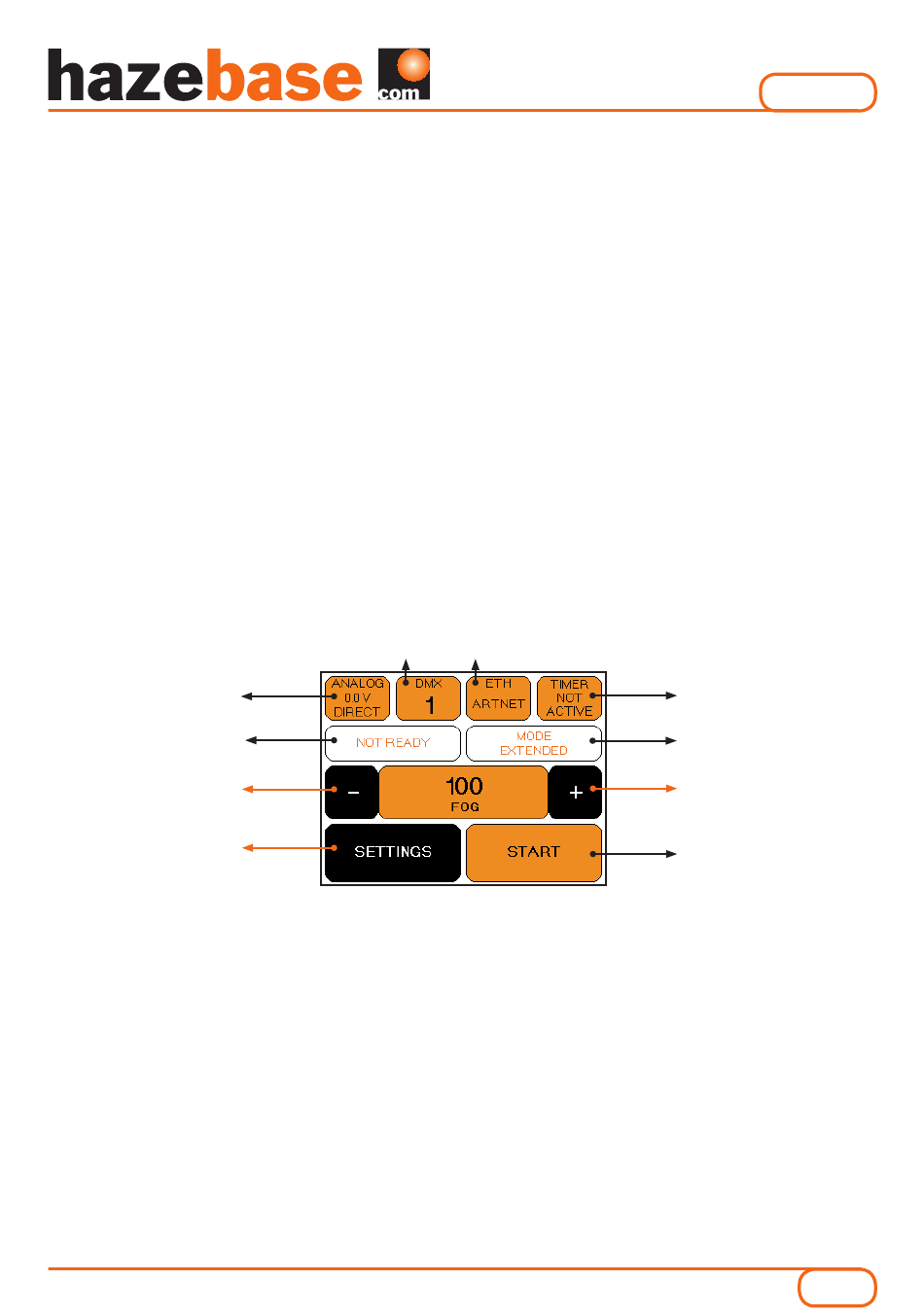

After switching on the base•prime, the hazebase logo appears on the display (F). The following figure shows
the main menu of the base•prime.
L
M
R
T
L) Analog Input Display: Shows the selected mode
and current voltage.
M) Indicates if the machine is at operating tempe-
rature. The Ready indicator flashes when the lowest
temperature at which misting can be started is
reached.
NOT READY is displayed if the operation can not be
started.
N) Indicates which pump characteristic has been
selected.
O) Display DMX: Indicates whether DMX is active and
which address has been selected.
O P
P) Ethernet display: Indicates which protocol was
selected and whether the base • prime is controlled
via Ethernet.
R and Q) Increase / decrease of the pump value
(center)
S) Indicates when the timer of the machine is activa-
ted
T) Open the settings menu
U) Manual start of fog process
