- Page 2 Scope of delivery 1 fog machine Piccola 1 magnetic Banded 1 250ml tank incl. Cover and quick coupling 1 3,4Ah / 12V AGM Battery incl. Holder 1 charger incl. Primary adapter 1 carrying case 1 instruction manual Please check the completeness of the delivery...
-
Page 3: Table Of Contents
4. Preparation 4.1 Selecting the location 4.2 Filling the tank 4.3 Hose cover 5. Working with the Piccola 5.1 Display of the Piccola instructions5.2 Operation in stand-alone mode 5.3 mode selection in the 5 pin XLR connectors 5.4 operation DMX / RDM 5.5 operating cable remote control (optional) -
Page 4: Introduction

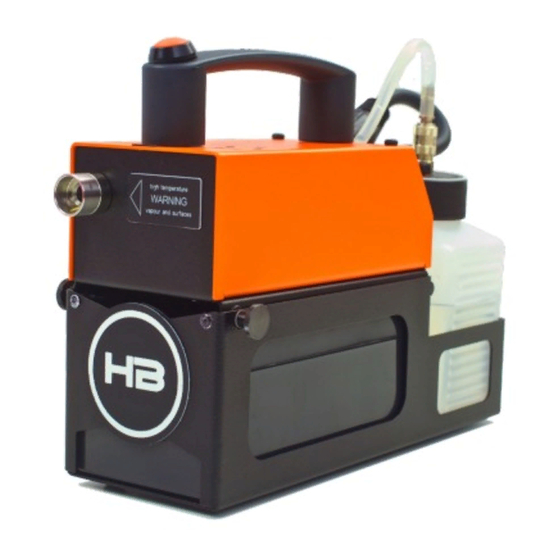

1. Introduction The Piccola is a battery-operated smoke machine for use both as a fog effect in the entertainment area, as well as for flow tests or leak detection. It only needs the shortest heating times (1 sec.) And also has a compact housing with low weight (2.6kg). -
Page 5: Safety
2. Safety instructions Very hot steam comes out of the mist outlet opening. Caution, risk of burns! During the fogging process, very hot fluid droplets can occasionally emerge from the fog outlet opening. For this reason, no people or heat-sensitive objects may be located within 1.5 m of the fog outlet. -
Page 6: Name Of The Parts
3. Designation of the parts Front Rear view... - Page 7 Top view battery pack...
-
Page 8: Preparation
"click" sound be heard. 4.3 Hose The Piccola is supplied with a hose cover for 15mm hoses. Please only use hoses that can handle the temperatures. The hose cover is held by a magnet on the device. The protruding ring on the hose cover is used for centering. -
Page 9: Working With The Piccola
A single shot mode is also implemented. 5.1 Display of the Piccola The operation of the Piccola takes place via the three buttons (minus / left, plus / right, enter) and the OLED display. In the upper part of the display, the charge status of the battery can be read on the left. -
Page 10: Mode Selection In The 5 Pin Xlr Connectors
In DMX mode, the socket is used to receive a DMX-512 telegram. Furthermore, the Piccola is RDM capable, so the DMX address can also be using an RDM changed capable lighting console. A firmware update via RDM is also possible. -
Page 11: Operation Dmx / Rdm
If a valid DMX signal is received, a small "R" appears above the quantity display. Since the Piccola needs energy from the battery for DMX reception, in this case it switches off one hour after the last valid DMX signal. This saves the battery. -
Page 12: Off The Piccola
The Piccola switches itself off automatically after the fogging process in order to extend the battery life. However, if a mode other than "Manual" is set, the Piccola can be switched off using the "Off" menu item. Note that the machine can then only be switched on using the buttons on... -
Page 13: The Battery Pack
6. The battery pack The supplied battery pack contains a maintenance-free 12V lead-gel battery. This can be used independently of the location. The Piccola is connected via a 4-pin. XLR connector. The charger is connected via a low voltage socket. -
Page 14: Charging The Battery Pack
6.3 Charging the battery pack Please use the power supply unit supplied to charge the battery pack. The charge control indicator lights up red during the charging process. When the battery is charged, the color changes to green. 6.4 Safety instructions for the battery pack Never short-circuit the battery, never reduce the cable ●... -
Page 15: Vaporizer
The four screws on the underside of the device can then be removed. Now carefully remove the lid of the Piccola. Carefully remove the ribbon cable from the connector on the motherboard. Then remove the screw from the evaporator board. -
Page 16: Care And Maintenance
8. Care and maintenance Avoid the Piccola without fluid. Otherwise, the pump will run dry. Avoid overheating the device from direct sunlight or direct headlights. The permissible ambient temperature can be found in the technical data. Immediately wipe up any leaked fluid. -
Page 17: Troubleshooting
● The temperature fuse in the evaporator is defective. The error message ● "HEM Error" appears in the display. The Piccola hums loudly when fogging. The pump runs dry. This must be avoided at all costs. ● Refill fluid Check ●... -
Page 18: Technical Data
10. Technical data Functional principle evaporator fog machine, directly heated, battery operated Connection 200W, 12V DC Heating Heating time 1 second Fluid tank 250ml fog density Adjustable in 25%, 50%, 75%, 100%, single shot Battery life Up to 30 min at 25%... -
Page 19: Guarantee
11. Guarantee conditions For the purchased Piccola smoke, hazebase provides a guarantee according to the following conditions: We repair free of charge in accordance with the following conditions (No. 2 to 6) Damage or defects in the device, i.e. e are demonstrably based on manufacturing defects if they are reported to us immediately after detection and within 24 months of delivery to the end user. - Page 20 If a damage or a defect cannot be remedied by us, or the improvement is refused or unreasonably delayed by us, within 6 months from the date of purchase / delivery, at the request of the end customer, either a.
