Summary of Contents for HazeBase Hazer2 the Cube

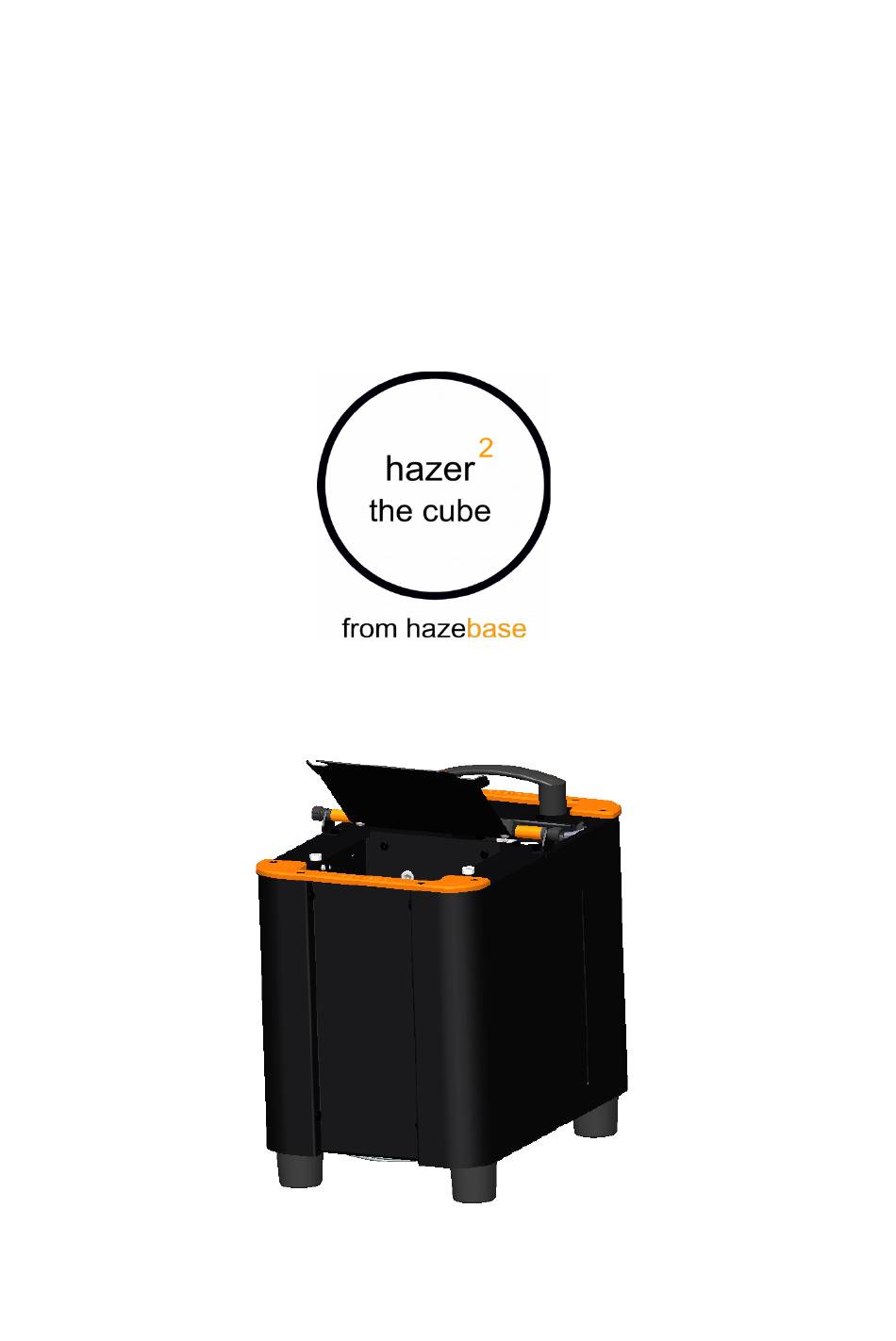

- Page 1 Instruction manual www.hazebase.com...
- Page 2 Hazer² – the cube Scope of delivery Hazer² • 1 liter empty canister • 1 liter Base*V Fluid • Fuel tank cap with quick coupling • Power cord with TrueOne plug • Instruction manual • Please check the completeness of the delivery...
-
Page 3: Table Of Contents
Hazer² – the cube content 1. Introduction.......................3 2. safety instructions....................4 3. Designation of the parts..................5 4. Preparation......................6 4.1 Select of the location...................6 4.2 Changing the fluid bottle................6 4.3 Air baffle....................6 5. haze fluid......................7 6. Working with the Hazer²..................7 6.1 Control panel of the hazer²................8 6.2 Operation in the stand-alone mode..............8 6.3 Operation via DMX512/RDM.................9 6.4 Operation via cable remote (option)............10... -
Page 4: Introduction
Hazer² – the cube 1. Introduction Hazer² is a latest generation haze generator. It offers a variety of possibilities to show your light effects even better. Hazer² used generate haze. Thus, atmospheric effect can be created, which is necessary for an appealing light show. Due to the adjustability of pump power, fan speed and blow-out angle, almost any desired haze density can be generated. -
Page 5: Safety Instructions
Hazer² – the cube 2. safety instructions Very hot steam escapes from the mist outlet. Caution: Danger of burns! • During the fogging process, very hot fluid droplets may occasionally escape • from the fog outlet opening. Therefore, there must be no persons or heat- sensitive objects within a distance of 1.5 m from the fog outlet opening. -
Page 6: Designation Of The Parts
Hazer² – the cube 3. Designation of the parts Top view handle Air baffle Fluid bottle Haze nozzle Difusor Viewing slot back view keyboard with OLED-Display Air baffle Power connection DMX/RDM and remote port Air intake... -
Page 7: Preparation
Hazer² – the cube 4. Preparation 4.1 Select of the location The location where the Hazer² is operated must have good ventilation, with cold and fog-free air • be dry • be vibration and shock free • consist of a non-flammable footprint •... -
Page 8: Haze Fluid
Hazer² – the cube 5. haze fluid Please use only the original base*V Fluid for the Hazer². 6. Working with the Hazer² Hazer² is a latest generation haze generator. It can be used to generate anything from the finest haze to a fog-like effect. The effect can only build up slowly. -
Page 9: Control Panel Of The Hazer²
Hazer² – the cube 6.1 Control panel of the hazer² menue field Heater on Enter button Menue button Value field Plus button Minus button Hazer² is operated via the four push buttons (menu, minus, plus, confirmation) and the OLED display. The menu fields are located in the corners of the display, and the value field in the center, which displays the value of the selected menu field. -
Page 10: Operation Via Dmx512/Rdm
Hazer² – the cube 6.3 Operation via DMX512/RDM DMX mode DMX signal When operating via DMX512, the XLR input must first be set to DMX (see chapter Options). As shown, "DMX" appears in the upper right menu field. The DMX address can be changed with the plus and minus keys and must be stored... -
Page 11: Operation Via Cable Remote (Option)
Hazer² – the cube 6.4 Operation via cable remote (option) When operating via the cable remote, the XLR input must first be set to Remote (see chapter Options). After plugging in the cable remote control, the Hazer² automatically recognizes that an analog cable remote control has been plugged in. - Page 12 Hazer² – the cube Up to 60 different radio remote transmitters can be programmed on the machine. For this purpose, the "Remote" submenu must first be selected. In the Remote submenu, the menu fields are replaced. At the top left, the channel (key on the hand-held transmitter) can be selected.
-
Page 13: Options Menue
Hazer² – the cube 7 options menue In the submenu "options" the protocol of the XLR sockets can be selected. 7.1 Setting the communication protocol of the XLR jacks In the menu item "Input" the communication protocol of the XLR sockets can be selected. -
Page 14: Care And Maintenance
Hazer² – the cube 8. Care and maintenance Avoid running the Hazer² without fluid. The pump will otherwise run dry. • Avoid overheating the device due to direct sunlight or direct spotlight. The • permissible ambient temperature can be found in the technical data. Make sure that the ventilation slots of the machine are not clogged with •... -
Page 15: Troubleshooting
Hazer² – the cube 9. Troubleshooting Hazer² does not haze Check external control • Check power source • Check fluid quantity • Check connection at fluid tank for tightness • Check suction strainer in tank for contamination • Check fluid hose and connector for tightness •... -
Page 16: Technical Data
Hazer² – the cube 10. Technical data 10.1 Hazer² Device type Haze machine with directly heated vaporizer Power 100-240V~, 50-60 Hz, 350 W (PowerCON TRUE1) Heat up time ca. 10 sec. Fluid consumption Up to 200 ml /h. Fluid bottle size 1 Liter control 1,3“... - Page 17 Furthermore, the warranty claim expires if a fog fluid other than the original hazebase fog fluid was used. If the devices are sent to us without prior removal or emptying of the fluid canister, the warranty also expires, as well as in the case...
- Page 18 Hazer² – the cube If a damage or defect cannot be remedied by us, or if the remedy is refused or unreasonably delayed by us, within 6 months from the date of purchase/delivery, at the request of the end user either a.
- Page 19 Hazer² – the cube hazebase Stargarder Strasse 2 30900 Wedemark Deutschland Inhaberin: Uta Raabe Telefon: 0049-5130-37 10 05 Telefax: 0049-5130-37 10 06 Email: info@hazebase.com Internet: www.hazebase.com...
