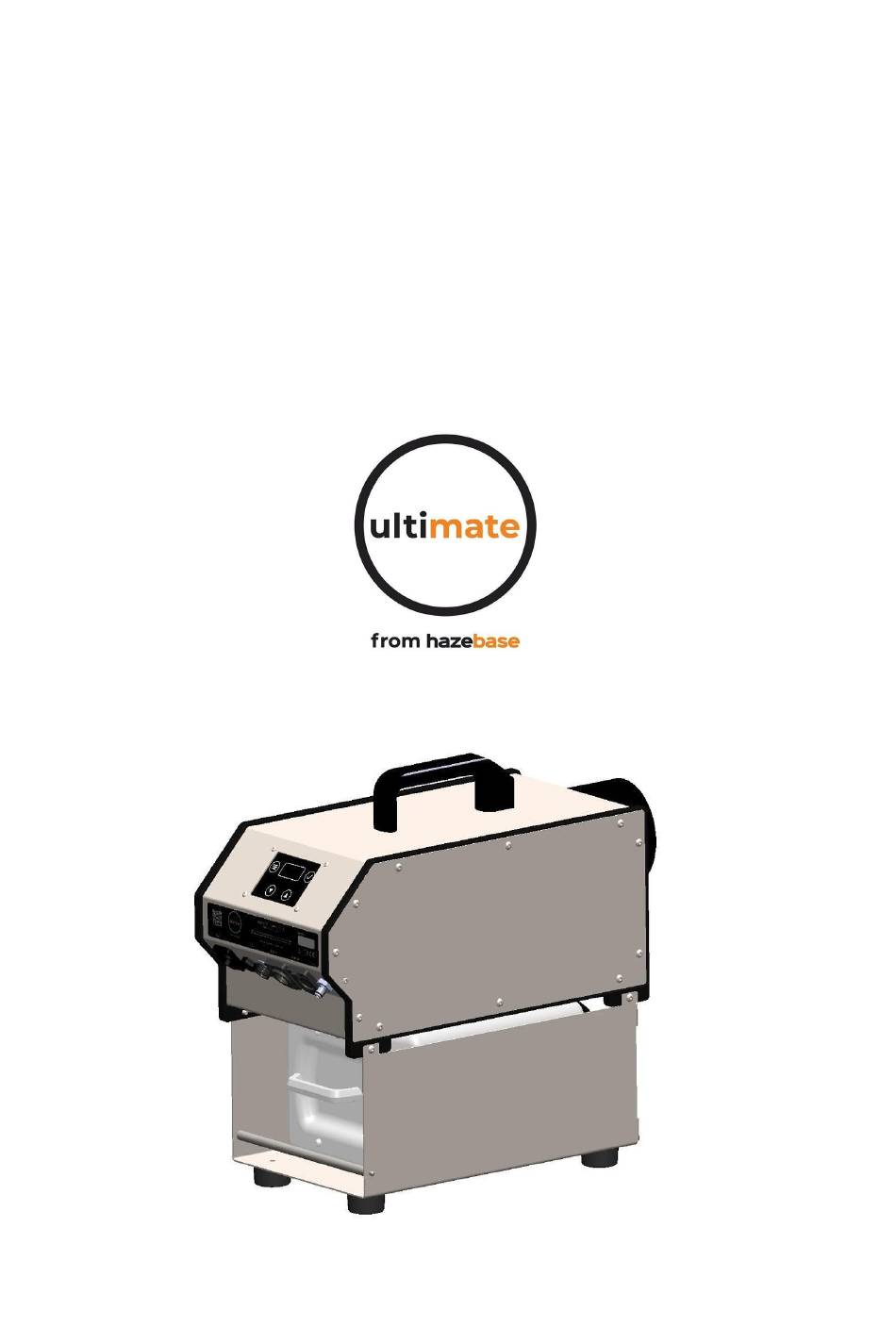

- Page 1 Instruction manual www.hazebase.com...
- Page 2 Scope of delivery 1 ultimate 1 5l empty canister 1 tank cap with quick coupling 1 fluid hose with quick coupling and nozzle 1 power cable with TrueOne plug 1 tank holder 1 instruction manual Please check that the delivery is complete.
-
Page 3: Table Of Contents
4.2 Changing the canister 4.3 Hose cover 5. Fog fluids 6. Working with the ultimate 6.1 Control panel of the ultimate 6.2 Operating in stand-alone mode 6.3 Operation via DMX512/RDM 6.4 Operation via the AUX input 6.5 Operation via Modbus RTU 6.6 Operation via cable remote control (option) -
Page 4: Introduction
1. Introduction The ultimate is a powerful fog machine with unique direct heating. It requires only the shortest possible heating time (2 sec.) and also has a stainless steel housing with IP64 protection class. The possible applications are varied and range from theme parks and fire drills to... -
Page 5: Safety Instructions
2. Safety instructions Very hot steam emerges from the mist outlet. C aution: Danger of burns ! During the fogging process, very hot fluid droplets may occasionally escape from the fog outlet. Therefore, no persons or heat-sensitive objects may be located within 1.5 m of the fog outlet. -
Page 6: Description Of The Parts
3. Description of the parts Front view Handle Fog nozzle Hose cover Tank holder Fluid canister Rear view Membrane keyboard with OLED Display Fluid Inlet (1) Power supply DMX/RDM, Case ventilation Modbus and radio interface Remote control Input (3) -
Page 7: Preparation
4. Preparation 4.1 Selection of the location The location where the u ltimate m ust be operated have good ventilation ● be free of vibrations and shocks ● consist of a non-flammable floor space ● be far enough away from easily flammable objects ●... -
Page 8: Working With The Ultimate
6. Working with the u ltimate The u ltimate i s a fog machine with a strong output. From small fog clouds to dense, room-filling fog, any desired effect can be achieved. The fine adjustment of the pump allows fog output settings between 1% and 100%. -
Page 9: Operating In Stand-Alone Mode
6.2 Operating in stand-alone mode The simplest case of control is the stand-alone mode. For this purpose, the pump value is set to the desired value and the confirmation key is pressed. The machine immediately starts to heat up the heating element and starts the fogging process. -
Page 10: Operation Via The Aux Input
6.4 Operation via the AUX input The u ltimate h as an aux-input (3), with which the machine can be controlled via 0-10V. The pin assignment of this input is shown on the right. Pin 1 and 4 are used to supply possibly connected consumers (12V, max. -
Page 11: Operation Via Cable Remote Control (Option)
In the Modbus submenu, the menu fields are replaced. The address of the unit can be set at the top left. The baud rate of the communication is set at the bottom left and the data width, parity and stop bits at the bottom right. The settings are made in the same way as in the main menu. -
Page 12: Operation Via Radio Remote Control (Optional)
6.7 Operation via radio remote control (optional) When operating radio remote control, the XLR input (2) must first be set to Remote (see chapter Options). When the radio remote control plugged the u ltimate automatically recognizes that a radio remote control has been plugged in. -
Page 13: Operation Using The Internal Timer
6.8 Operation using the internal timer To set and activate the internal timer, you must first switch to the Timer sub-menu. Here too, the menu fields are changed accordingly. upper left corner you can now set the pump value that is used in timer mode. -
Page 14: Menu Options Items
7. Menu options items In the " options" sub-menu, you can set the type of fluid used and also select the protocol of the XLR sockets. 7.1 Setting the fluid used After activating the submenus, the menu fields in the corners are changed. -
Page 15: Care And Maintenance
8. Care and maintenance Avoid running the u ltimate w ithout fluid. Otherwise, the pump will run dry. ● Avoid overheating the unit due to direct sunlight or direct spotlight. The ● permissible ambient temperature can be found in the technical data. -
Page 16: Troubleshooting
9. Troubleshooting The u ltimate d oes not fog Check external control Check power source Check fluid quantity Check the connection on the fluid tank for leaks Check suction strainer in the tank for contamination Check fluid hose and connector for leaks The ... -
Page 17: Technical Data
10. Technical data Device type Directly heated evaporator fog machine Performance 200-250V~, 50-60 Hz, 3300 W (PowerCON TRUE1) Heating time approx. 2 seconds Fluid consumption up to 90ml/min Tank capacity 5 liters Operation 1.3" OLED display, membrane keyboard Interfaces... -
Page 18: Guarantee Conditions
Furthermore, the warranty claim expires if a fog fluid other than the original hazebase fog fluid is used. If the units are sent to us without prior removal or emptying of the fluid canister, the warranty will also expire, as well as in the case of proven disregard of the operating instructions or errors due to improper treatment/handling as well as damage due to the use of force. - Page 19 If a damage or defect cannot be remedied by us, or if we refuse or unreasonably delay the remedy, we will, at the request of the end user, within 6 months of the purchase/delivery date either a. replacement delivered free of charge or b.
-
Page 20: A Annex
A Annex... - Page 21 ultimate...
- Page 22 Stargarder Straße 2 30900 Wedemark Germany Owner: Uta Raabe Phone : +49 5130 37 10 05 Fax: +49 5130 3710 06 E-Mail: info@hazebase.com Internet: www.hazebase.com...
