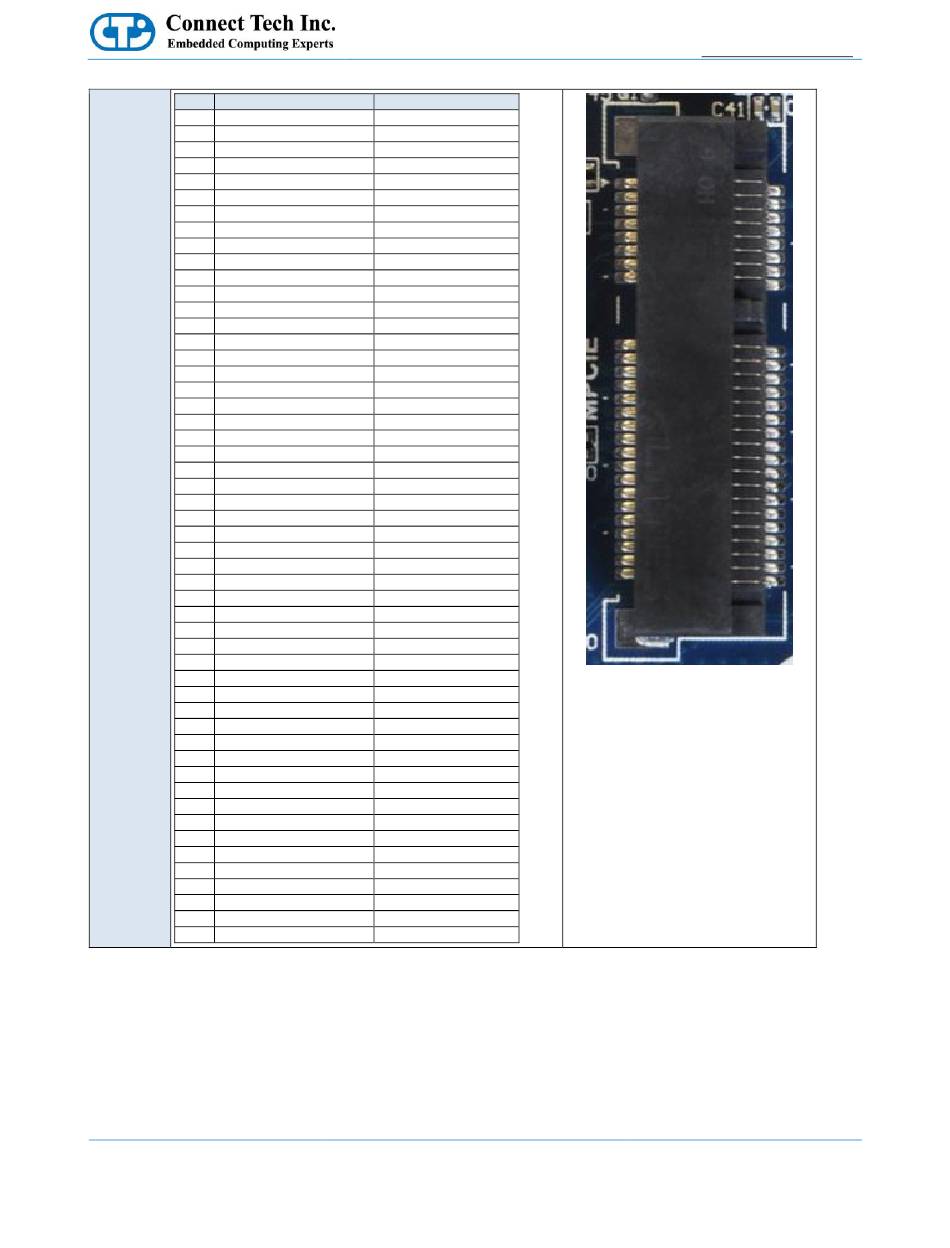

Connect Tech NVIDIA Jetson TX2 User Manual page 20

Pin Mini-PCIe Description
Pinout
1 -
2 +3.3V
3 -
4 GND
5 -
6 +1.5V
7 CLKREQ#
8 UIM_PWR*
9 GND
10 UIM_DATA*
11 PCIe CLK+
12 UIM_CLK*
13 PCIe CLK-
14 UIM_RESET*
15 GND
16 UIM_VPP*
17 -
18 GND
19 -
20 W_DISABLE#
21 RESV
22 -
23 PCIe RX+
24 +3.3V
25 PCIe RX-
26 GND
27 GND
28 +1.5V
29 GND
30 SMB_CLK
31 PCIe TX-
32 SMB_DATA
33 PCIe TX+
34 GND
35 GND
36 USB D- (P9 Only)
37 GND
38 USB D+ (P9 Only)
39 +3.3V
40 GND
41 +3.3V
42 -
43 RESV
44 -
45 -
46 -
47 -
48 +1.5V
49 -
50 GND
51 -
52 +3.3V
Document: CTIM-00153
Revision: 0.14
Spacely Carrier for NVIDIA® Jetson™ TX2/TX2i/TX1
mSATA Description
-
+3.3V
-
GND
-
+1.5V
-
-
GND
-
-
-
-
-
GND
-
-
GND
-
-
RESV
-
SATA TX+
+3.3V
SATA TX-
GND
GND
+1.5V
GND
-
SATA RX-
-
SATA RX+
GND
GND
-
GND
-
+3.3V
GND
+3.3V
-
RESV
-
-
-
-
+1.5V
-
GND
-
+3.3V
Page 20 of 29
Connect Tech Inc. 800-426-8979 | 519-836-1291
www.connecttech.com
*These pins connected directly from
Mini-PCIe connector to P3 SIM
connector.
Users Guide
Date: 2018-11-13
