Hardware Installation and Reference Guide

2 Product Installation

Make sure that you have read Chapter 1 carefully.
Make sure that the requirements in Chapter 1 are met.
Verify that all required accessories are complete according to the packing list.

2.1 Installation Procedure

Before installation, ensure that:

Sufficient airflow is available for the device.

Temperature and humidity requirements for the device are met.

The power supply is properly deployed and power requirements are met.

There is sufficient space for installing the device.


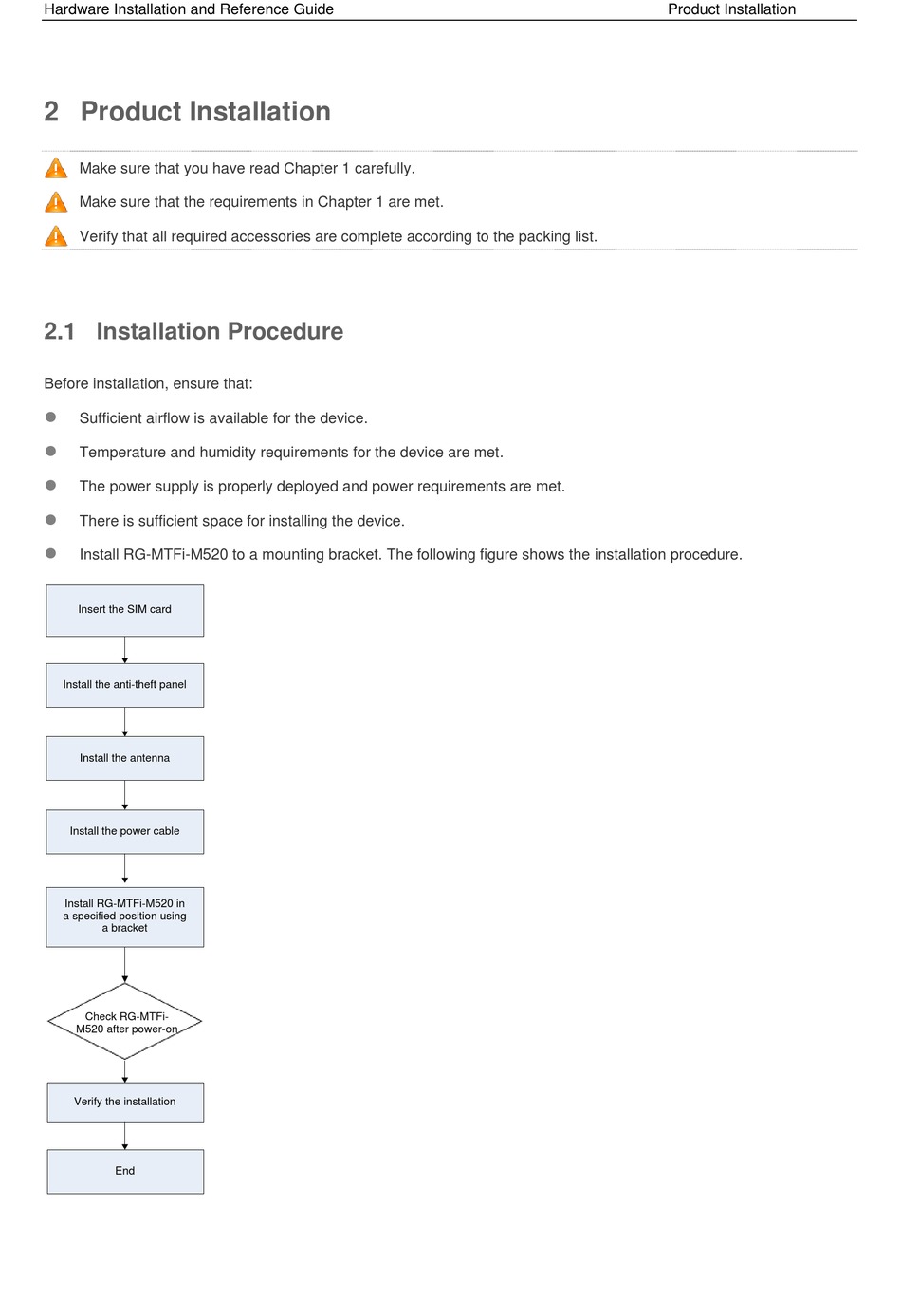

Install RG-MTFi-M520 to a mounting bracket. The following figure shows the installation procedure.
Insert the SIM card
Install the anti-theft panel
Install the antenna
Install the power cable
Install RG-MTFi-M520 in
a specified position using
a bracket
Check RG-MTFi-
M520 after power-on
Verify the installation
End
