Note: The camera only supports line level mono audio input and an NTSC or PAL video output.
The video output signal is determined by the camera flicker control setting. When the camera flicker control
is set to 60 Hz, the video output signal is NTSC. When the flicker control is set to 50 Hz, the video output
signal is PAL. Use the Camera Installation Tool to configure the camera's flicker control in the Image and
Display setup.

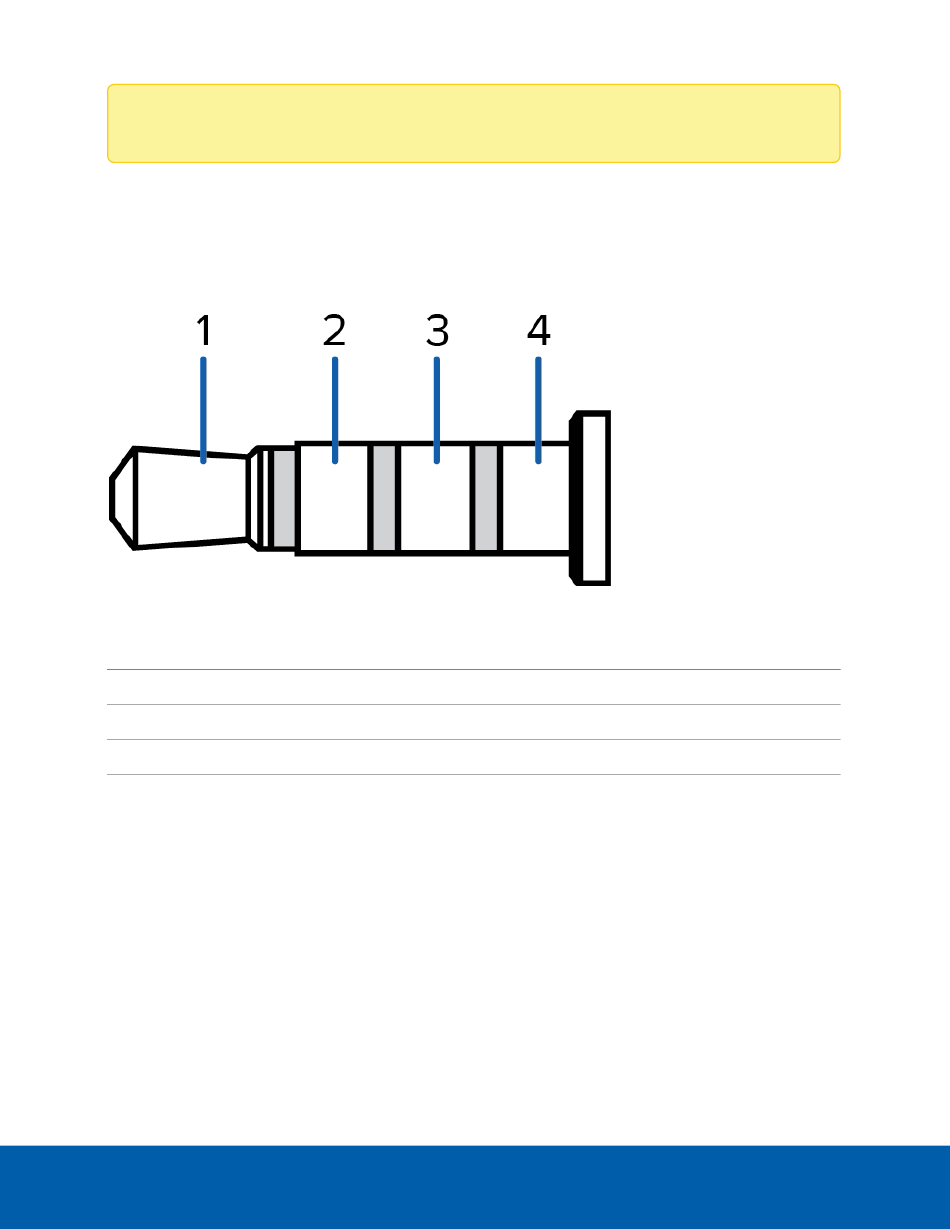

The pinout for the connector is shown in the following diagram:
The wiring for the connector pinout is shown in the following table:
Pin
Purpose
1
Audio IN
2
Composite Video OUT
3
GND
4
Audio OUT
Connecting to Microphones, Speakers, and Video Monitors
Wire
Red
Black
Yellow
Green
11
