Section 11: Diagrams

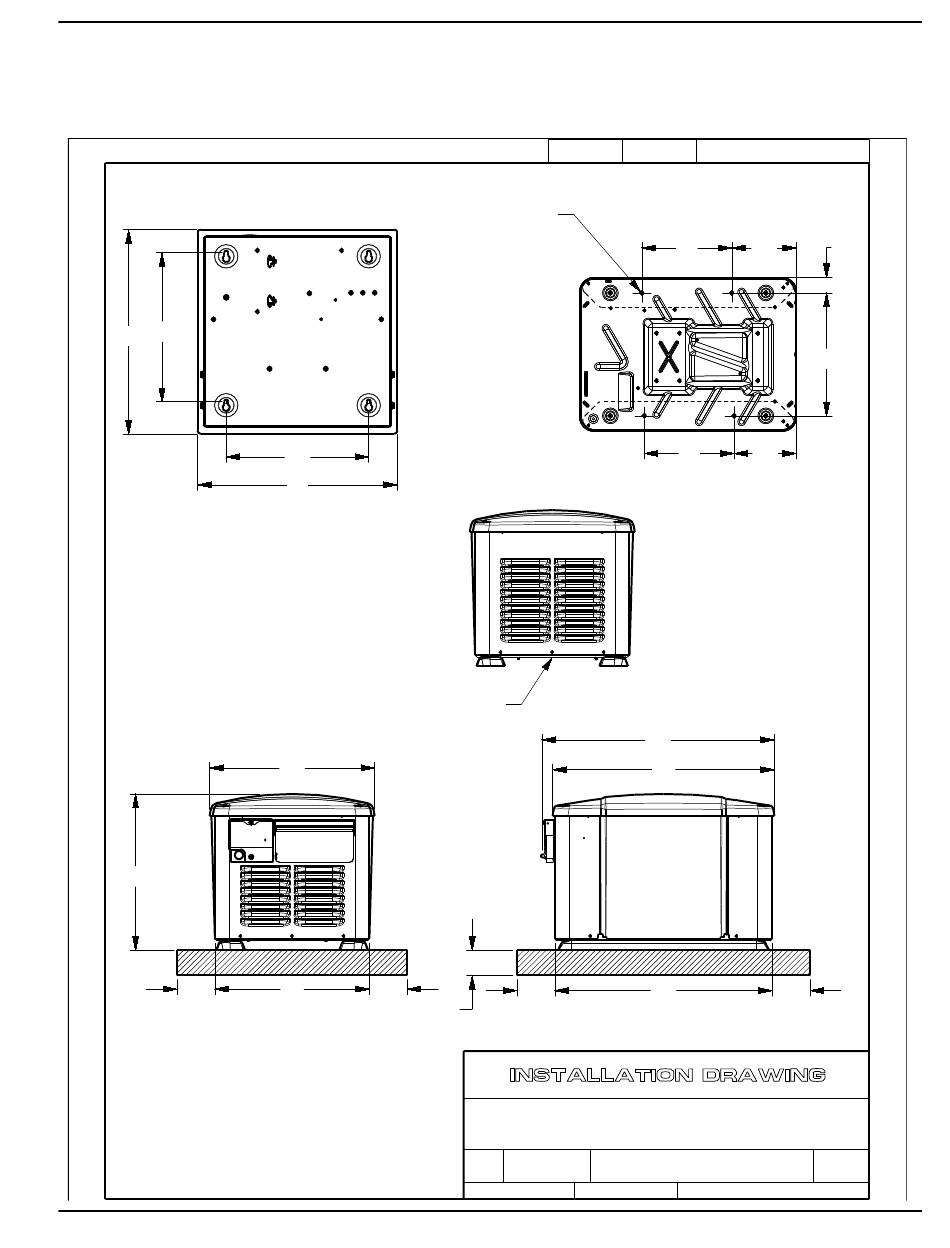

Installation Drawing 10000022108-A, page 1 of 2

292.1
400.6
[11.5]
[15.8]
TRANSFER SWITCH
642.2
[25.3]
152.4
[6.0]
LEFT SIDE VIEW
Installation Guidelines for 60 Hz PowerPact™
(DO NOT REMOVE MOUNTING FEET
DURING CONCRETE PAD INSTALLATION)
279.4
[11.0]
392
[15.4]
(IF SUPPLIED)
LIFT UNIIT BY CENTER
CLEAR FROM MOUNTING FEET
679.6
[26.8]
636 152.4
[25.0] [6.0]
PEA GRAVEL MINIMUM
ALL DIMENSIONS IN:
MILLIMETERS [INCHES]
SH
1/2
HOLE LOCATIONS FOR
OPTIONAL MOUNTING TO
A CONCRETE PAD
5/16 DIA MASONRY ANCHOR
BOLTS RECOMMENDED
152.4
[6.0]
102
[4.0]
FRONT VIEW
TITLE
INSTALLATION DRAWING
PPACT W/ AUX SW
SIZE CAGE NO DWG NO
A
N/A
NTS
SCALE WT-KG
REV WINDCHILL VERSION
A
370 266.4
[14.6] [10.5]
370 256.4
[14.6] [10.1]
956.4
[37.7]
913.4
[36.0]
894.8 152.4
[35.2] [6.0]
10000022108
1 of 2
N/A SHEET
