Section 3: Site Selection and Preparation

Site Selection

ID Description
A Top of generator
B Front and end
clearance
C Rear clearance
D Windows and
openings
E Existing wall
F Removable fence
G Overhead clearance
Installation Guidelines for 60 Hz PowerPact™
D
5 ft (1.52 m)
B
3 ft*
(0.91 m)

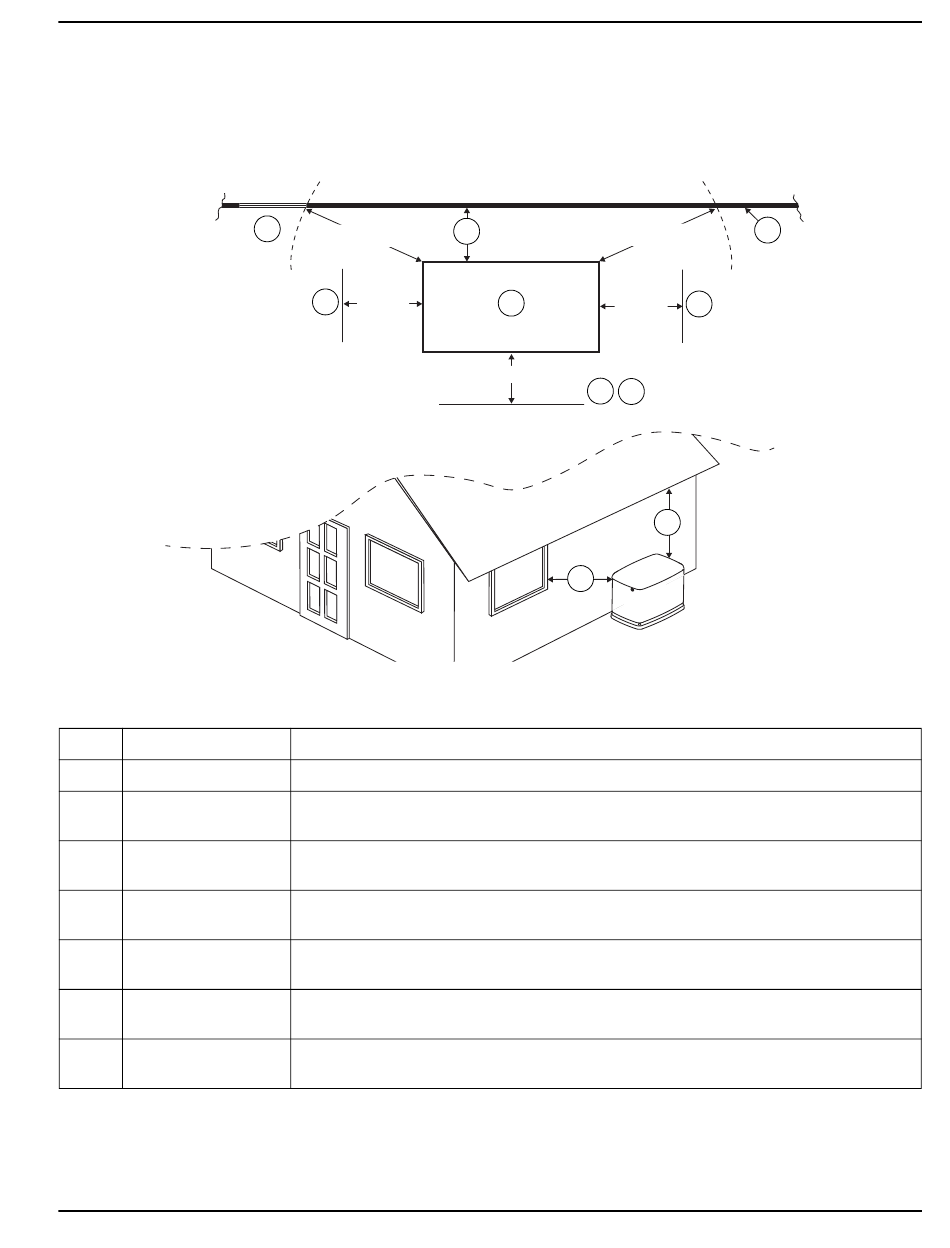

Figure 3-1. Installation Clearances
—
Minimum clear distances cannot include shrubs, bushes, or trees.
* See IMPORTANT NOTE on next page.
18 in (45.7 cm) minimum clearance per SwRI testing, labeling, and listing, unless state or
local codes dictate otherwise.
No operable windows, doors, or openings in the wall are permitted within 5 ft (1.52 m) from
any point of the generator.
One-hour fire rated walls allow closer placement of the generator set. Confirm before
installation.
Removable fence panels for servicing cannot be placed less than 3 ft (0.91 m) in front of the
generator.
5 ft (1.52 m) minimum distance from any structure, overhang, or projections from the wall.
DO NOT install under wooden decks or structures unless this distance is maintained.
