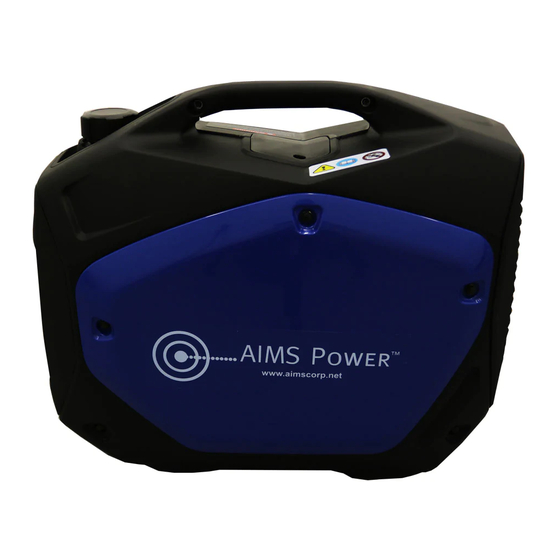

- Page 1 PORTABLE INVERTER GENERATOR GEN2000W120V READ AND UNDERSTAND THE MANUAL PRIOR TO USING. – 2018-08-06 (REV:01)
-
Page 2: Table Of Contents
INTRODUCTION Thank you for purchasing this Inverter Generator. Before using this product, please read this manual thoroughly and follow the instructions carefully. CONTENTS SAFETY INFORMATION........................2 CONTROLS & FEATURES......................4 PRE-OPERATION CHECK....................... 7 OPERATION ............................9 PERIODIC MAINTENANCE......................14 TROUBLESHOOTING ........................17 STORAGE............................18 SPECIFICATION..........................19 WIRING DIAGRAM..........................20... -
Page 3: Safety Information
WARNING READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE GENERATOR. SAFETY INFORMATION EXHAUST FUMES ARE POISONOUS Never operate the generator in a closed area. It may cause unconsciousness or death within a short period of time. Operate the generator in a well ventilated area. FUEL IS HIGHLY FLAMMABLE AND POISONOUS Always turn off the engine when refueling. - Page 4 CONNECTION NOTES Do not connect the generator to commercial power outlet. Do not connect the generator in parallel with any other generator. SAFETY SYMBOLS Caution - The user should be aware of a general hazard. Dangerous Voltage Flammable Hot Surface - Do not touch.
-
Page 5: Controls & Features
CONTROL & FEATURES GENERATOR OVERVIEW (FOR ELECTRIC START TYPE) (1) Fuel tank (2) Spark plug (3) Muffler (4) Carrying handle (5) Choke lever (6) Air filter (7) Fuel pump (8) Fuel cock (9) Recoil starter (10) Oil filler cap (11) Fuel tank cap (12) Fuel filter (13) AC pilot light (14) Overload indicator light... - Page 6 OIL WARNING SYSTEM FIG.2 When the oil level falls below the lower level, the engine stops automatically. Unless you refill with oil, the engine will not start again. FIG.2 ENGINE AND FUEL COCK SWITCH The engine switch controls the ignition system. FIG.3 ①...
- Page 7 OUTPUT RESET FIG.7 Push reset button for 2 seconds. The generator will recover and produce AC power. FIG.7 NOTE: Reduce the load on the generator to ensure that the total load is within the rated power. FIG.8 AUTO GEN START The auto gen start controls the ignition system.
-
Page 8: Pre-Operation Check
PRE-OPERATION CHECK FIG.9 NOTE: Pre-operation checks should be made each time the generator is used. CHECK ENGINE FUEL Make sure there is enough fuel in the tank. FIG.9 If fuel is low, refill with unleaded automotive gasoline. Be sure to use the fuel filter screen on the fuel filter neck. FIG.10 Recommended fuel: Unleaded gasoline. - Page 9 GROUND (Earth) FIG.12 WARNING: It is important to properly ground your generator before using. Use an 8AWG wire and a small metal earth spike. The wire and earth spike are not supplied with the unit. FIG.12 CONNECT BATTERY (for electric starting system) The battery for electric starter should be fixed on the handle of generator.
-
Page 10: Operation
OPERATION FIG.15 NOTE: The generator has been shipped without engine oil. Fill with oil or it will not start. Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine. FIG.16 STARTING THE ENGINE NOTE: Before starting the engine, do not connect electric appliances. - Page 11 from falling over when pulling the recoil starter. FIG.19 Warm up the engine. FIG.20 Turn the choke lever back to the│ │RUN position. FIG.20 Warm up the engine without a load for a few minutes. FIG.21 B. Electric start 1. Make sure the fuel cock lever is in the ON position. 2.
- Page 12 USING ELECTRIC POWER FIG.24 1. AC APPLICATION (a) Check the AC pilot lamp for proper voltage. (b) Turn off the switch(es) of the electrical appliance(s) before connecting to the generator. (c) Insert the plug(s) of the electrical appliance(s) into the outlet. FIG.24 CAUTION: FIG.25 Be sure the electric appliance is turned off before plugging in.
- Page 13 3. DC APPLICATION (option) FIG.28 This applies to 12V battery charging only. Aim for specific gravity and charging time 1.30 (a) Disconnect the leads for the battery. 1.26 Fully loosen the battery fluid filler cap. 1.22 Fill distilled water to the upper limit, if the battery fluid is low level. 1.18 Measure the specific gravity for the battery fluid by using the 1.14...
- Page 14 STOPPING THE ENGINE FIG.30 1. Turn off the power switch of the electric device or disconnect any electric devices. FIG.30 2. Turn the engine switch to STOP position. FIG.31 FIG.31 3. Turn the fuel cock lever to OFF. FIG.32 STOP FIG.32...
-
Page 15: Periodic Maintenance
PERIODIC MAINTENANCE MAINTENANCE CHART Pre-operation Initial Every Every Every check 1 months 3 months 6 months 12 months Item Remarks (daily) or 20 Hr or 50Hr or 100Hr or 300Hr Spark Check condition adjust gap and Plug clean. Replace if necessary. Engine Check oil level ... - Page 16 ENGINE OIL REPLACEMENT FIG.33 Place the generator on a level surface and warm up the engine for several minutes. Then stop the engine and turn the fuel cock knob to OFF. Turn the fuel tank cap air vent knob counterclockwise to the CLOSED position.
- Page 17 CAUTION: FIG.37 The engine should never run without the element; excessive piston and/or cylinder wear may result. CLEANING AND ADJUSTING SPARK PLUG 1. Remove the cover. 2. Check for discoloration and remove the carbon. 3. Check the spark plug type and gap. 4.
-
Page 18: Troubleshooting
Remove the cover. FIG.40 Remove the muffler screen. Use a flathead screw driver to pry the spark arrester out from the muffler. Remove the carbon deposits on the muffler screen and spark arrester using a wire brush. Replace the muffler screen. Replace the cover. -
Page 19: Storage
STORAGE Long term storage of your machine will require some preventative maintenance to guard against deterioration. DRAIN THE FUEL Remove the fuel tank cap, drain the fuel from the fuel tank. Remove the cover, drain fuel from the carburetor by loosening the drain screw. ENGINE Remove the spark plug, pour in about one tablespoon of SAE 10W30 or 20W40 motor oil into the spark plug hole and reinstall the spark plug. -
Page 20: Specification
SPECIFICATION GEN2000W120V MODEL Type Portable Inverter Generator AC Voltage 100V, 110V, 120V Frequency 60Hz Max. Output 2.0 kW Rated Output 1.9 kW Power Factor DC Output 12V / 4.0A 5V / 1A 5V / 2.1A(Option) Model XY156F Type Air-cooled, 4 cycle, OHV, Gasoline Engine Bore×Stroke... -
Page 21: Wiring Diagram
WIRING DIAGRAM CONTROL PANEL BLOCK GENERATOR BLOCK DC 12V OUTPUT DC PROTECTOR 6A RECTIFIER WINDING DC 5V OUTPUT AC PROTECTOR 20A GROUND TERMINAL MAIN AC OUTPUT INVERTER WINDING UNIT OUTPUT RESET WINDING ECO. SWITCH OUTPUT OVERLOAD IGNITION WINDING LOW OIL IGNITION CONTROLLER ELECTRIC LOCK STEPPER MOTOR ASSY.
