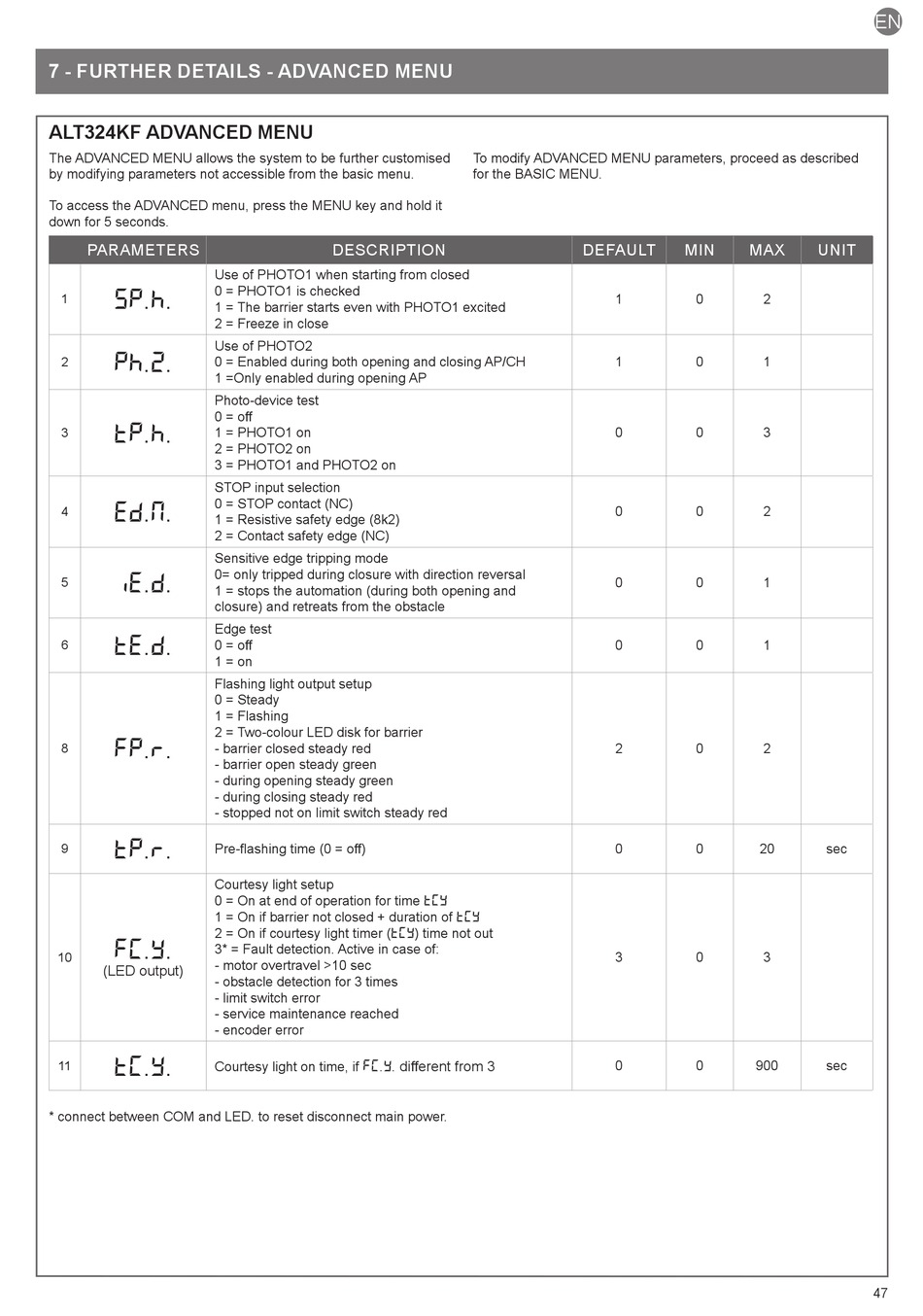

7 - FURTHER DETAILS - ADVANCED MENU
ALT324KF ADVANCED MENU
The ADVANCED MENU allows the system to be further customised
by modifying parameters not accessible from the basic menu.
To access the ADVANCED menu, press the MENU key and hold it
down for 5 seconds.
PARAMETERS
Use of PHOTO1 when starting from closed
0 = PHOTO1 is checked
SP.h.
1
1 = The barrier starts even with PHOTO1 excited
2 = Freeze in close
Use of PHOTO2
Ph.2.
0 = Enabled during both opening and closing AP/CH
2
1 =Only enabled during opening AP
Photo-device test
0 = off
tP.h.
1 = PHOTO1 on
3
2 = PHOTO2 on
3 = PHOTO1 and PHOTO2 on
STOP input selection
0 = STOP contact (NC)
Ed.N.
4
1 = Resistive safety edge (8k2)
2 = Contact safety edge (NC)
Sensitive edge tripping mode
0= only tripped during closure with direction reversal
iE.D.
5
1 = stops the automation (during both opening and
closure) and retreats from the obstacle
Edge test
tE.D.
6 0 = off
1 = on
Flashing light output setup
0 = Steady
1 = Flashing
2 = Two-colour LED disk for barrier
FP.r.
8 - barrier closed steady red
- barrier open steady green
- during opening steady green
- during closing steady red
- stopped not on limit switch steady red
tP.r.
Pre-flashing time (0 = off)
9
Courtesy light setup
0 = On at end of operation for time TCY
1 = On if barrier not closed + duration of TCY
2 = On if courtesy light timer (TCY) time not out
FC.Y.
3* = Fault detection. Active in case of:
10
- motor overtravel >10 sec
(LED output)
- obstacle detection for 3 times
- limit switch error
- service maintenance reached
- encoder error
tC.Y.
11 Courtesy light on time, if
* connect between COM and LED. to reset disconnect main power.
To modify ADVANCED MENU parameters, proceed as described
for the BASIC MENU.
DESCRIPTION
FC.Y. different from 3
DEFAULT MIN MAX
1 0
1 0
0 0
0 0
0 0
0 0
2 0
0 0
3 0
0 0 900
EN
UNIT
2
1
3
2
1
1
2
20 sec
3
sec
47
