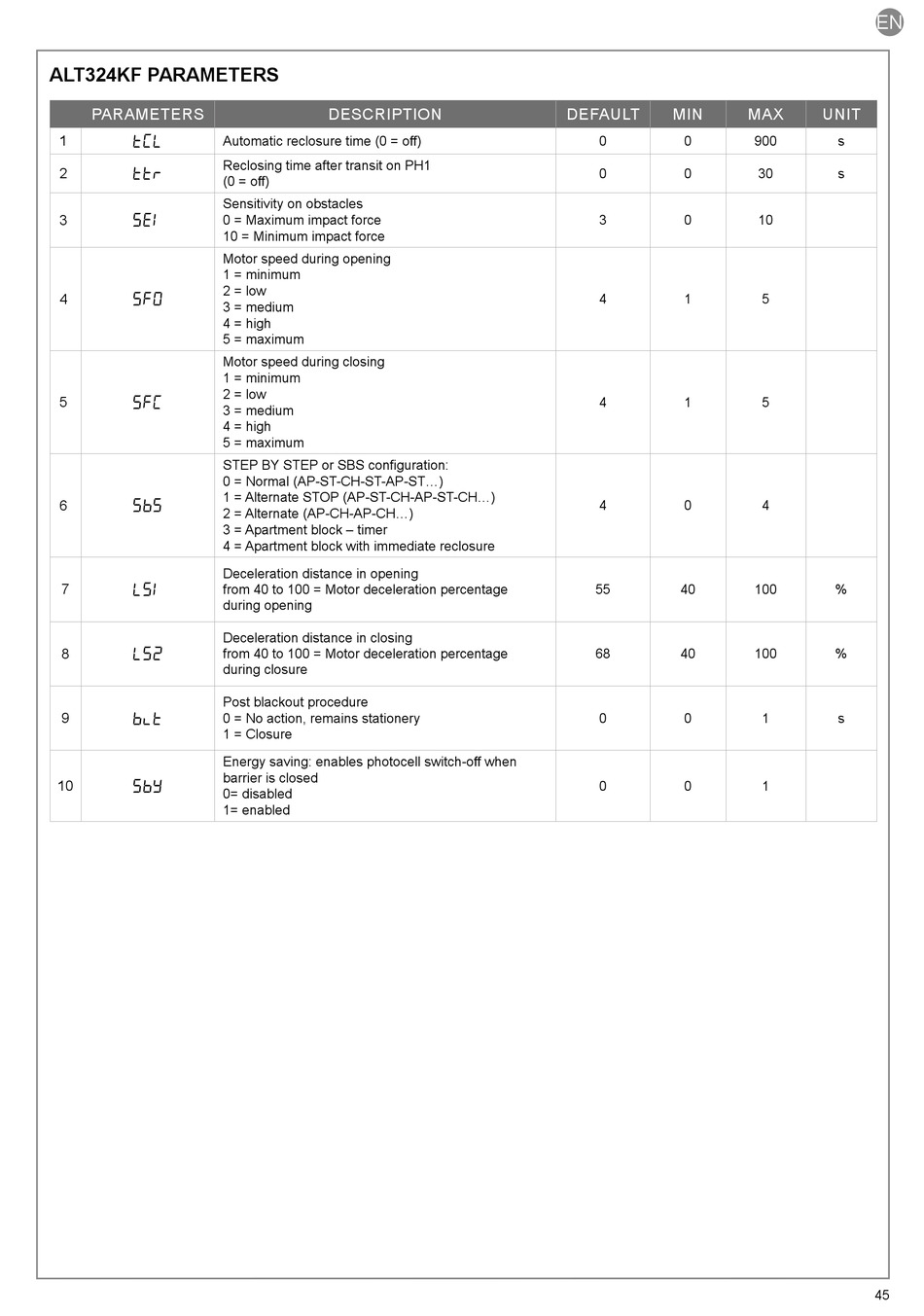

ALT324KF PARAMETERS
PARAMETERS
1 TCL
Automatic reclosure time (0 = off)
Reclosing time after transit on PH1
ttr
2
(0 = off)
Sensitivity on obstacles
SEI
3 0 = Maximum impact force
10 = Minimum impact force
Motor speed during opening
1 = minimum
2 = low
SFO
4
3 = medium
4 = high
5 = maximum
Motor speed during closing
1 = minimum
2 = low
SFC
5
3 = medium
4 = high
5 = maximum
STEP BY STEP or SBS configuration:
0 = Normal (AP-ST-CH-ST-AP-ST...)
1 = Alternate STOP (AP-ST-CH-AP-ST-CH...)
SBS
6
2 = Alternate (AP-CH-AP-CH...)
3 = Apartment block – timer
4 = Apartment block with immediate reclosure
Deceleration distance in opening
LSI
7 from 40 to 100 = Motor deceleration percentage
during opening
Deceleration distance in closing
LS2
8
from 40 to 100 = Motor deceleration percentage
during closure
Post blackout procedure
9 BlT
0 = No action, remains stationery
1 = Closure
Energy saving: enables photocell switch-off when
barrier is closed
SBY
10
0= disabled
1= enabled
DESCRIPTION DEFAULT MIN
0 0
0 0
3 0
4 1
4 1
4 0
55 40
68 40
0 0
0 0
EN
MAX UNIT
900 s
30 s
10
5
5
4
100 %
100 %
1 s
1
45
