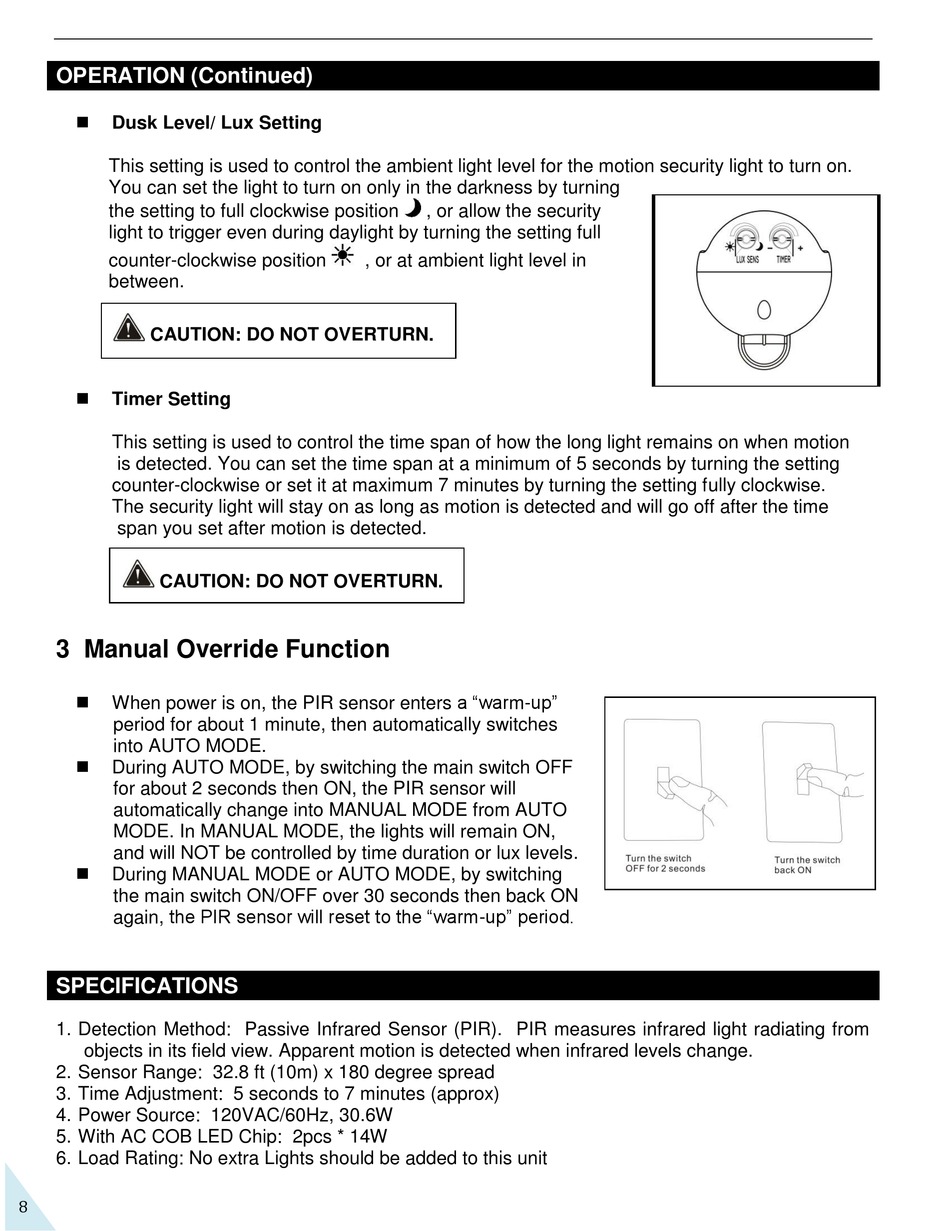

OPERATION (Continued)

Dusk Level/ Lux Setting
This setting is used to control the ambient light level for the motion security light to turn on.
You can set the light to turn on only in the darkness by turning
the setting to full clockwise position
light to trigger even during daylight by turning the setting full
counter-clockwise position
between.
CAUTION: DO NOT OVERTURN.

Timer Setting
This setting is used to control the time span of how the long light remains on when motion
is detected. You can set the time span at a minimum of 5 seconds by turning the setting
counter-clockwise or set it at maximum 7 minutes by turning the setting fully clockwise.
The security light will stay on as long as motion is detected and will go off after the time
span you set after motion is detected.
CAUTION: DO NOT OVERTURN.
3 Manual Override Function
 When power is on, the PIR sensor enters a "warm-up"
period for about 1 minute, then automatically switches
into AUTO MODE.

During AUTO MODE, by switching the main switch OFF
for about 2 seconds then ON, the PIR sensor will
automatically change into MANUAL MODE from AUTO
MODE. In MANUAL MODE, the lights will remain ON,
and will NOT be controlled by time duration or lux levels.

During MANUAL MODE or AUTO MODE, by switching
the main switch ON/OFF over 30 seconds then back ON
again, the PIR sensor will reset to the "warm-up" period.

SPECIFICATIONS

1. Detection Method: Passive Infrared Sensor (PIR). PIR measures infrared light radiating from
objects in its field view. Apparent motion is detected when infrared levels change.
2. Sensor Range: 32.8 ft (10m) x 180 degree spread
3. Time Adjustment: 5 seconds to 7 minutes (approx)
4. Power Source: 120VAC/60Hz, 30.6W
5. With AC COB LED Chip: 2pcs * 14W
6. Load Rating: No extra Lights should be added to this unit
8
, or allow the security
, or at ambient light level in
