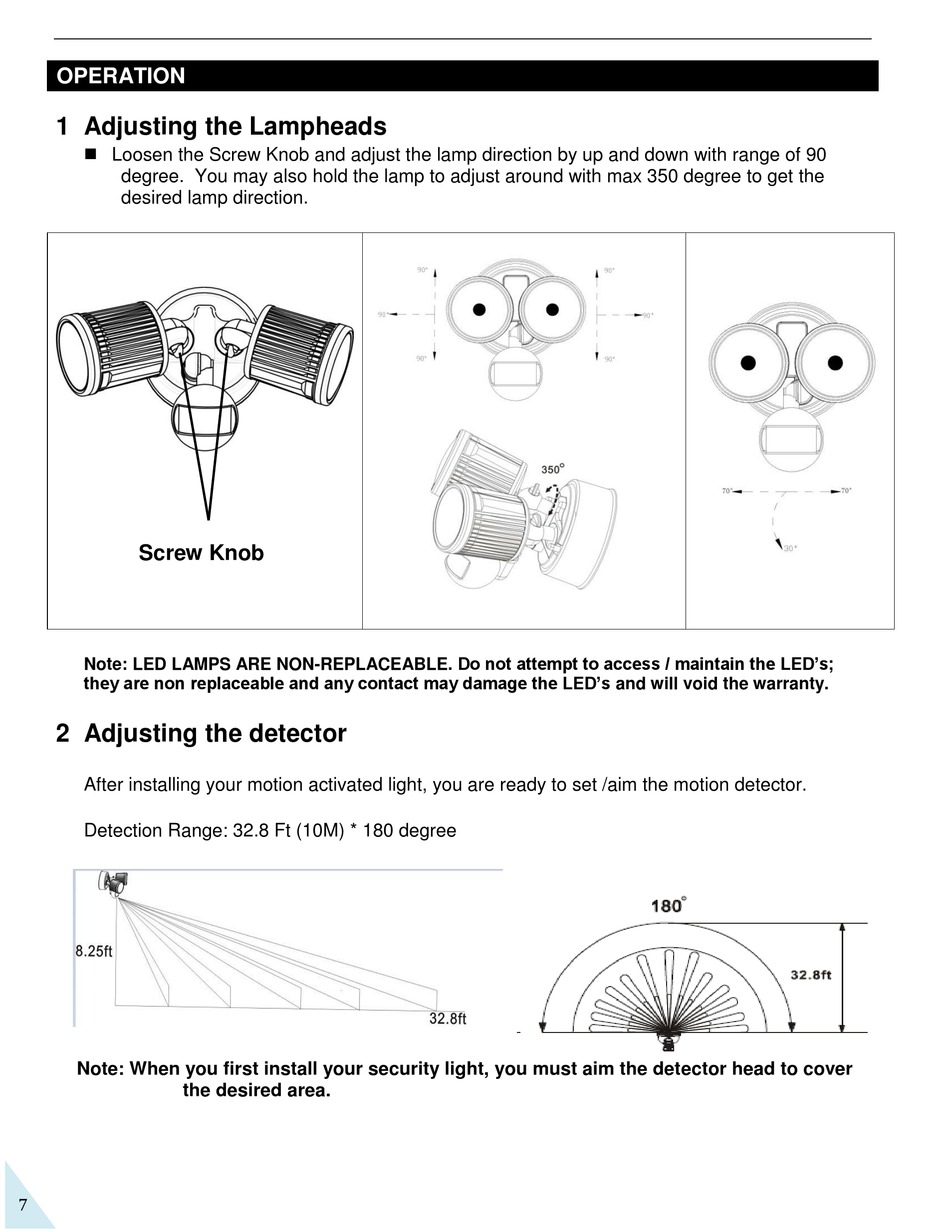

OPERATION

1 Adjusting the Lampheads
 Loosen the Screw Knob and adjust the lamp direction by up and down with range of 90
degree. You may also hold the lamp to adjust around with max 350 degree to get the
desired lamp direction.
Screw Knob
Note: LED LAMPS ARE NON-REPLACEABLE. Do not attempt to access / maintain the LED's;
they are non replaceable and any contact may damage the LED's and will void the warranty.
2 Adjusting the detector
After installing your motion activated light, you are ready to set /aim the motion detector.
Detection Range: 32.8 Ft (10M) * 180 degree
Note: When you first install your security light, you must aim the detector head to cover
the desired area.
7
