the bright way to do home security.
PDS 540 File Information
Client:
Amazon
Client ID:
10163406
Packaging Description:
IM
Contact: Art window/Reading ext:8237
Email: art-szo-design@testritegroup.com
Colors:
Cutter
CMYK
Diecut
LINKABLE SOLAR POWER
TWIN HEAD LED
®
SECURITY LIGHT
(2-PACK)
ES00935G
INSTALLATION INSTRUCTIONS
20211218
Packaging Design
Division:
File NO.:
T101P61Z01
Implement Confirmation
Item NO.:
ES00935G
Sales Division
Package Size:
10x15cm
Hunt
Finish Date:
Applicant
Signed by Applicant & Sales Division
Amy
20211218
for all Items
Design Division
Joe
Designer
Carol
Advertisement
Table of Contents
Related Manuals for Home Zone Security ES00935G
Summary of Contents for Home Zone Security ES00935G

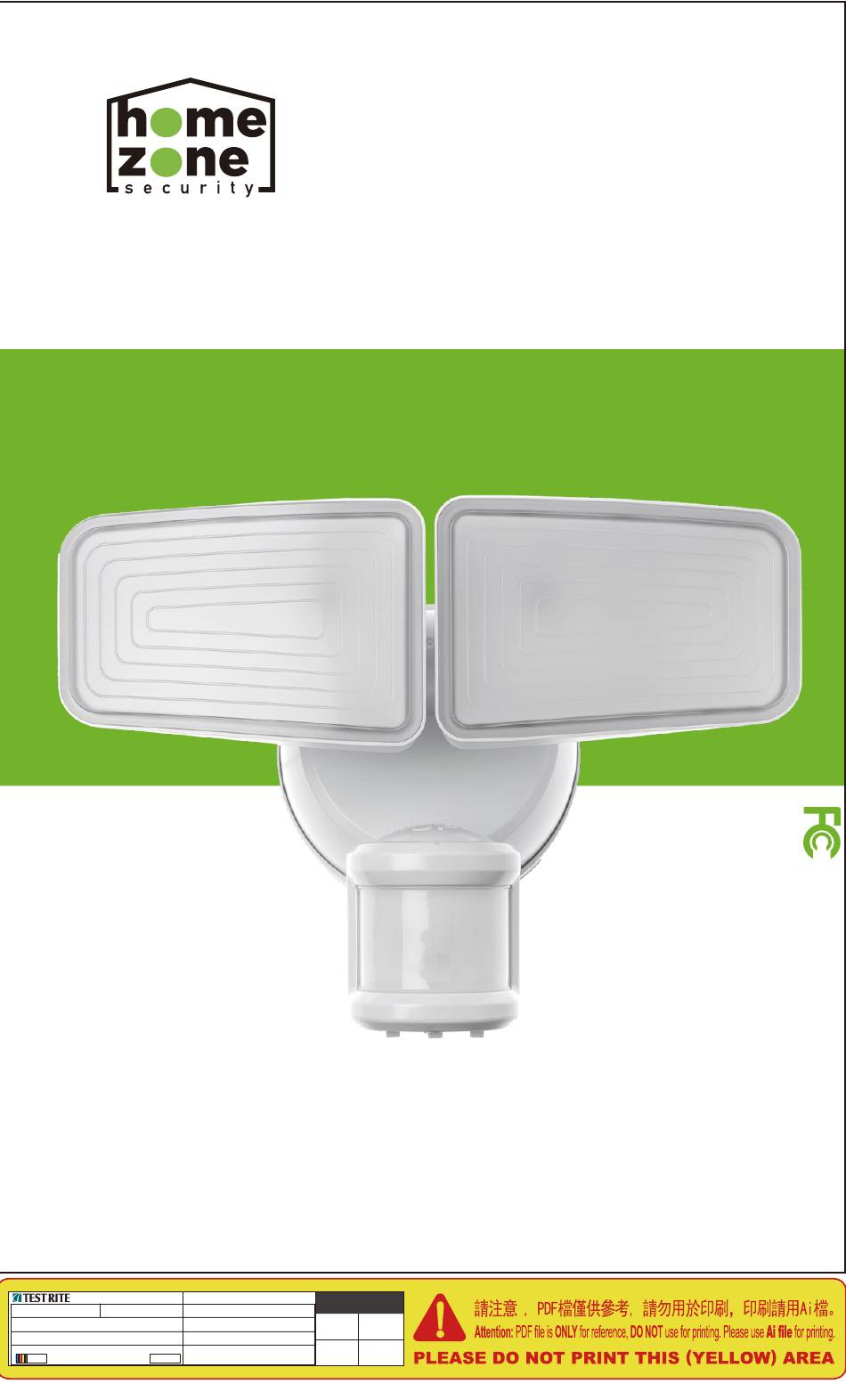

- Page 1 LINKABLE SOLAR POWER TWIN HEAD LED ® SECURITY LIGHT (2-PACK) ES00935G INSTALLATION INSTRUCTIONS the bright way to do home security. 20211218 Packaging Design Division: File NO.: T101P61Z01 PDS 540 File Information Implement Confirmation Client: Amazon Client ID: 10163406 Item NO.:...
- Page 2 Warning PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS, AS YOU MAY NEED THEM AT A LATER DATE. WARNING 1. The packing contains small parts that could be swallowed by children . 2. Keep the packaging material away from children and pets. 3.
-
Page 3: What's In The Box
What's in the box PREPARATION Tools required for assembly (not included): phillips screwdriver, safety goggles, power drill and ladder. Solar panel Light fixture Mounting plate Anchor Mounting screw Parameter Illumination output: approx. 1500 lumens / 5000K Sensor detect range: 40 feet x 180 degree Power source: 3 x 1.2V 2200mAh Lithium rechargeable battery. -
Page 4: Installation
Installation Mounting the light fixture as shown in the below figures Slide the mounting plate down off the back of the light fixture. Use your finger to push up on the mount plate. Use a power drill (not included) to drill the holes on your chosen mounting surface first. - Page 5 Slide the light fixture into the grooves of the mounted plate in parallel. Mounting the solar panel as shown in the below figure: • Use a power drill (not included) to drill 4 holes on your chosen mounting wall. • Use 4 of the Plastic Anchors (Part E) and Screws (Part D) to fix the solar panel on the wall.
-
Page 6: How It Works
Connecting the light fixture to the solar panel as shown in the below figure Carefully connect the wire from the solar panel (Part C) into the socket located under the Light Fixture (Part A), make sure the plug is securely connected. Your solar panel will now begin to charge. - Page 7 Product Function Description 1. SENS Setting Adjust the SENS setting to adjust range of Passive Infrared Motion Sensor Slide toward the “ ” (low) position for short detection range (3-30 ft). Slide toward the “ ” (Middle) position for middle detection range ( 3-49 ft). Slide toward the “...
- Page 8 4. Linkable Channels Setting This setting has 4 channels. As long as you choose “linkable” security light or sensors from Home Zone Security, selecting a specific channel to connect all linkable security lights and sensors. They will be grouped as an invisible system and working together.
-
Page 9: Cleaning And Maintenance
Cleaning and Maintenance To prolong the original appearance, clean the light fixture with a soft, damp cloth. Do not use paints, solvents, or other chemicals on this light fixture. They could cause a premature deterioration of the finish. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including... -
Page 10: Why Register
• Get exclusive deals delivered to you email. Get exclusive offers and deals when you subscribe! Thank you for choosing Home Zone Security! We are here to support you every step of the way. Please be sure to contact our customer support for troubleshooting and register your product for additional benefits.
