Cleaning the suction float

• Release the lid of the dirty water tank.
• Turn the lid over and check that the floats can move freely (fig. 29,
ref. 1).
• Clean the seals with a moist cloth (fig. 29, ref. 2).
• Refit the lid.
Do not clean seals with ethyl alcohol.

Cleaning the water/detergent tank filter

• Remove the dirty water tank and the detergent tank and set them
on the floor, referring to the section "Emptying the water/detergent
tank" and "Emptying the dirty water tank".
• Remove the filter and wash with water (fig. 30, ref. 1).

Cleaning the suction filter

• Remove the dirty water tank from the machine and set it on the
floor, referring to the section "Emptying the dirty water tank".
• Remove the filter and wash with water (fig. 30, ref. 2).

Cleaning the front squeegee suction hose

• Remove the dirty water tank and the detergent tank and set them
on the floor, referring to the section "Emptying the water/detergent
tank" and "Emptying the dirty water tank".
• Detach the hose from the diverter valve (fig. 31, ref. 1) and from the
front squeegee (fig. 29, ref. 2).
• Wash the hose by directing water into the bore (fig. 32)
• Reattach the hose.

Cleaning the rear squeegee suction hose

• Remove the dirty water tank and the detergent tank and set them
on the floor, referring to the section "Emptying the water/detergent
tank" and "Emptying the dirty water tank".
• Pull the handle up perpendicular to the machine.
• Lower the squeegee by operating the lever.
• Tilt the machine backwards and rest the handle on the floor.
• Detach the hose from the diverter valve and from the rear squeegee
(fig. 33, ref. 1).
• Wash the hose by directing water into the bore (fig. 32)
• Reattach the hose.
! INFORMATION
EN
1
2

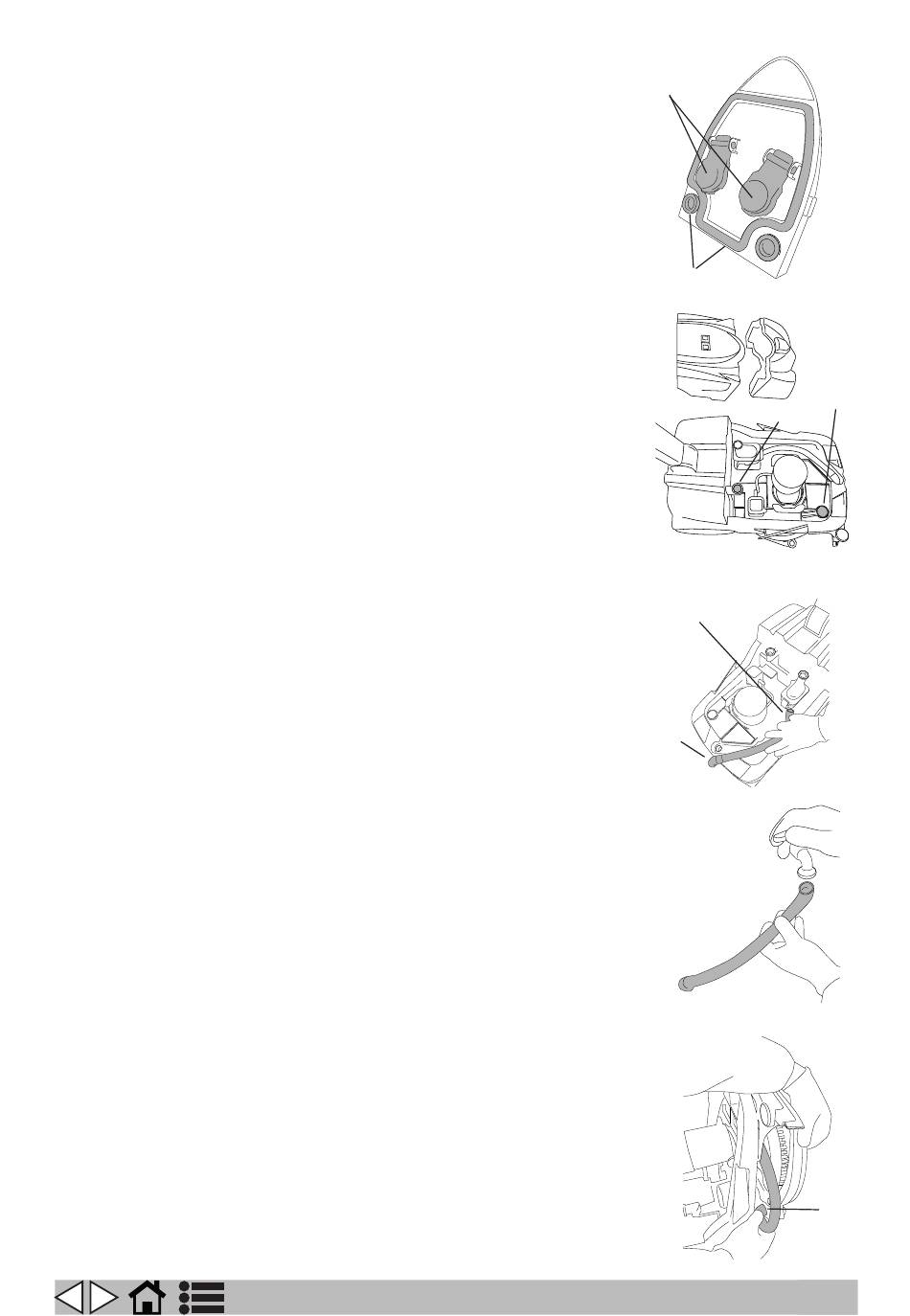

Fig.29
