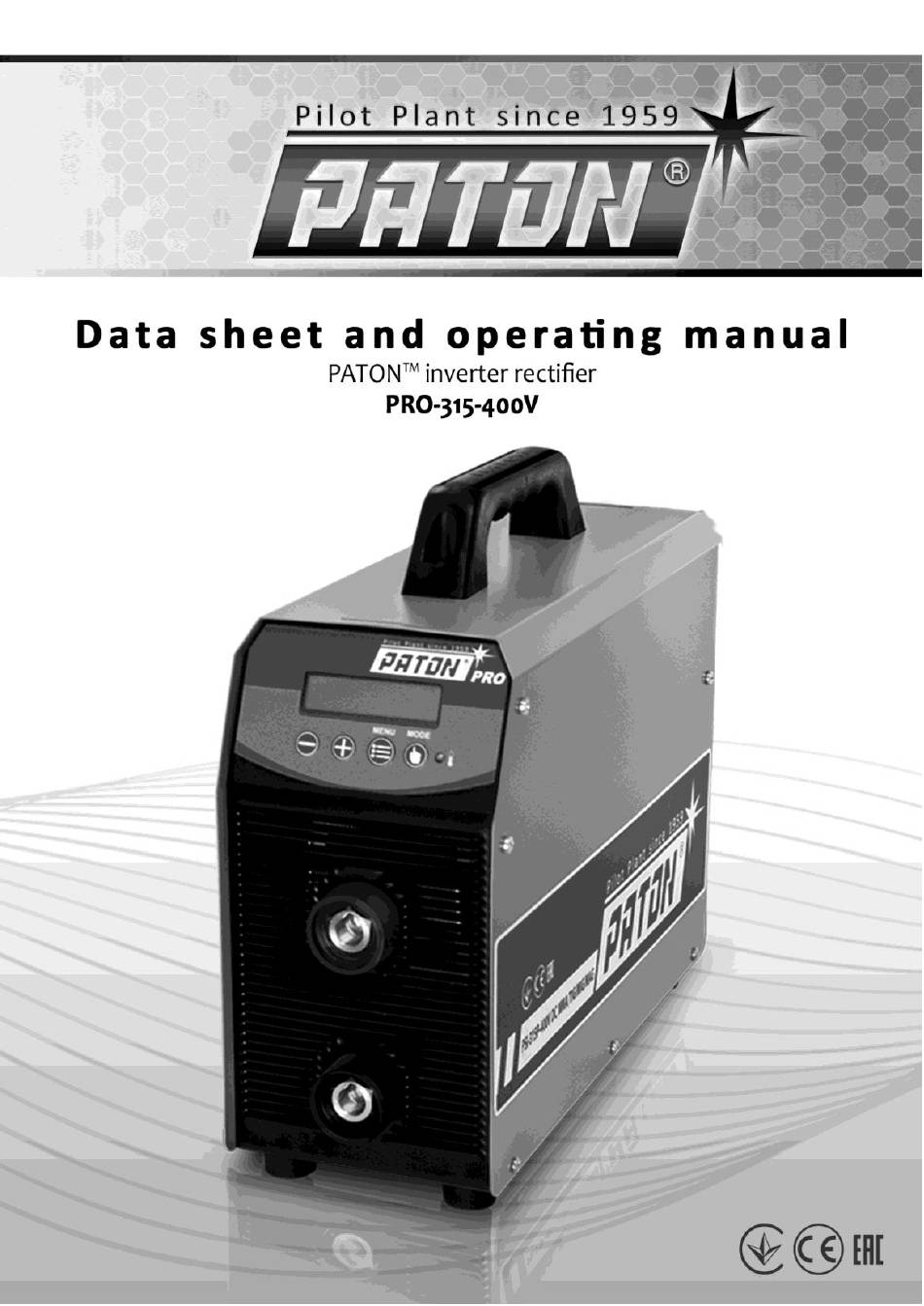

Paton PRO-315-400V Data Sheet And Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-315-400V and is the answer not in the manual?

Questions and answers

Related Manuals for Paton PRO-315-400V

Summary of Contents for Paton PRO-315-400V

  • Page 2 -2 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 3: Table Of Contents

    7. General list and sequence of functions 8. Generator operating mode 9. Care and maintenance 10. Storage rules 11. Transportation 12. Technical details 13. Scope of supply 14. Warranty 15. Safety rules 16. Acceptance certificate -3 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 4 Ø 1.0 not more than Ø 5 mm 220А Ø 6 mm not more than 250А Ø 1.2 mm low-melting 250А not more than Ø 1.4 Ø 6 mm up to 315А -4 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 5: General Provisions

    1. GENERAL PROVISIONS Inverter digital rectifiers PATON PRO-315 are designed for manual metal arc welding (MAW "MMA"), argon-arc welding (ARG "TIG") and semi-automatic welding (SA "MIG/MAG") in the medium of protective gases and mixtures (as a current source in the composition with an external feeder) for direct current. The...
  • Page 6 Recommended power welding cables length for electrode welding of Ø6 mm: Cable length, m Machine model Section, mm Cable brand (one way) 2…11 35 mm КG 1х35 PRO – 315 3…16 50 mm КG 1х50 -6 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 7 3 - Source function selection button in the current welding mode. 4 - Welding mode selection button: а) manual metal arc welding with a stick electrode MAW "MMA"; B) tungsten arc inert gas welding, with non-consumable electrode ARG «TIG»; -7 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 8 ARG “TIG” welding - only the argon torch is connected; c) during semi-automatic welding SA “MIG/MAG” with solid wire - the “ground” cable is connected; d) during semi-automatic welding SA “MIG/MAG” with flux wire - the feeder cable is connected. -8 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 9: Commissioning

    2.3 POWER CONNECTION The welding machine in the standard version is designed for a three-phase mains voltage of 3x400 V (the neutral wire N of the supply mains cannot be used for grounding). -9 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 10: Mains Plug Connection

    Warning! In the MAW “MMA” welding mode, after the main switch is turned to the “I” position, the stick electrode is under voltage. Do not touch the conductive or grounded objects with an electrode, such as, for example, the welding machine -10 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 11: Welding Process Cycle - Мма

    In the advanced settings, you can change both the “Hot Start” [H.St] force and the “Hot Start” [t.HS] time. Without the need, do not overestimate the force and response time of the “Hot Start”, because at high limit values a very strong supply -11 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 12: Arc-Force" Function

    [u.AF]. Without the need, do not overestimate the force and the level of the “Arc-Force”, because at high limit values, especially when welding with thin electrodes (less than Ø 3.2 mm), it affects the “Anti-stick” function activation. -12 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 13: Anti-Stick" Function

    (ANO-21, MP-3). For more comfortable operation with electrodes with a basic type of coating (UONI-13/45, LKZ-70), it is recommended (but not mandatory) to set the slope [BAH] to 1.0 V/A. In turn, for welding by electrodes -13 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 14: Short Arc Welding Function

    “OFF” position, i.e. the function is turned off, and the pulsation frequency [Fr.P] and “duty cycle” [dut] are at the most common values of 5.0 Hz and 50%, respectively . To enable the function, it is enough to set the pulsating power [Po.P] -14 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 15: Tungsten Arc Inert Gas Welding (Tig)

    These parameters are set in different ways in different situations, according to the welder's requirements. The order of changing the value of any function in the current welding mode, see cl. 6.1. 4. TUNGSTEN ARC INERT GAS WELDING (TIG) -15 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 16: Welding Process Cycle - Tig-Lift

    Remember that at high arc currents, a very sharpened electrode melts easily, due to the low heat transfer. "Risks" from sharpening should be located along the electrode axis. 4.1 WELDING PROCESS CYCLE - TIG-LIFT t, s For the order of changing any function value, see cl. 6.1 -16 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 17: Tig-Lift Arc Striking Function

    The weld formation shape and quality depends on the correct function setting, which reduces the likelihood of pores and reduces the structure graininess, which in turn increases the welded joint strength. -17 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 18 These parameters are set in different ways in different situations, according to the welder's requirements. The order of changing the value of any function in the current welding mode, see cl. 6.1. -18 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 19: Semi-Automatic Welding (Sa "Mig/Mag")

    - to connect the power supply plug to the power mains; - to connect the power supply of the wire feeder to the power mains (if a mechanism with independent power is used); - to turn on the feeder with its own switch; -19 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 20 Please, look for it in the specific feed unit operating manual. In the independent wire feed units of the new generation manufactured by PATON™, everything is already provided for, therefore the adaptation will take place with minimal effort. You only need to spent only on fixing the plug in connector 6.

  • Page 21: Welding Process Cycle - Mig/Mag

    By default, the function value is set to 0.1 seconds, i.e. turned off. This value can be changed at your discretion, see the order of change in cl.6.1 -21 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 22: Pulse Voltage Welding Function

    This is a very important condition for the user to accurately estimate the amount of change in heat input to the weld pool, for example, comparing with another main voltage without a pulsed mode. -22 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 23: Machine Setting

    3 is held down, you can see it. After releasing the button, the current value of this function is displayed, which can be changed up or down using buttons -23 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 24: Switch To The Desired Welding Mode

    5) [CVC] current-voltage characteristic slope = 1.4 V/A (default) a) 0.2 ... 1.8 V/A (0.4 V/A increments) 6) [Sh.A] short arc welding = OFF (default) a) On b) OFF 7) [BSn] voltage reduction unit = OFF (default) a) On -24 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 25 5 Hz ... 500 Hz (1 Hz increment) 5) [dut] filling factor (duty cycle) is the percentage of the voltage pulse to the period of the following pulses = 50% (default) a) 20 ... 80% (1% increments) -25 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 26: Generator Operating Mode

    - If there is a lot of dust, clean the cooling system channels by hand. 10. STORAGE RULES The deactivated and packaged source should be stored in storage conditions 4 according to GOST 15150-69 for a period of 5 years. -26 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 27: Transportation

    1. The power source of the welding arc with a network cable – 1 pc; 2. Strap for carrying on shoulder – 1 pc; 3. PATON™ corporate plastic case – 1 pc; 4. Welding cable with Binzel™ electrode holder, 3m – 1 pc;...

  • Page 28: Warranty

    14. WARRANTY Pilot plant of welding equipment of the Pilot Plant of Welding Equipment named after Ye.O. Paton guarantees the correct power source operation if the consumer complies the operation conditions, storage and transportation. Free warranty service is not available for mechanical damage to the welding machine! The warranty period is 3 years from the date of sale, affixed to the passport.
  • Page 29 - if possible, do not install the welding machine directly on an electrically conductive floor covering or desktop, use insulating gaskets. PRECAUTIONARY MEASURES UNDER NORMAL CONDITIONS At least once a week you should check the machine for external damage and the functioning of safety devices. -29 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 30 -30 - PATON PRO-315 MMA/TIG/MIG/MAG...

  • Page 31: Acceptance Certificate

    16. ACCEPTANCE CERTIFICATE Rectifier arc inverter "PATON PRO-315" Serial number В ___________________________ P recognized as serviceable. Date of sale ”_____” _________________ 20____ Stamp _____________________ (seller's signature) ================================================================== -31 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 32 Date of acceptance for repair ”_____” _________________ 20 ____ __________________ (signature) Signs of malfunction: _________________________________________________ The reason: ____________________________________________________________________ ____________________________________________________________________ ================================================================ Date of acceptance for repair ”_____” _________________ 20 ____ __________________ (signature) Signs of malfunction: _________________________________________________ The reason: ____________________________________________________________________ ____________________________________________________________________ -32 - PATON PRO-315 MMA/TIG/MIG/MAG...
  • Page 33 Date of acceptance for repair ”_____” _________________ 20 ____ __________________ (signature) Signs of malfunction: _________________________________________________ The reason: ____________________________________________________________________ ____________________________________________________________________ ================================================================ Date of acceptance for repair ”_____” _________________ 20 ____ __________________ (signature) Signs of malfunction: _________________________________________________ The reason: ____________________________________________________________________ ____________________________________________________________________ -33 - PATON PRO-315 MMA/TIG/MIG/MAG...
