Fig. 1
BuckArrester
Mobile Fall Arrester
(MFA)
Integral Attachment
Carabiner (Z359.12)

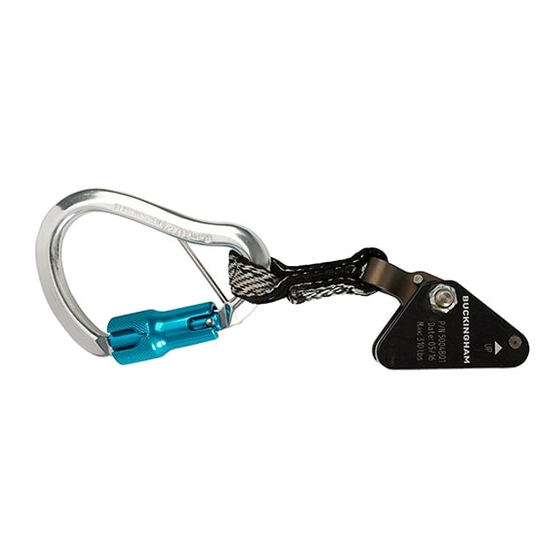

The PN 5004BQ2 BuckArrester Mobile Fall Arrester (MFA) is one component of a Lifeline system to be used with Buckingham PN
PN RFPBASIC and PN RFPDELUXE.
applicable requirements of OSHA 1926.502.
Note: hardware / material colors may vary from that shown.
Attaching the PN 5004BQ2 BuckArrester Mobile Fall Arrester (MFA) to the Lifeline:
Ensure the UP arrow on the frame of the BuckArrester is facing the top of the ladder and up the lifeline (Fig. 1 – 2).
1.
2.
Rotate the cam up into the open position (Fig. 3).
Insert the tail of the lifeline through the top of the BuckArrester channel between the frame and the cam (Fig. 4 – 5).
3.
Top of the
Ladder / Lifeline
Fig. 2
5004BQ2 BuckArrester_112917 (Rev. 11/08/18)
PN 230425
BUCKINGHAM MFG.
PN 5004BQ2 BuckArrester Mobile Fall Arrester (MFA)
Ladder Positioning & Harness Attachment
Instructions / Warnings
Integral Lanyard
(with Impact load indicator)
This product when used by an individual with a weight of 350 lbs. (fully equipped) meets
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Fig. 3
Shoulder Bolt
Locking Nut
Cam Lever
Fig. 4
UP Arrow
(Must Point to Anchor)
BuckArrester
(Patent Pending)
Fig. 6
Fig. 5
(MFA)
Frame
128R,
1 of 4
