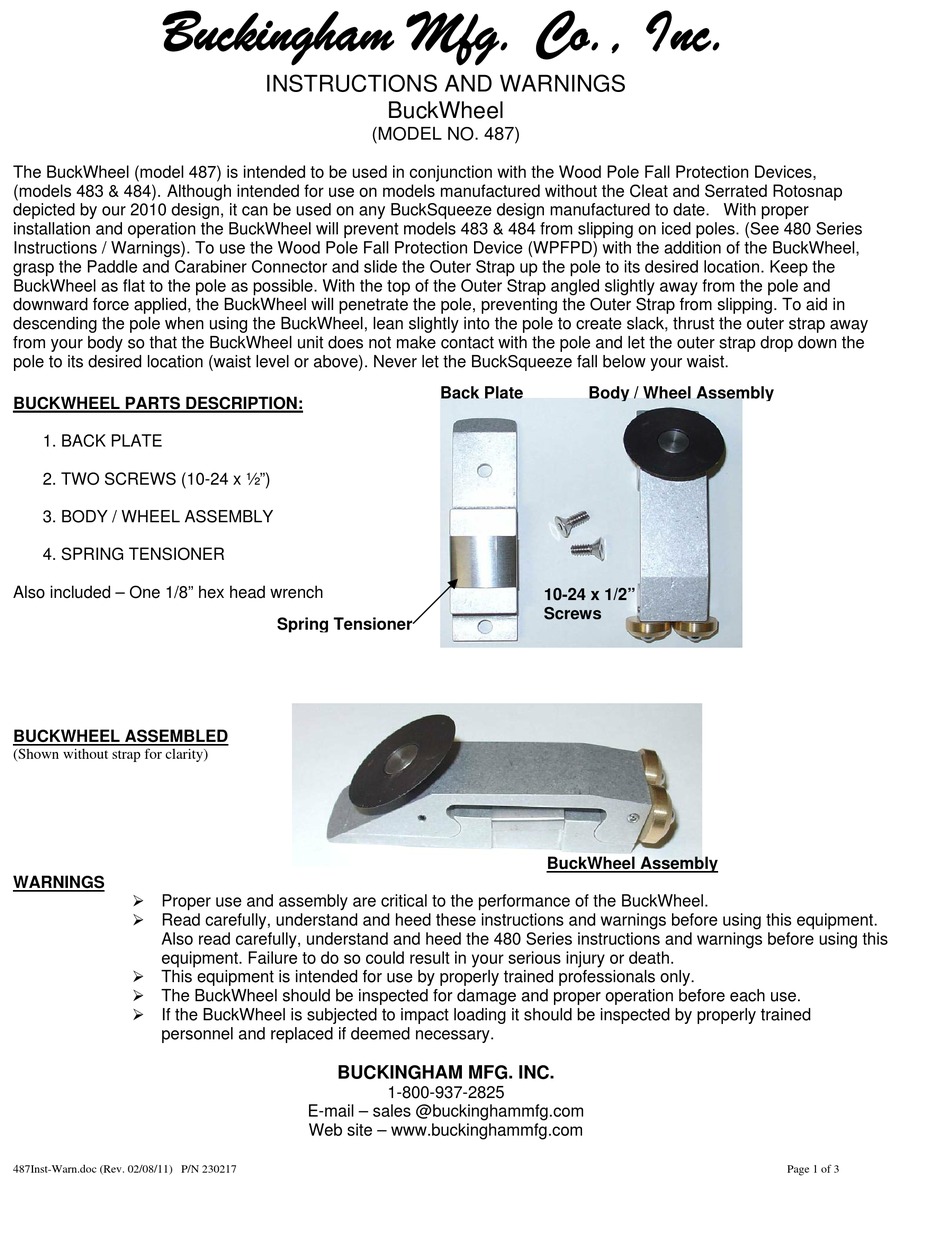

Buckingham BuckWheel 487 Instructions

Buckingham Mfg. Co., Inc.
The BuckWheel (model 487) is intended to be used in conjunction with the Wood Pole Fall Protection Devices,
(models 483 & 484). Although intended for use on models manufactured without the Cleat and Serrated Rotosnap
depicted by our 2010 design, it can be used on any BuckSqueeze design manufactured to date. With proper
installation and operation the BuckWheel will prevent models 483 & 484 from slipping on iced poles. (See 480 Series
Instructions / Warnings). To use the Wood Pole Fall Protection Device (WPFPD) with the addition of the BuckWheel,
grasp the Paddle and Carabiner Connector and slide the Outer Strap up the pole to its desired location. Keep the
BuckWheel as flat to the pole as possible. With the top of the Outer Strap angled slightly away from the pole and
downward force applied, the BuckWheel will penetrate the pole, preventing the Outer Strap from slipping. To aid in
descending the pole when using the BuckWheel, lean slightly into the pole to create slack, thrust the outer strap away
from your body so that the BuckWheel unit does not make contact with the pole and let the outer strap drop down the
pole to its desired location (waist level or above). Never let the BuckSqueeze fall below your waist.
BUCKWHEEL PARTS DESCRIPTION:
1. BACK PLATE
2. TWO SCREWS (10-24 x ½")
3. BODY / WHEEL ASSEMBLY
4. SPRING TENSIONER
Also included – One 1/8" hex head wrench
BUCKWHEEL ASSEMBLED
(Shown without strap for clarity)
WARNINGS
 Proper use and assembly are critical to the performance of the BuckWheel.
 Read carefully, understand and heed these instructions and warnings before using this equipment.
Also read carefully, understand and heed the 480 Series instructions and warnings before using this
equipment. Failure to do so could result in your serious injury or death.
 This equipment is intended for use by properly trained professionals only.
 The BuckWheel should be inspected for damage and proper operation before each use.
 If the BuckWheel is subjected to impact loading it should be inspected by properly trained
personnel and replaced if deemed necessary.
487Inst-Warn.doc (Rev. 02/08/11) P/N 230217
INSTRUCTIONS AND WARNINGS
BuckWheel
(MODEL NO. 487)
Spring Tensioner
BUCKINGHAM MFG. INC.
1-800-937-2825
E-mail – sales @buckinghammfg.com
Web site – www.buckinghammfg.com
Back Plate Body / Wheel Assembly
10-24 x 1/2"
Screws
BuckWheel Assembly
Page 1 of 3
