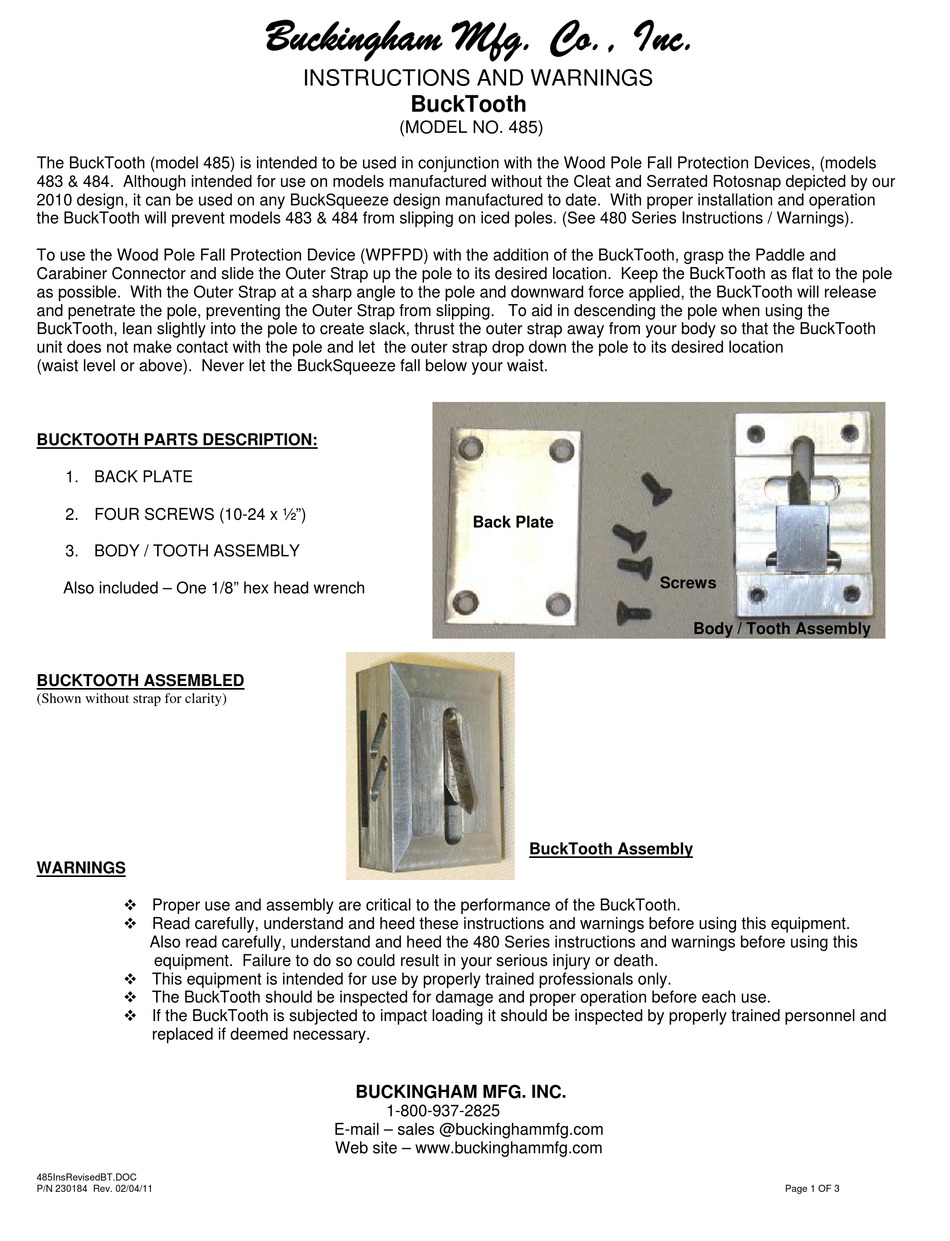

The BuckTooth (model 485) is intended to be used in conjunction with the Wood Pole Fall Protection Devices, (models
483 & 484. Although intended for use on models manufactured without the Cleat and Serrated Rotosnap depicted by our
2010 design, it can be used on any BuckSqueeze design manufactured to date. With proper installation and operation
the BuckTooth will prevent models 483 & 484 from slipping on iced poles. (See 480 Series Instructions / Warnings).
To use the Wood Pole Fall Protection Device (WPFPD) with the addition of the BuckTooth, grasp the Paddle and
Carabiner Connector and slide the Outer Strap up the pole to its desired location. Keep the BuckTooth as flat to the pole
as possible. With the Outer Strap at a sharp angle to the pole and downward force applied, the BuckTooth will release
and penetrate the pole, preventing the Outer Strap from slipping. To aid in descending the pole when using the
BuckTooth, lean slightly into the pole to create slack, thrust the outer strap away from your body so that the BuckTooth
unit does not make contact with the pole and let the outer strap drop down the pole to its desired location
(waist level or above). Never let the BuckSqueeze fall below your waist.
BUCKTOOTH PARTS DESCRIPTION:
1. BACK PLATE
2. FOUR SCREWS (10-24 x ½")
3. BODY / TOOTH ASSEMBLY
Also included – One 1/8" hex head wrench
BUCKTOOTH ASSEMBLED
(Shown without strap for clarity)
WARNINGS
Proper use and assembly are critical to the performance of the BuckTooth.
Read carefully, understand and heed these instructions and warnings before using this equipment.
Also read carefully, understand and heed the 480 Series instructions and warnings before using this
equipment. Failure to do so could result in your serious injury or death.
This equipment is intended for use by properly trained professionals only.
The BuckTooth should be inspected for damage and proper operation before each use.
If the BuckTooth is subjected to impact loading it should be inspected by properly trained personnel and
replaced if deemed necessary.
485InsRevisedBT.DOC
P/N 230184 Rev. 02/04/11
Buckingham Mfg. Co., Inc.
Instructions AND WARNINGS
BuckTooth
(MODEL NO. 485)
BUCKINGHAM MFG. INC.
1-800-937-2825
E-mail – sales @buckinghammfg.com
Web site – www.buckinghammfg.com
Back Plate
BuckTooth Assembly
Screws
Body / Tooth Assembly
Page 1 OF 3
Advertisement
Table of Contents
Related Manuals for Buckingham BuckTooth 485
Summary of Contents for Buckingham BuckTooth 485
- Page 1 Buckingham Mfg. Co., Inc. INSTRUCTIONS AND WARNINGS BuckTooth (MODEL NO. 485) The BuckTooth (model 485) is intended to be used in conjunction with the Wood Pole Fall Protection Devices, (models 483 & 484. Although intended for use on models manufactured without the Cleat and Serrated Rotosnap depicted by our 2010 design, it can be used on any BuckSqueeze design manufactured to date.
- Page 2 INSTRUCTIONS To Install the BuckTooth to the Outer Strap of the WPFPD: A. Remove the four screws from the BuckTooth assembly. B. Remove the Back Plate to expose the strap slot. C. Mount the Body / Tooth Assembly to the center of the Outer Strap by placing the Outer Strap in the strap slot of the Body / Tooth Assembly (Fig.
- Page 3 If any evidence of wear / deterioration as outlined or any unusual conditions not outlined above be observed, or you have reasonable doubt about a particular condition, immediately remove the equipment from service and notify your Supervisor, Safety Director or contact Buckingham Mfg. (1-800-937-2825) for clarification. CLEANING The BuckTooth may be cleaned by using a cotton swab, limited air pressure or dipping it into a container of water to remove fine particles and any foreign matter which may enter slots and prevent proper function.
