BUCKINGHAM MFG.
P/N's RFPDELUXE; RFPBASIC; RFPREDIRECT
Instructions / Warnings

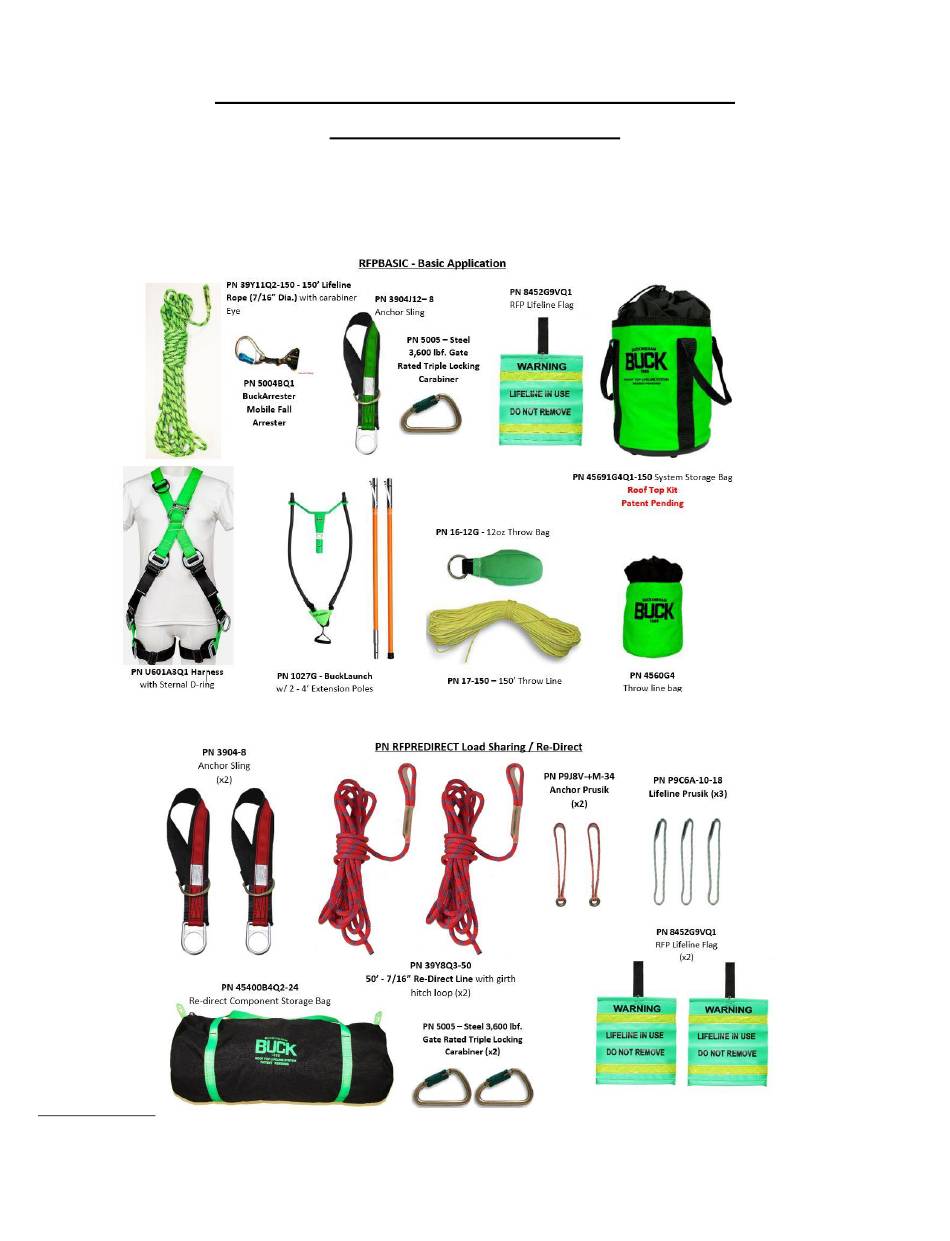

The Buckingham P/N RFPBASIC, P/N RFPREDIRECT and Patent Pending P/N RFPDELUXE (consists of P/N RFPBASIC [Fig. 1] and P/N
RFPREDIRECT [Fig. 2]) provides a temporary system that allows the user to set a lifeline and Re-Direct lines from the ground to keep
them 100% Fall Protected while ascending a ladder, working on the ladder or elevated surface and descending the ladder.
Fig. 1
Fig. 2
Note: hardware / material colors and or lengths may vary from that shown.
RFP Inst -Warn (Rev. 02/11/19)
Page 1 of 14
P/N 230418
